Specifications
Rotary axis cnc router1. water cooling spindle 2.2kw
2. DSP control system
3. CE

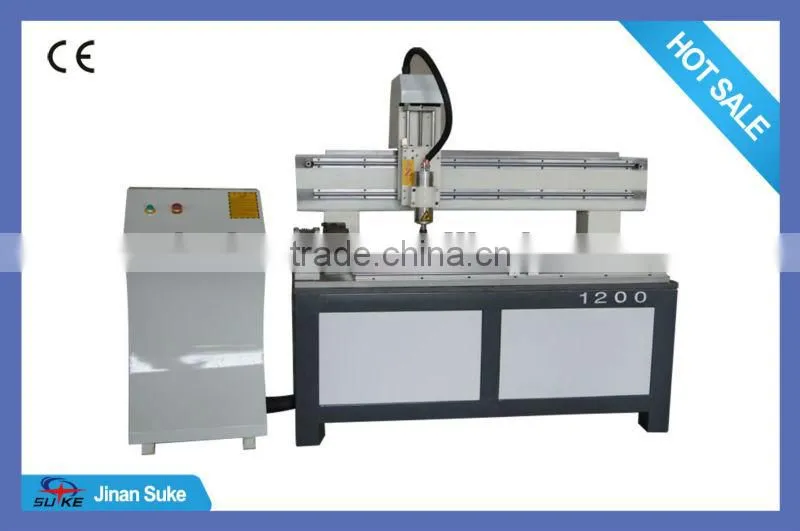

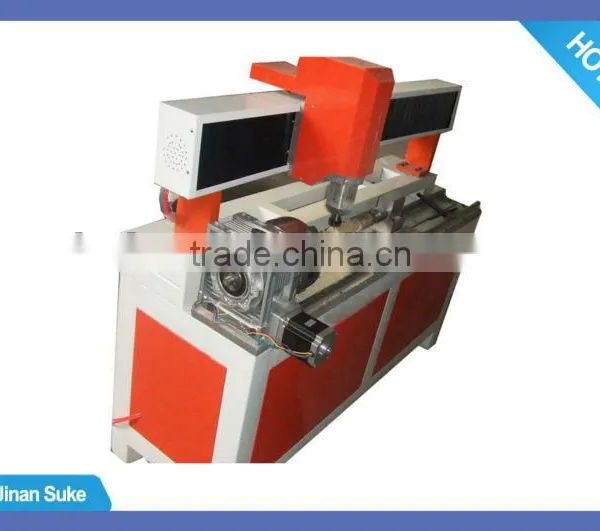

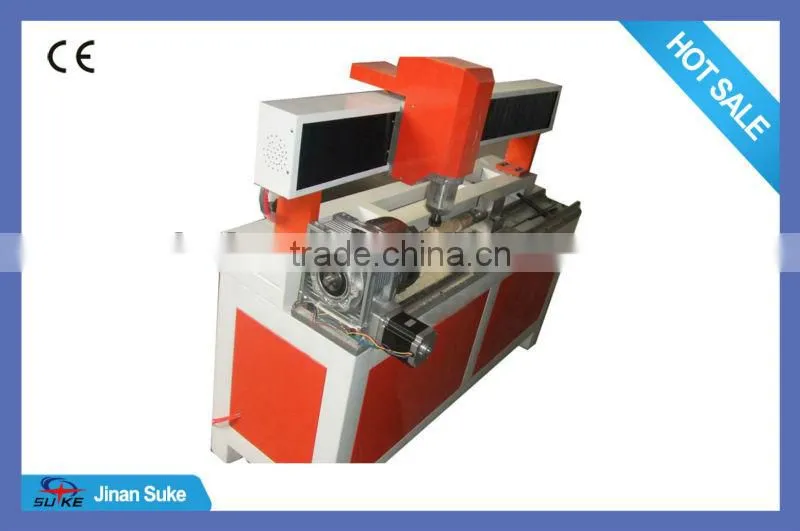

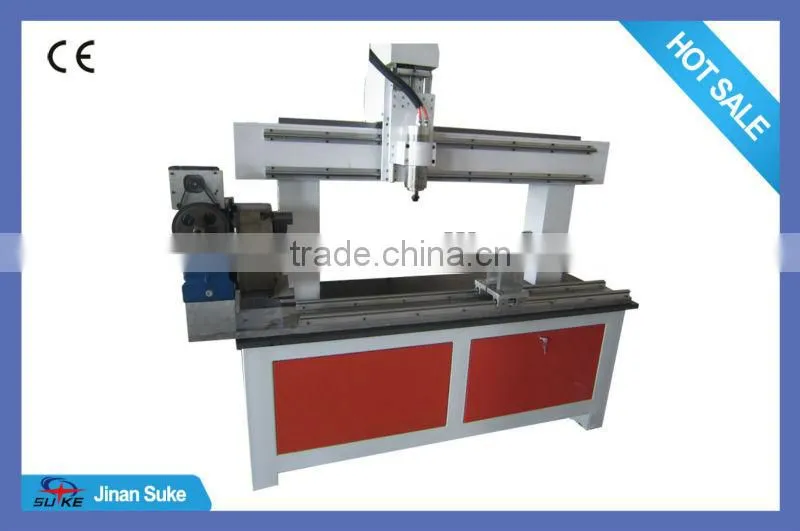

Rotary axis cnc router
Scope of application
Cylindrical or three-dimension engraving on stone, wood, metal and advertising industry.
Brief Introduction
This series is at the service of three-dimension al cylinder engraving cylinder engraving. Machine configuration is changed from materials. Ordinary series machine can also engrave cylinder by rotary axis added to.
Technical Parameter
Model |
SK1200 |
Working area (X,Y,A mm) |
1200x0xD200 |
Machine structure |
Steel structure |
Working holding |
By chuck |
Overall Dimensions (mm) |
1750*700*1750 |
Precision (mm) |
0.07 |
Positioning accuracy(mm) |
0.02 |
Repeatability(mm) |
0.02 |
Idling Speed(mm/min) |
6,000 |
Working Speed (mm/min) |
4,000 |
Spindle |
2.2 kw water cooling (0~24000rpm) |
Available Tools (mm) |
Diameter 3.175-12.7mm |
Drive system |
Stepper motor |
Working Voltage |
AC380V±30V,50HZ |
Command code |
G code (*.NC, mmg,*.u00,etc)*.eng |
Control System |
DSP System/NcStudio |
Compatible Software |
Compatible with any software generating G code file in Windows 98/XP/7 |

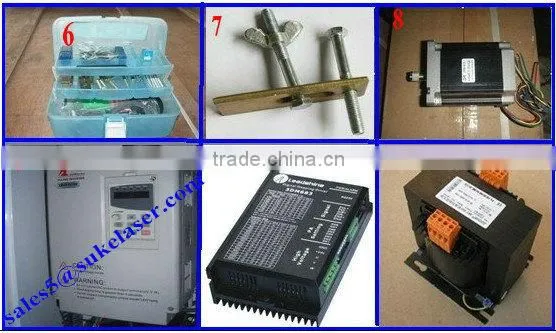

Spare parts
Products Feature:
1. 360 degree cylinder engraving expands the application of CNC router and satisfies the demands on furniture and gift making industry.

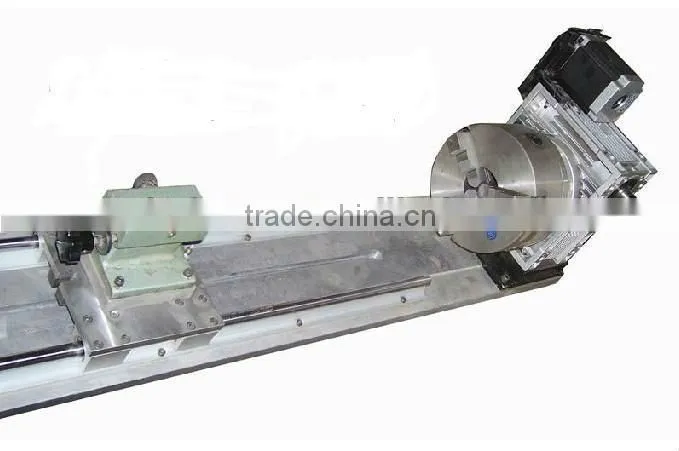

2. Cylinder material is fixed by chuck thought three holders, force exerted uniformly and effectively and center positioned accurately so that the working accuracy is guaranteed.
3. Rotary’s diameter and length can be adjusted.
4. Bi-directional orienting guides provides high positioning accuracy.
5. Restoring function enable the machine continue to work after sudden stop, such as accident tool breaking.

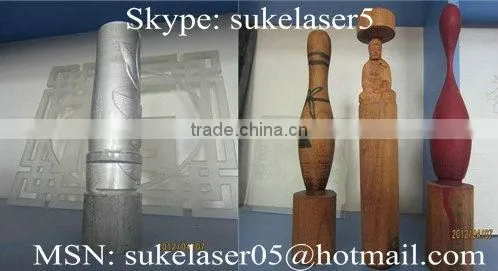

Sample Display
Warranty terms
(1) 1 year for the whole machine
(2) Detail manual and video to guide the uses how to use the machine and maintenance, also supply the specification settings for the speed and power to engrave or cut various material.
(3) If you meet the problems, we can solve it with pictures, videos etc .
(4) Lifelong and fast technical guide and solution within 24 hours by email and web,msn or Skype!
