Specifications
3d servo motor cnc router 15301.1500*3000mm work area
2. 4.5 kw spindle
3.3D engraving with Type3
4. Factory
3d servo motor cnc router 1530
Applicable Materials:
Wood products processing: Sewing machine table, electrical counter table, sports equipment
Furniture decoration industry: A large area flat plate engraving, wood, panel furniture carving, wood art murals, wood cabinet doors carving.
Musical instrument Industry: Instrument three-dimensional surface engraving, shape cutting.
Electronic Industry: Circuit board, insulation material, LED display screen.
Key Feature
1. X,Y,Z axis all are square guide.
2. Rack and gear transmission.
3. Square tube lathe bed with more solid structure and strong stability because of low center of gravity.
4. DSP hand-held control system , with U disk available and no need of computer , provides high independence and great convenience for operation.
5. Vacuum table in six districts can fix material of different sizes effectively and easily and vacuum pump of strong adsorption in crease the performance up to 30steter/h
6. High precision linear square tracks , with ball sliders in two arrays and for rous, makes large load bearing and stable running.
7. High power spindle with good rigidity not only demonstrates superior performance in woodworking application, is also propitious to engrave and cut on cooper , aluminum, iron and other materials.
Technical Parameter
Model |
SK1530 |
X, Y working area |
1500mmx3000mm |
Z working area |
200mm |
Rotary axis |
Diameter 20cm Length 2.5m (other size can be customized ) |
Machine size |
3650*2300*1650mm |
Precision |
0.07mm |
Position accuracy |
0.02mm |
Repeatability |
0.02mm |
Idling speed |
25,000mm/min |
Working speed |
15,000mm/min |
Spindle |
4.5kw water cooling (0-24000mm/min) |
Available Tools |
Diameter 3.175-12.7mm |
Driver system |
Stepper motor |
Working Voltage |
AC380V, 50HZ |
Command Code |
G code (*.NC,mmg,*.u00,etc)*.eng |
Control System |
DSP system |
Compatible Software |
Compatible with any software generating G code file in Windows 98/XP/7 |
Gross Weight |
1500kg |
Optional parts: |
1) Dust-collector 2) Vacuum system 3) Rotary axis 4) Water-tank |
Sample Display
Warranty term and After-sales service :
1. 1 year for the whole machine
2. Detailed manual and video to guide the uses how to use the machine and maintenance, also supply the specification settings for the speed and power to engrave or cut various material.
3. If you meet the problems, we can solve it with pictures, videos etc.
4. Lifelong and fast technical guide and solution within 24 hours by email and web, msn or Skype!

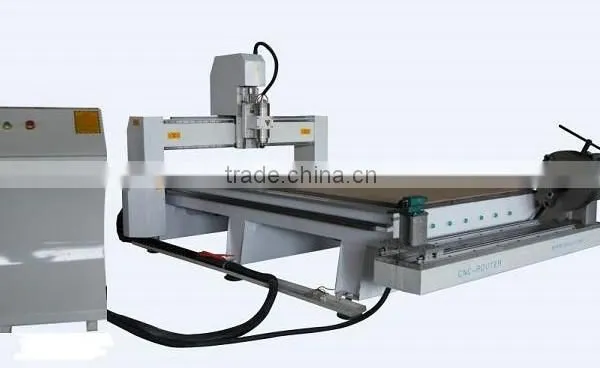

Machine Photos
If any interesting or question, please be free to contact us!
We will reply to you within 24 hours (except non-working day)
Skype: sukelaer5
