Help CenterCNC Router Stone Engraving Machine 2020
Related Products
Specifications
CNC router stone engraving machine 20201. 6 pcs spindle
2. DSP control systerm
3. 3kw water-cooled spindle
4. CE
CNC router stone engraving machine 2020
Product Overview
Multi-heads CNC routers are suitable for high-volume small workpieces processing. Multiple heads can not only process at the same time to improve efficiency, also work alone. Detached heads or prop plate head is alternative for your need.
Technical Specification
Model |
SK2020 stone cnc router |
Working size (x*y*z mm) |
2000*2000*300 |
Machine Structure |
Thick-walled square tube lathe bed and T-slot table of sectional material |
Working holding |
By clamps |
Precision(mm) |
0.07 |
Positioning Accuracy (mm) |
0.02 |
Repeatability (mm) |
0.02 |
Idling Speed (mm/min) |
9,000 |
Working Speed (mm/min) |
5,000 |
Spindle |
3kw water-cooling (0~24000rpm) |
Available Tools (mm) |
Φ3.175~Φ12.7 |
Drive System |
Stepper motor |
Working Voltage |
AC380V±30V, 50HZ |
Command Code |
G code (*.nc, *.mmg, 8.u00, etc.),*.eng |
Control System |
NcStudio |
Compatible Software |
Compatible with any software generating G code file in Window98/ xp/7 |

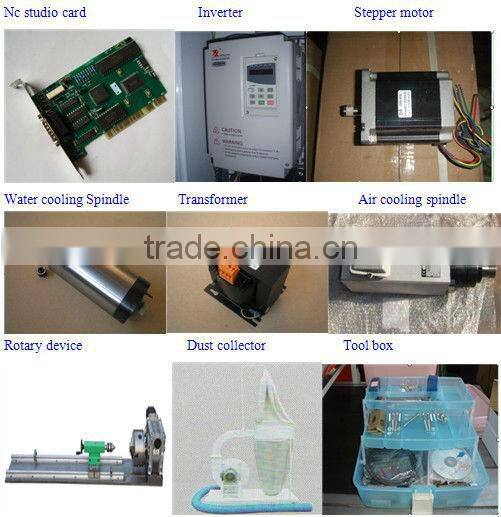

Spare Parts
Product Features stone cnc router SK2020
1. Multiple spindles can engrave same design simultaneously to improve processing speed greatly and complete the work of several machines.
2. Products stay in coherence and high quality during mass produce.
3. Single spindle can work independently for small processing volume to control production costs effectively and reasonably.
4. Appropriate and reasonable configuration is adjusted to fit material and work request.
5. Numbers and operate mode of spindle can be customized.
Sample Display
CE certificate
More models for your reference of our CNC router/ stone cnc router
Model |
Working size |
Standard spindle power---water cooling |
SK3030-I |
30x3cm |
800w |
SK3030-II |
30x30cm |
800w |
SK6090 |
60x90cm |
1.5kw (1.5kw, 2.2kw is optional) |
SK1212 |
120x120cm |
1.5kw (1.5kw, 2.2kw.3kw is optional) |
SK1218 |
120x180cm |
1.5kw (1.5kw, 2.2kw.3kw is optional) |
SK1224 |
120x240cm |
1.5kw (1.5kw, 2.2kw.3kw is optional) |
SK1325-I |
130x250cm |
2.2kw |
SK1325-II |
130x250cm |
3kw |
SKM25 |
130x250cm |
4.5kw |
SK1530 |
150x300cm |
4.5kw |
SK9015 |
90x150cm |
5.5kw |
SK1318 |
130x180cm |
5.5kw |
SK1325 |
130x250cm |
5.5kw |
|
Note: Vacuum table, rotary axis, water sink, multi-heads are available And customize is accepted according your needs | ||

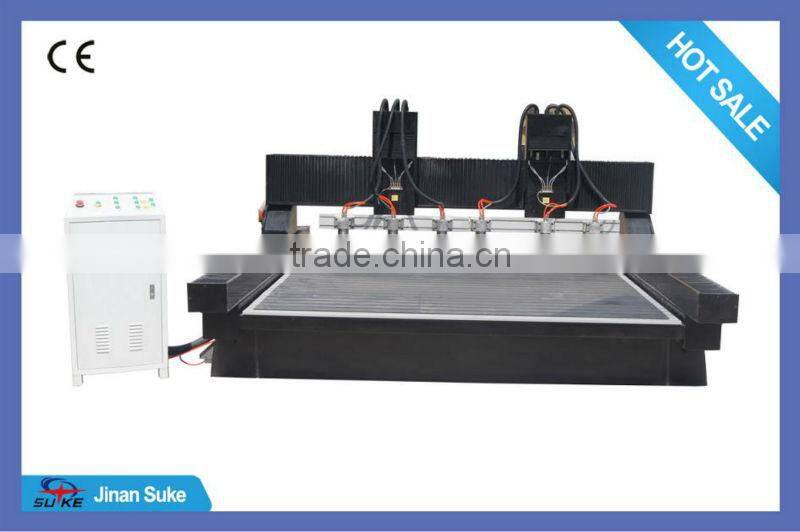

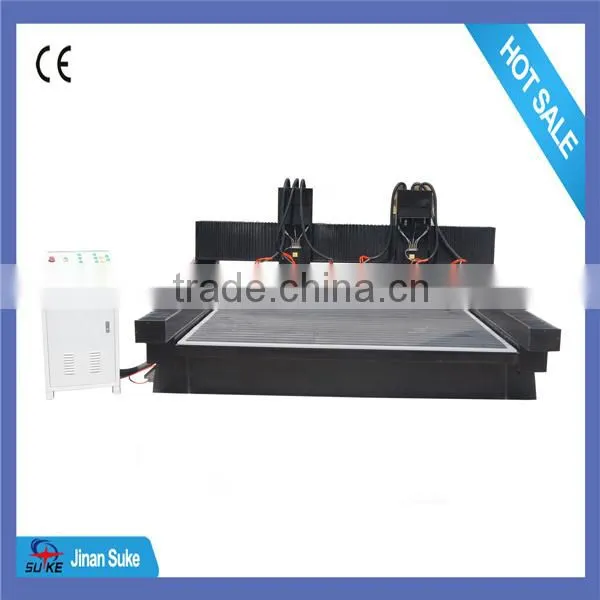

Machine photo
For further information, please don't hesitate to contact us!
