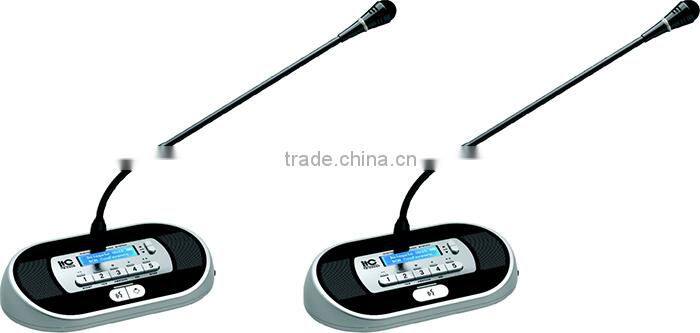

Chairman Unit Digital Interpretation gooseneck microphone
* The microphone adopt 48KHZ sampling rate, higher than the CD sound quality, the voice is clear and bright. Internal DSP audio processing, there is no low frequency sound.
* Support timekeeping of speech (charged according to speech time).
* Delegate unit has applied for speech function, the chairman unit can approve the applicant.
* Internal feedback inhibition function, can effectively prevent the noise.
* The Microphone has the voice control function, can intelligent turn on the microphone.
* 5 Section EQ regulating function, different sound effects can be adjusted according to the characteristics of the speaker's voice, to achieve perfect effect.
* The chairman has the priority function, can turn off the Microphone of delegate units during speech.
* 4.3 inch TFT true color touch screen, simple operation, friendly use function.
* With 100M network transmission to realize hand in hand cascade, Sound quality will not have any effect in long distance transmission.
* With functions of IC CARDS signed in can show participants' unique characteristics.
* Support the vote, election, rating function, chairman unit can set vote, check-in. can do data statistics without PC.
* With the function of electronic table stands, with full view large LCD to shows the person's name, can be quickly update the display information through PC.
* Can choose receive 31 + 1 channel language.
* The microphone button design adopts advanced P + R buttons design, to ensure the venue without tapping sound during operation.
Model |
TS-0206 |
TS-0206A |
Microphone types |
Heart-shaped directivity electret |
Heart-shaped directivity electret |
Microphone frequency response |
100Hz ~ 16KHz |
100Hz ~ 16KHz |
Input impedance |
1KΩ |
1KΩ |
The sensitivity |
- 46 dBV/Pa |
- 46 dBV/Pa |
SNR |
> 80 dB |
> 80 dB |
THD |
< 0.1% |
< 0.1% |
Maximum power consumption |
2.5W |
2.5W |
Headset load |
32Ω |
32Ω |
The headset volume |
Maximum 40 mW |
Maximum 40 mW |
Headphone output interface |
3.5 mm mono socket |
3.5 mm mono socket |
The connection way |
Special cable core (6 core) |
Special cable core (6 core) |
The following specification |
IEC 60914 |
IEC 60914 |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
