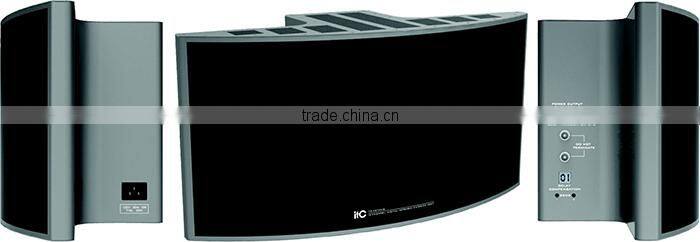

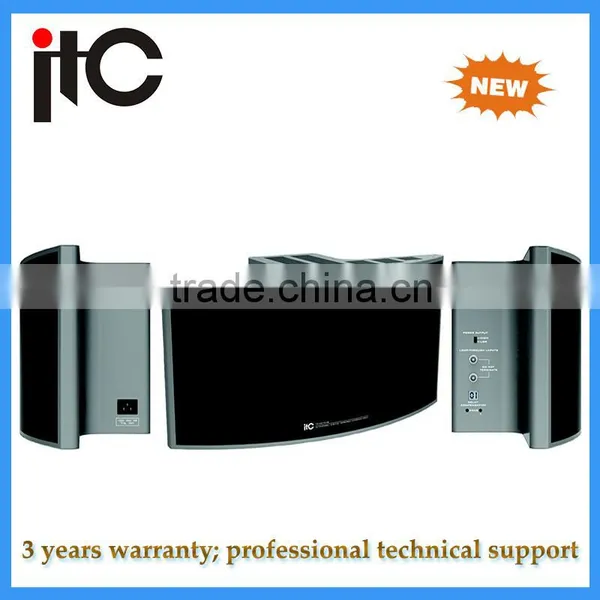

TS-0670HS IR Radiator Infrared Wireless Simultaneous Interpretation System
TS-0670HS infrared radiation Radiator is a high power infrared radiation equipment, used to receive the infrared emission host carrier signal, the carrier signal through the infrared emission.
Support hand in hand and can be connected 30 IR Radiator at the same time.
* Super emissive power, the maximum distance can reach 40 meters; cascade can be realized 500m transmission distance.
* Launch Angle: + 135°.
* Compensation functions of cable delay.
* The standby function: IR Radiator standby when the IR Radiator without signal input or output.
* The emission intensity can reduce by half. Reduce the signal power to convenient use in small space.
* Adopt the arc structure with big angle and wide coverage.
Model |
TS-0670HS |
Power Supply |
~110V/60Hz or ~230V/50Hz |
The power rating |
36W |
Frequency range |
2 ~ 6 MHz |
The Infrared Radiation Power |
33 w |
RF output impedance |
75Ω |
RF input |
100MV - 3V 10 KΩ |
Gain control |
AGC automatic gain control |
Automatic threshold control |
100MV RF signal to start |
Standby power consumption |
3W |
Measurement |
478 x 228 x 208mm |
Weight |
7.0 Kg |
Color |
Black |
IR Radiator

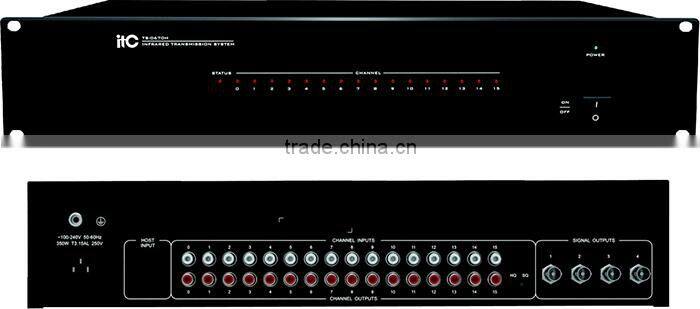

Controller
Interpreter Unit

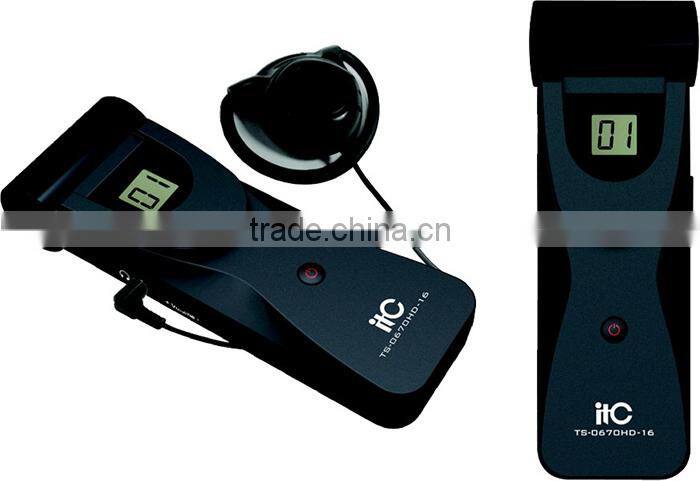

Infrared Receiver Unit

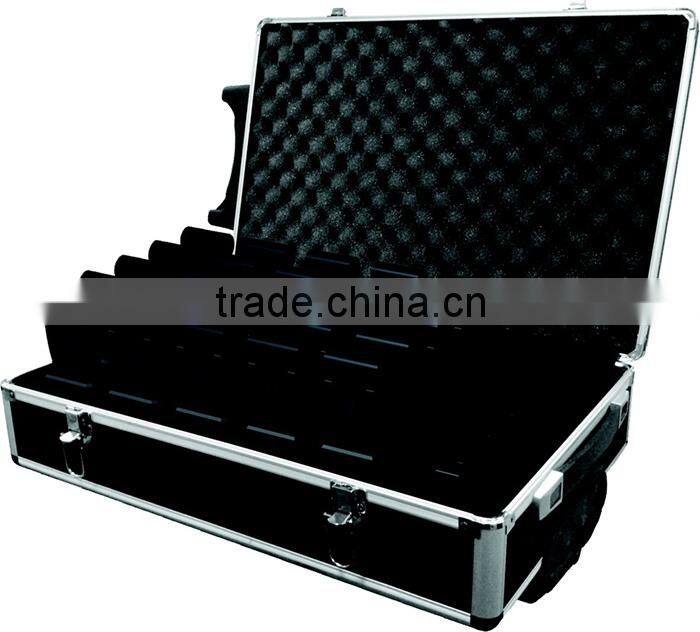

Battery Charging Unit
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
