Type Audio Conference System, Video Conference System
Function Translation
Simultaneous Interpretation Yes
Place of Origin Guangdong, China
Brand Name ITC
Model Number TS-0670HY

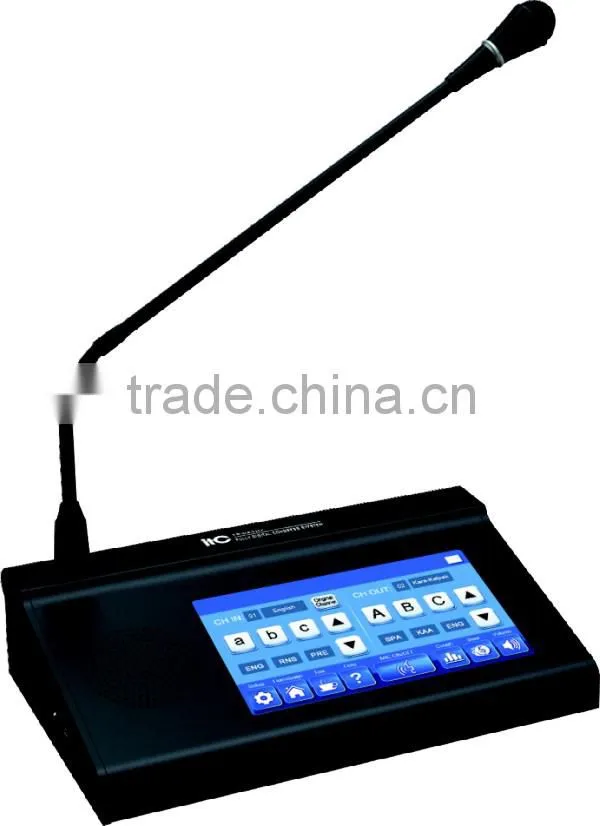

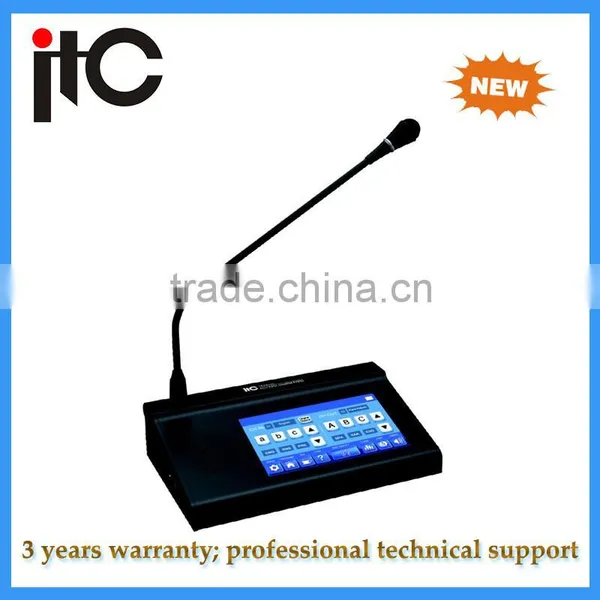

TS-0670HY Digital Conference System Interpreter Unit

Features

 * High digital audio technology microphone adopt 48KHZ sampling rate, higher than the CD sound quality, the voice is clear and bright. Internal DSP audio processing, there is no low frequency sound.

* 7-inch touch-screen, UI interface is beautiful and elegance.



* The heart-shaped directivity capacitive pick up with double color indicator light, it is turn to red color during speaking, with rotary knob plug Microphone bar.



* A magnetic loudspeaker and headphone jack. Support Headphone and Microphone bar to pickup.



* Support text message ,tea application, HELP (HELP) function.



* Have cough elimination function, have remind the voice speed (SLOW).



* Support timekeeping of speech (charged according to speech time).



* Can preset the language of each channel.



* 31 kinds of languages can be translated at the same time, an interpreter room can installed within 6 machine translation units.



* Can be preset 3 fast input channels with a corresponding shortcut keys (a/b/c).



* Selection button of input channel, and can choose easily in all the input language channel.



* Preset 3 Rapid output channel, there is a corresponding shortcut keys (A/B/C).



* Output channel selection button, can choose easily in all the input language channel.



* Support lock between interpreters and preemption mode.



Model

TS-0670HY

Types

Heart-shaped directivity electrets.

Frequency Response

100Hz~15 KHz

Input Impedance

1 KΩ

Sensitivity

- 46 dBV/Pa

SNR

> 80dB

THD

< 0.1%

Maximum Power Consumption

7W

Headset load

32Ω

Headset Output Interface

3.5mm mono socket

Connection Mode

Special cable core (6 core)

Following Specification

IEC 60914

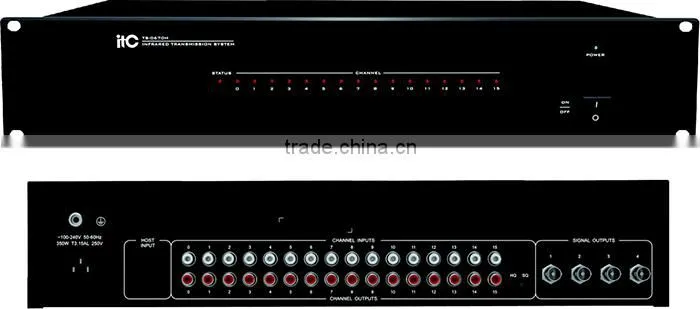

IR Radiator









Controller







Interpreter Unit

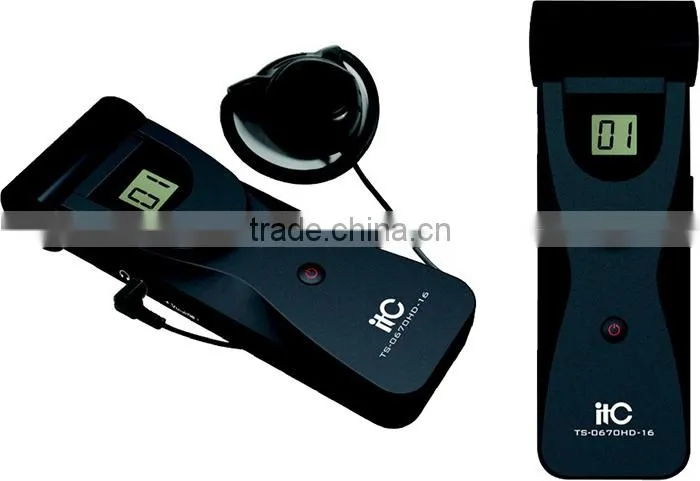

Infrared Receiver Unit

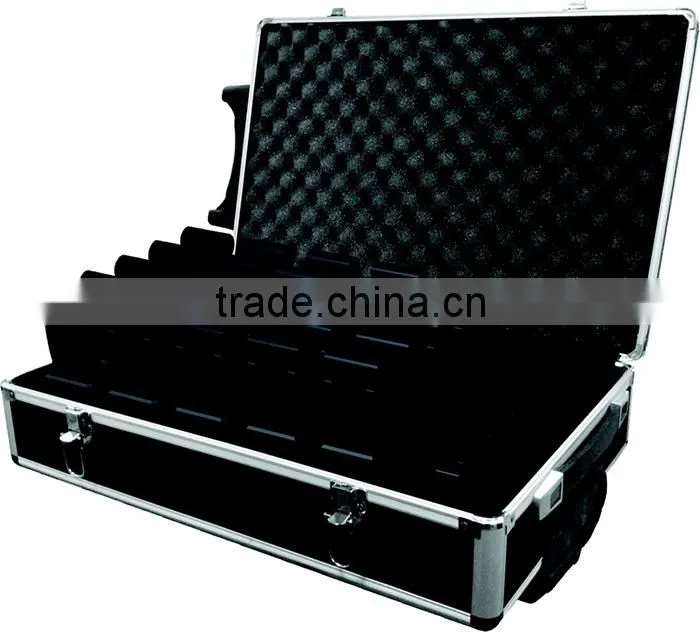

Battery Charging Unit





Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

TS-0670HY Digital Conference System Interpreter Unit



Technical Support
  • Well-trained sales team for sales and basic technical service.
  • New product promotion and seminar for all employees.
  • Two English spoken technician provide online after sales service.
  • Online system software demo and configuration is available.
  • 30 system consultants and 10 designers to make drawing and BOQ for each tender.
  • Design and BOQ response to customer within 48 hours.
  • PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
  • Technical documents could be downloaded from website
