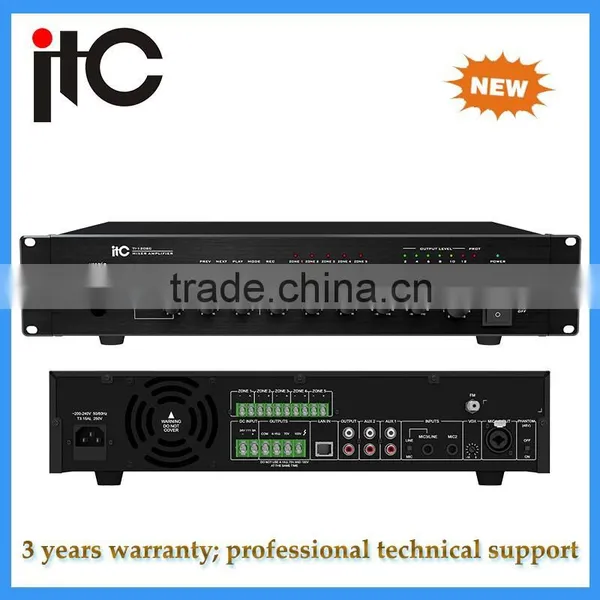

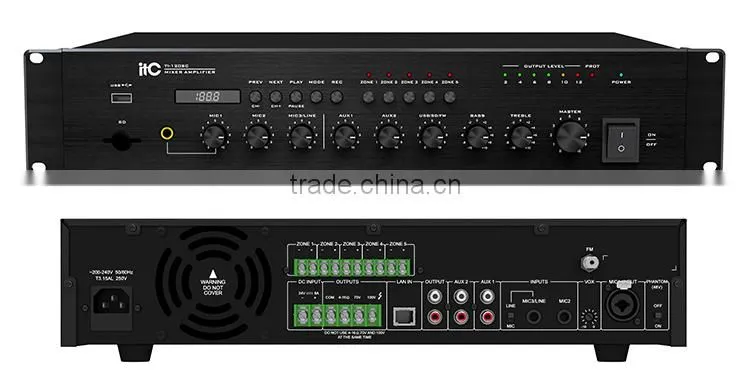

5 Zone USB Power Echo Karaoke Mixer Amplifier
5 Zone USB power echo karaoke mixer amplifier
* MP3 function (with USB, SD, FM), digital tube display. With line recording function.

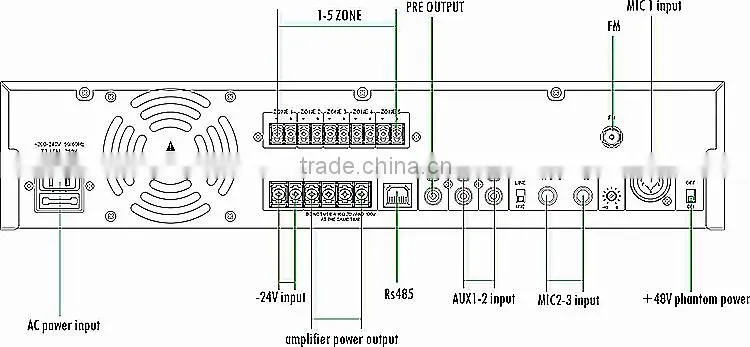

* 2 AUX IN input: AUX IN1 and AUX In2.
* 3 MIC IN input: MIC1, MIC, and MIC3,1-way multifunction XLR plug, and two-way audio plug 6.35
* 1 LINE OUT output
* MIC1 with a 48V phantom power switch.
* MIC 3 with MICT and LINE selector switch.
* Independent volume adjustment function.
* Treble and bass volume adjustment function.
* Total sound volume adjustment function.
* 4-16R constant resistance and constant voltage output 70V and 100V.
* Output level indicator and protection indicator
* MIC1 has the highest priority function, mute function of the volume can be adjusted
* 12V DC power input (60W). 24V DC power input (120W / 240W).
* Connect 5 remote microphone to control zones
Model |
TI-60SC |
TI-120SC |
TI-240SC |
Rated Power Output |
60W |
120W |
240W |
Speaker Outputs |
70V, 100V & 4~16Ω |
||
Input Sensitivity |
MIC 1, 2, 3: 5mV/600Ω , Unbalanced phone jack input |
||
& Impedance |
MIC 1, ±2.5mV/2KΩ , Balanced XLR input |
||
|
AUX 1, 2: 350mV/10KΩ , Unbalanced RCA input |
||
|
Output Sensitivity & Impedance |
MIX OUT: 1000mV/470Ω , Unbalanced RCA output |
||
Tone |
Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
||
Frequency Response |
50Hz~16KHz( +1dB, -3dB) |
||
S/N Ratio |
MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
||
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
||
Muting Function |
MIC 1 overrides other input signals with 0-30dB attenuation |
||
Crosstalk |
≤50dB |
||
MP3 Support Format |
MP3 |
||
Maximum Support Capacity |
8GB USB drive |
||
Phantom Power |
+48V |
||
Cooling |
Fan automatically start up when temp reaches 55℃ |
||
Protection |
High temp, overload & short-circuit |
||
Power Supply |
~110V/60Hz or ~230V/50Hz /DC24V |
||
Power Consumption |
100W |
200W |
400W |
Weight |
7.2Kg |
9Kg |
10.5Kg |
Dimensions |
484x358x88mm |
||
Finish |
Panel: aluminum plate, black Case: steel plate, black |
||
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.

- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
