Product Details
| Place of Origin | Guangdong, China | Brand Name | ITC | |
| Model Number | T-480MX |
Product Description

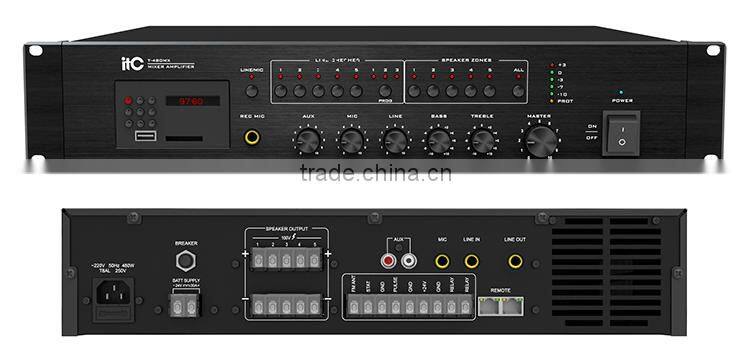

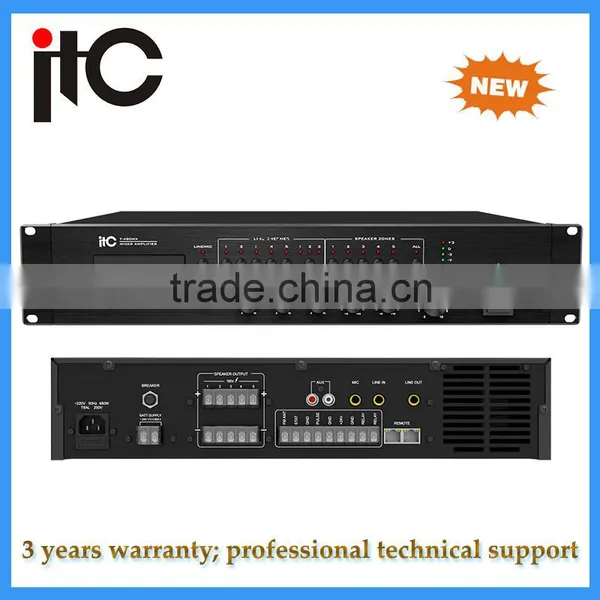

T-480MX 5 Zone Line Detection Mixer Pa Amplifier for Pa system
* The power output:240W, 350W, 480W, 650W.
* One microphone signal input, line and AUX signal input, two remote microphone input.
* Separate treble, bass, and volume control. Total volume control.
* Selectable recording signal, the internal signal input and external signal selection.
* When the START and GND short circuit, emergency information will broadcast all the time, it will stop only when user manually stop it. PULSE and GND short circuit trigger once, emergency information play five times then stop.
* With 24V input function, the rechargeable battery is 45-60 A / h, the charging current of 2-5 A.
* With 5 zones line detection function, press the corresponding key to do real-time detection. It can set the test frequency: test each 10 minutes, 12 hours, or 24 hours. If there is a fault line when there will be a buzzer.
* LED output level indication.
* Priority input function. Built-in emergency information> REMOTE>MIC1>LINE/AUX.
* 24V output current is 0.5A.
* Connect 5 remote microphones to control zones.

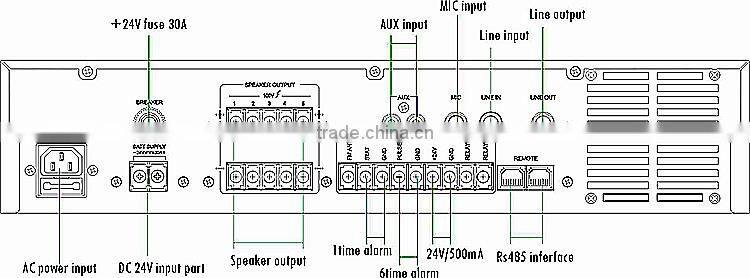

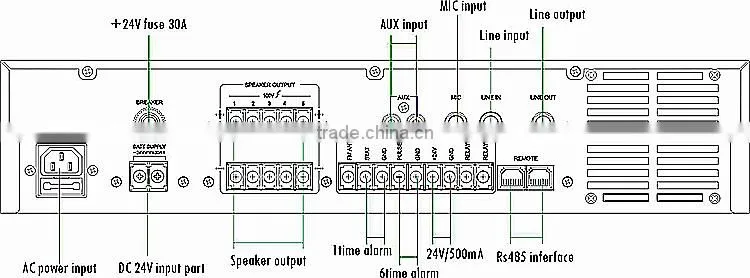

Rear Panel
Model | T-240MX | T-350MX | T-480MX | T-650MX | ||
Rated Power Output | 240W | 350W | 480W | 650W | ||
Speaker Outputs | 100V | |||||
Input Sensitivity & Impedance | MIC 1: 5mV/600Ω, Unbalanced phone jack input | |||||
| AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input | |||||
Output Sensitivity & Impedance | MIX OUT: 1000mV/470Ω, Unbalanced RCA output | |||||
Tone | Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz | |||||
Frequency Response | 50Hz~16KHz( +1dB, -3dB) | |||||
S/N Ratio | MIC 1, : 66dB, AUX 1, 2: 80dB | |||||
THD | Less than 0.5% at 1KHz, 1/3 rated power | |||||
Muting Function | (Built-in emergency information)>REMOTE>MIC1>LINE/AUX | |||||
Crosstalk | ≤50dB | |||||
MP3 Support Format | MP3 | |||||
Maximum Support Capacity | 8GB USB drive | |||||
Rechargeable Batteries | 45-60 A/h | |||||
Rechargeable Current | ≤5A | |||||
zone | 5 | |||||
Cooling | Fan automatically start up when temp reaches 55℃ | |||||
Protection | High temp, overload & short-circuit | |||||
Power Supply | ~110V/60Hz or ~230V/50Hz /DC24V | |||||
Power Consumption | 350W | 500W | 650W | 850W | ||
Weight | 7.5Kg | 8Kg | 8.5Kg | 9Kg | ||
Dimensions | 484x358x88mm | |||||
Finish | Panel: aluminum plate, black Case: steel plate, black | |||||
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
