New Arrival Dual-channel FM Colorful UHF Wireless Microphone With LCD

US$ 230 - 1,000 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

ITC

Model Number:

T-529UB

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name ITC

Model Number T-529UB

T-529UB

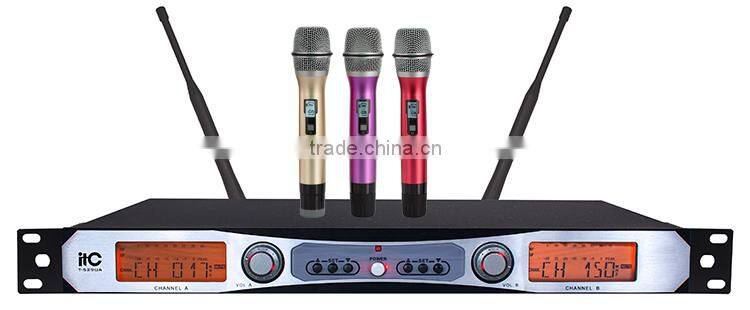

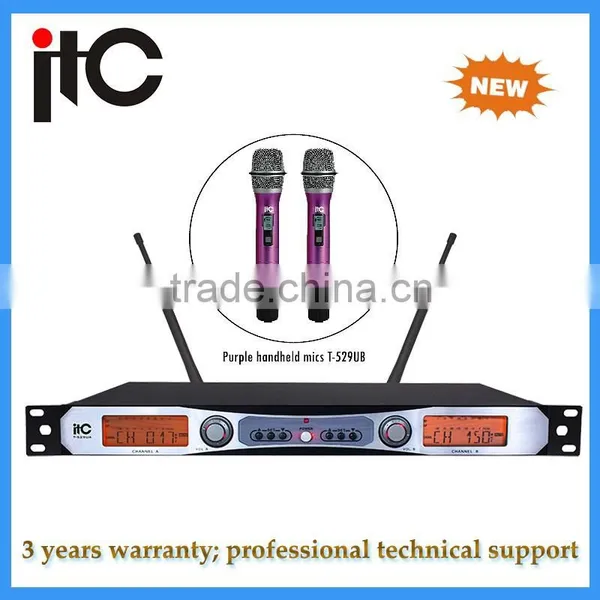

New Arrival Dual-channel FM Colorful UHF Wireless Microphone with LCD (LCD Bi-color Display)

Features

It’s in rack mount design 1U case of metal according to the standard of EIA
To adopt latest PLL tech. and MCU control system
Frequency matching could be operated manually or automatically
With LCD to display complete status
With the function of automatic IR frequency lock with transmitter
Rear antenna adopts separate design; With tech. of dual antenna grading auto. true diversity receiving; With dual mute circuit for noise lock; The distance is long
Rear potentiometer is to adjust sensitivity. When sensitivity is turned to higher, the distance is longer; Otherwise, the noise is lower
With indicator to show the interference by noise

Specification

System Index
Frequency Range	UHF 640 to 830MHz, Total 2 Band
Modulation	FM
Adjustable Range	50MHz
Quantity of Channels	600
Channel Separation	250KHz
Frequency Stability	±0.005%
Dynamic Range	100dB
Max. Frequency Offset	±45KHz
Frequency Response	80Hz-18KHz (±3dB)
S/N Ratio	> 105dB
Distortion	≤0.5%
Working distance	100 m (Openness)

Receiver Index
Receiving Mode	Two Frequency Conversion
MF	110MHz, 10.7MHz
Antenna Interface	BNC/50 ohm
Sensitivity	12 dBμV (80dBS/N)
Adjustment Range for Sensitivity	12-32 dBμV
Spur Suppression	≥75dB
Output Interface Type	Balanced and unbalanced
Max. Output Level	+10dBV
Power Supply	DC 12 ~ 18V 500mA
Working Temp.	-10℃ ~ + 40℃
Dimension	420 x 44 x 180mm
Weight	About 2.5Kg

Microphone Index
Antenna	Handheld Microphone is with Internal Antenna
Output Power	Max.: 30mW; Min.: 3mW
Spur Suppression	-60dB
Power Supply	2-segment AA Batteries at 1.5V
Working Time	30mW: ≥10 hours, 3mW: ≥15 hours

Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

Technical Support

Well-trained sales team for sales and basic technical service.
New product promotion and seminar for all employees.
Two English spoken technician provide online after sales service.
Online system software demo and configuration is available.
30 system consultants and 10 designers to make drawing and BOQ for each tender.
Design and BOQ response to customer within 48 hours.
PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
Technical documents could be downloaded from website

Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
