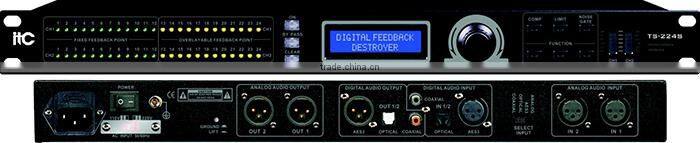

TS-224S Digital Feedback Suppressor for Professional Sound System

Model

TS-224S

Input

2 Channel XLR female pork analog input, 2 group Stereo coaxial, fiber, AES Input (every channel transmit two channel audio signal)

Output

2 Channel XLR male analog output, 2 group Stereo coaxial, fiber, AES output (every channel transmit two channel audio signal)

Input Impedance

balance: 20KΩ

Output Impedance

balance: 100Ω

KCMR

>70dB(1KHz)

Input Range

≤+20dBu

Frequency Response

15Hz-25KHz(-0.3dB)

S/N

≥98dB@1KHz0dBu

THD

<0.01% OUTPUT=0dBu/1KHz

Channel Resolution

>80dB (1KHz)

Howling Point Check & Inhibition

Automatic notch

Frequency Response

20Hz-20KHz±0.5dB

Filter

Independent 24 channel

Min Bandwidth

1/27th Octave

Max Bandwidth

1/14th Octave

Frequency Resolution

0.5Hz

Howling Point Checking Tme

0.1-0.5S

FFT length

2048

Transaudient Gain

6-10dB

System Gain

0dB

Compress

Start Level: -40dB~+20dB,compress rate: 1:1.0~1:20.0, response time: 10~200ms,recover time: 50ms~5000ms

Limit

Start Level: -40dB~+20dB,response time: 10~200ms,recover time: 50ms~5000ms

Noise Gate

-120dB~-40dB.A26

Screen

With a resolution of 144 x 32 LED display, 4-segment LED output level

Processor

96KHz sampling frequency, 32-bit DPS processor, 24-bit A / D and D / A switching.

Display

Output/Input 6-segment LED signal level

Power Consumption

<20W

Rack

1U

Dimensions

482 x 148 x 44mm

Net Weight

2.3Kg

Packing Dimensions

553 x 296 x 98mm

GW

4.3Kg
