T-6703
Digital network professional Weatherproof Emergency IP Intercom system
Suitable to be installed both indoor and outdoor;
Vandal-proof and Waterproof.
With 1 button for talking with duty room.
Simple appearance and in design of disassembly proof screw; It adopts panel of antioxidation alloy in 6mm with aluminum case.
It’s built in DSP and the start time is less than 1 sec.
With a codec module for network audio, which support protocol of TCP/IP, UDP and IGMP(Group Broadcast) to achieve 16 bit stereo network audio in CD level.
With dialogue module, support full duplex communication, work with DSP to achieve function of canceling noise and echo, audio compression, etc.
With 5W highly sensitive full range speaker, the sound is clear and loud; With 10W digital amplifier at constant impedance output, which could connect with speaker at 4 ohm.
With highly sensitive microphone.

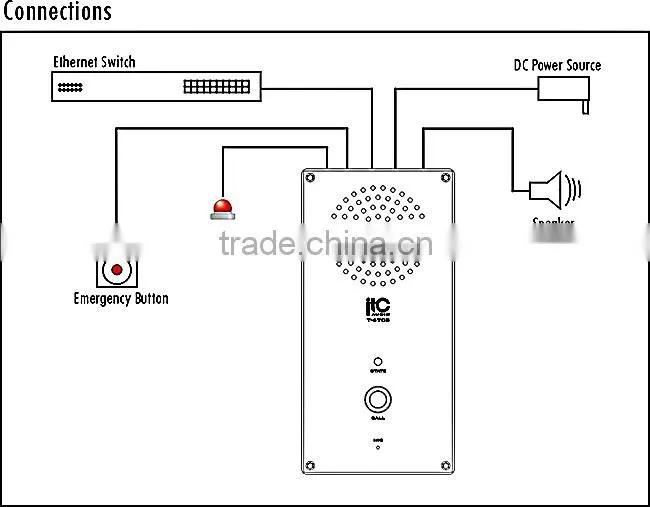

With function of monitoring, support recording management in server level, with AUX IO to work with monitoring system.
Support security function, including status feedback function for access control, support access control,
support alarm light control, tracking camera, etc.
Customized call target.
Support multiple calling strategy, including call waiting, call forwarding, unanswered reminder.
Support time custom for transfer time, unanswered time, call waiting, etc.
Support to trigger program broadcasting remotely via IP network.
Custom hang up mode of initiative or passive.
Support both PSTN phone broadcast and SM broadcast.
Support to wifi network on-demand unicast via mobile phone or remote controller.
Proof rating is IP55.
Support DHCP and it’s compatible with multiple network structure, such as router, network switcher, gateway bridge, modem, intelnet, 2G, 3G, 4G, group broadcast, unibroadcast, etc.
Support as least 3 kinds of highly safe authorization IP configuration, and the security factor is higher than remote configuration of Web.
With authorization operation management; The server centrally administrate all accounts and the matching password.
Built in lightning protection circuit.
To adopt common network design so that the installation and expandability is easy to be achieved.
Model |
T-6703 |
Network Interface |
Standard RJ45 input |
Communication Protocol |
TCP/IP, UDP, IGMP |
Audio Format |
MP3/MP2 |
Sampling Rate |
8K~48KHz |
Transmission Speed |
10/100Mbps |
Audio Mode |
16-bit stereo CD sound level |
Frequency Response |
20-16KHz (+1dB, -3dB) |
T.H.D. |
≤0.3% |
S/N Ratio |
>70dB |
Aux Input |
350mV |
Built-in Speaker Power & Impedance |
5W, 8Ω |
Speaker Output & Impedance |
10W, 4Ω |
Line Output |
1V |
Woking Temp |
5 °C-40°C |
Humidity |
20%-80% |
Power Consumption |
≤20W |
Power Supply |
DC 12-24V |

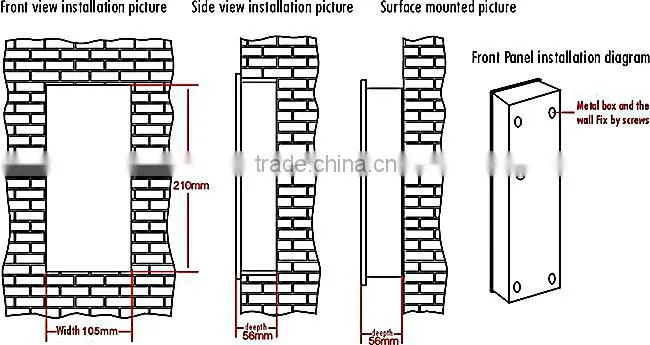

Dimensions |
210x105x56mm |
Weight |
1Kg |
