Help CenterCheap Emergency Call IP Based Audio Waterproof Intercom System
Related Products
-
IP Audio Weatherproof Emergency Explosion Proof IntercomUS$ 500 - 950MOQ: 100 Pieces -
Luxury POE Terminal IP Based Audio Intercom SystemUS$ 250 - 560MOQ: 100 Pieces
-
T-6705(D) Professional Digital Apartment Audio Intercom SystemUS$ 10 - 730MOQ: 10 Pieces
-
T-6705(D) IP Addressable Network Wireless Intercom for HomeUS$ 10 - 730MOQ: 10 Pieces
-
Factory Price Industrial Emergency Panel Audio Intercom SystemUS$ 650 - 1,200MOQ: 100 Pieces
Professional two way communication IP network panel with Call & Service two buttons press.
Suitable for indoor and outdoor, waterproof & explosion-proof; initiate an emergency signal and intercom communication with one button press.
* Simple appearance, beautiful lines, high-grade brushed aluminum panel, durable, both in-wall mount and surface mount design (with bottom box).
* Embed PC technology, built-in DSP and high speed industrial chip to ensure start time less than 1 second.
* One button call for help to duty room intercom microphone, the other to achieve the emergency function of relevant region, fast links, simple and quick operation.
* Built-in high sensitivity microphone for long distance voice pick up, high reducibility tone.
* Built-in a 5W full range monitor speaker of excellent voice restoration.
* Built-in 10W class-D amplifier to power 4Ω& 10W speaker.
* Hand free communication system.
* Support local electronic door locks, local alarm indicator (1 out of 2)
* Support local emergency signal input.
* Safe DC 11.5V~24.5V power adapter supplied.

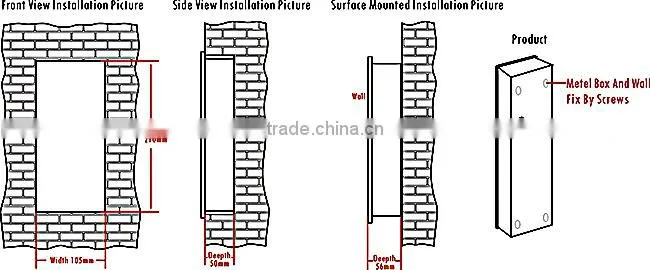

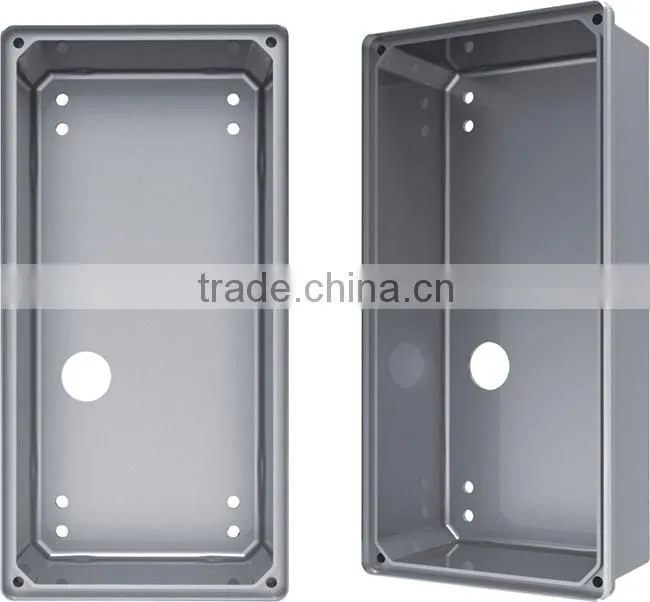

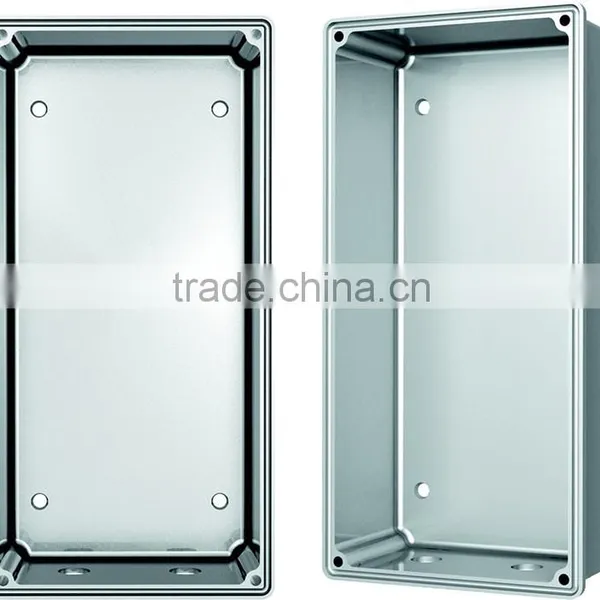

* Aluminum mounting box supplied with both surface mount and in-wall mount design.
* Full aluminum body for weatherproof IP55 level and explosive-proof design.
* Support WAN, LAN, Span gateway and cross router.
Model |
T-6703E |
Network Interface |
Standard RJ45 input |
Communication Protocal |
TCP/IP,UDP,IGMP |
Audio Format |
MP3/MP2 |
Sampling Rate |
8K~48KHz |
Transmission Speed |
10/100Mbps |
Audio Mode |
16-bit stereo CD sound level |
Frequency Output |
20Hz~16KHz |
T.H.D. |
≤0.3% |
S/N Ratio |
>70dB |
Aux Input |
350mV (Industrial standard Volt line terminals) |
Built-in Speaker Power & Impedance |
8Ω/5W |
Speaker Output & Impedance |
4Ω,10W (Industrial standard Volt line terminals) |
Line Output |
1V (Industrial standard Volt line terminals) |
Working Temp |
5℃~40℃ |
Humidity |
20%~80% |
Power Consumption |
≤20W |
Power Supply |
DC 12V~DC 24V |
Weatherproof Level |
IP55 |
Dimensions |
210×105×56mm |
Weight |
1Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
