IP Audio Weatherproof Emergency explosion proof intercom

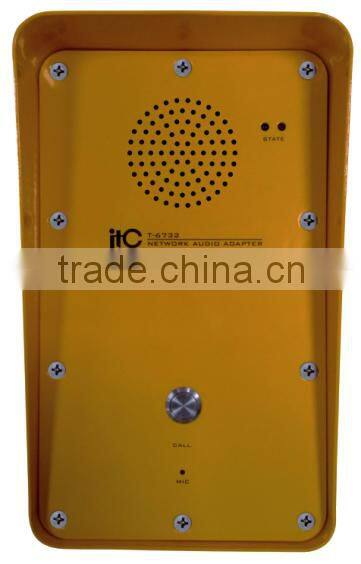

The T-6732 is a weatherproof & explosive-proof two way communication intercom panel. It is used to have one button press communication with the network paging microphone T-6702. It is very reliable industrial two way communication system for bank, prison, hospital, school, mining plant, transportation center, airport, metro or subway.
In a real applications, there will be several network paging microphone T-6702 shall used as intercom station for reception desk, information desk, security office, nurse room or logistic center. Each intercom station network paging microphone will be ID address distinguished by its own IP address, so one intercom station network paging microphone shall be responsible to answer and supervise several IP intercom panel T-6732.
* Two way communication panel with one button press to talk to intercom station.
* Ideal communication system for bank, prison, hospital, school, mining plant, transportation center, airport, metro or subway.
* Full IP/TCP network audio system which could be set up over non-dedicated network system.
* Embed PC technology, built-in DSP and high speed industrial chip to ensure start time less than 1 second.
* Ring call to intercom station microphone and automatically transfer function when no answer or busy
* Built-in 20W class-D amplifier to power 8ohm speaker.
* Built-in high sensitivity microphone for long distance voice pick up.
* Built-in a 3W full range monitor speaker of excellent voice restoration.
Industrial Environment Digital Duplex IP Intercom System
Model | T-6732 |
Network Interface | Standard RJ45 input |
Communication Protocol | TCP/IP, UDP, IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmission Speed | 10/100Mbps |
Frequency Response | 20-16KHz (+1dB, -3dB) |
T.H.D. | ≤0.3% |
S/N Ratio | >70dB |
Built-in Speaker Power & Impedance | 3W, 8ohm |
Speaker Output & Impedance | 30W, 8ohm |
Working Temp | 5℃ ~40℃ |
Power Consumption | 20%~80% |
Power Consumption | ≤40W |
IP Rate | IP55 |
Power Supply | DC24V |
Dimensions | 300x180x130mm |
Weight | 3.5Kg |
