IP based audio Weatherproof IP66 explosion proof intercom
The T-6731 is a weatherproof & explosive-proof two way communication intercom panel. It is used to have one button press communication with the network paging microphone T-6702. It is very reliable industrial two way communication system for bank, prison, hospital, school, mining plant, transportation center, airport, metro or subway.
In a real applications, there will be several network paging microphone T-6702 shall used as intercom station for reception desk, information desk, security office, nurse room or logistic center. Each intercom station network paging microphone will be ID address distinguished by its own IP address, so one intercom station network paging microphone shall be responsible to answer and supervise several IP intercom panel T-6731.
Under emergency or information inquiry, the IP intercom panel can talk to its pre-designated intercom station; the intercom station microphone can answer or reject the call. If the pre-designated intercom station microphone is long time no answer or busy, the secondary intercom station microphone will be automatically transferred. Every ring call is accompanied with warning chime tone and flashing indicator. While the intercom station microphone with could directly make announcement or send pre-recorded messages to the IP intercom panel to warning the potential emergency which may be saw from CCTV system.
The IP intercom panel is built-in a high sensitivity microphone and a 5W full range monitor speaker to ensure voice clearance and loudness.
The IP intercom system is built-in dual CPU to ensure minimum sound delay. Moreover, special circuit protection is adopted to avoid echo noise within this metal box.
The IP intercom panel is built-in a decoder which is used to decode aux and control data into analog to internal amplifier and internal speaker.
This IP intercom panel could be installed in anywhere of non-dedicated network system, so can help to save wiring cost.

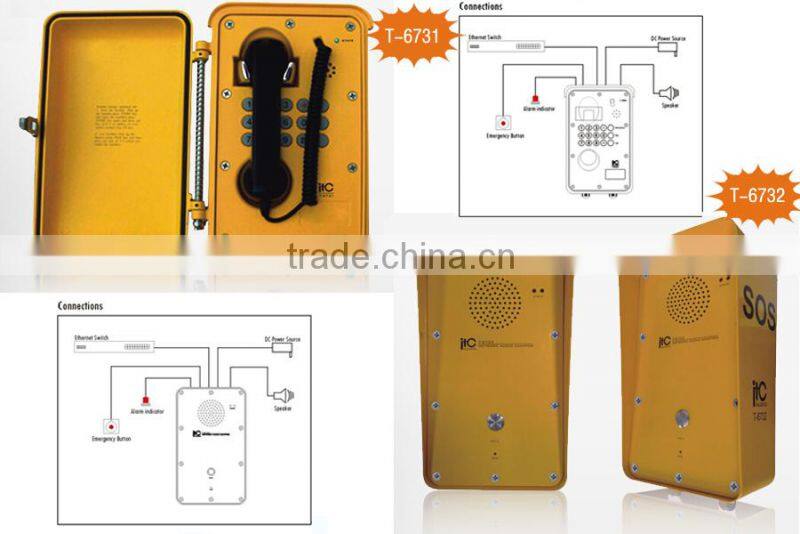

The IP intercom panel is also with a dry contact output to inter-work with third party low voltage system like CCTV, door access system and home automation system.
Status indicator will be light in different color for paging, intercom and voice alarm system.
DC 12V to 24V safe power supplied system.
The IP intercom panel is designed of in-wall or wall mount design of outdoor applications.
*Two way communication panel with button of capacity communicate with intercom station and other intercom panels.
* Ideal communication system for bank, prison, hospital, school, mining plant, transportation center, airport, metro or subway.
* Full IP/TCP network audio system which could be set up over non-dedicated network system.
* Embed PC technology, built-in DSP and high speed industrial chip to ensure start time less than 1 second.
* Ring call to intercom station microphone and automatically transfer function when no answer or busy.
* Built-in 20W class-D amplifier to power external 8 speaker.
* Built-in high sensitivity microphone for long distance voice pick.
* Intercom station microphone and PC server center can broadcast music or voice message directly.
* Hand free communication system.
* One dry contact output to inter-work with third party system.
* One dry contact input to be controlled by third party system.
* Safe DC24V power adapter supplied.
* Minimum data delay and no echo noise.
* Full aluminum alloy body of 5mm thickness for weatherproof IP66 level and explosive-proof design.
* Aluminum alloy mounting box supplied with both surface mount and in-wall mount design.
* Special anti-dismounting screw is supplied for fix up.
* Support WAN, LAN, span gateway and cross router.
Model | T-6731 |
Network Interface | Standard RJ45 input |
Communication Protocol | TCP/IP, UDP, IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmission Speed | 10/100Mbps |
Audio Mode | 16-bit stereo CD sound level |
Frequency Response | 20-16kHz (+1dB, -3dB) |
T.H.D. | ≤0.3% |
S/N Ratio | >70dB |
Speaker Output & Impedance | 30W, 8ohm |
Working Temp | 5℃ -40℃ |
Humidity | 20%-80% |
Power Consumption | ≤40W |
IP Rate | IP66 |
Power Supply | DC 24V |
Dimensions | 320x205x120mm |
Weight | 5.5Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
