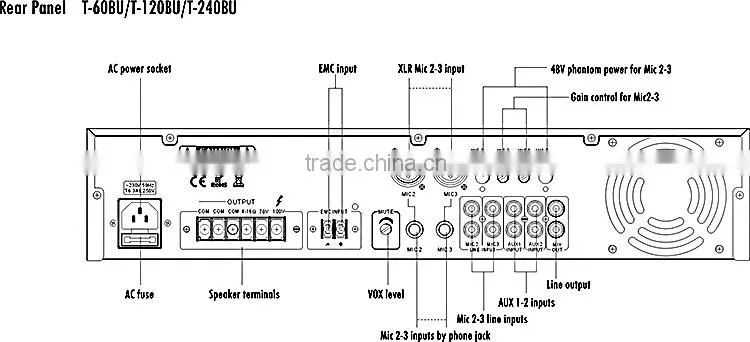

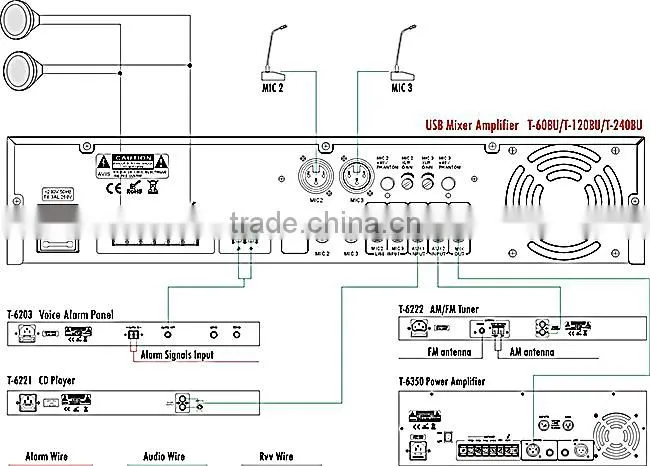

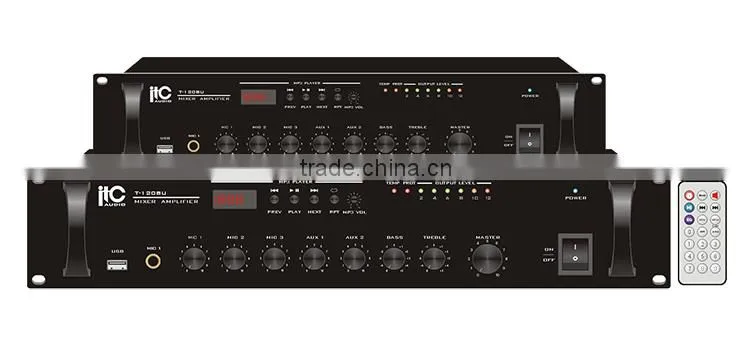

T-120BU Professional power USB mixer pa amplifier for pa system
It’s PA mixing amplifier with USB port. And its rated power output is optional including 60W, 120W and 240W. Optional balanced Mic input; With AUX input and EMC input.
- With EMC(775mV) input;
- Speaker output: constant voltage output of 70V or 100V; constant impedance output of 4 to 16 ohm.
- Complete circuit protection for short, over-heat, overload, etc.
- With 3 Mic intput (5mV).
- With 2 balanced Mic intput (±2.5mV).
- With treble/bass control (±10dB).
- Mic input is with phantom power at 48V.
- Each balanced Mic input is with gain control (±2.5mV to ±75mV, 30dB).
- With 2 AUX input (350mV).
- Priority: Mic 1>EMC>Mic 2, Mic 3, AUX 1, AUX 2, Mic 2/Line Input, Mic 3/Line Input.
- USB port; Remote controller; Indication.
- Power supplied at DC 24V is also allowed.
Model |
T-60BU |
T-120BU |
T-240BU |
Rated Power Output |
60W |
120W |
240W |
Speaker Outputs |
70V, 100V & 4~16Ω |
||
Input Sensitivity & Impedance |
MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input MIC 2, 3: ±2.5mV/2KΩ, Balanced XLR input MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input EMC: 775mV/10KΩ, Unbalanced screw input |
||
Output Sensitivity & Impedance |
MIX OUT: 1V/470Ω, Unbalanced RCA output |
||
Tone |
Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
||
Frequency Response |
50Hz~16KHz( +1dB, -3dB) |
||
S/N Ratio |
MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
||
THD |
Less than 0.1% at 1KHz, 1/3 rated power |
||
Muting Function |
MIC 1 overrides other input signals with 0-30dB attenuation |
||
Gain Control |
MIC 2, 3 XLR, ±2.5mV~±75mV at 30dB |
||
Crosstalk |
≤50dB |
||
MP3 Support Format |
MP3 |
||
Maximum Support Capacity |
8GB USB drive |
||
Phantom Power |
+48V, with LED indicator |
||
Cooling |
Fan automatically start up when temp reaches 55℃ |
||
Protection |
High temp, overload & short-circuit |
||
Power Supply |
~110V/60Hz or ~230V/50Hz |
||
Power Consumption |
100W |
200W |
400W |
Weight |
7.2Kg |
10Kg |
17.5Kg |
Dimensions |
484x303x88mm |
484x358x88mm |
|
Finish |
Panel: aluminum plate, blac Case: steel plate, black |
||
