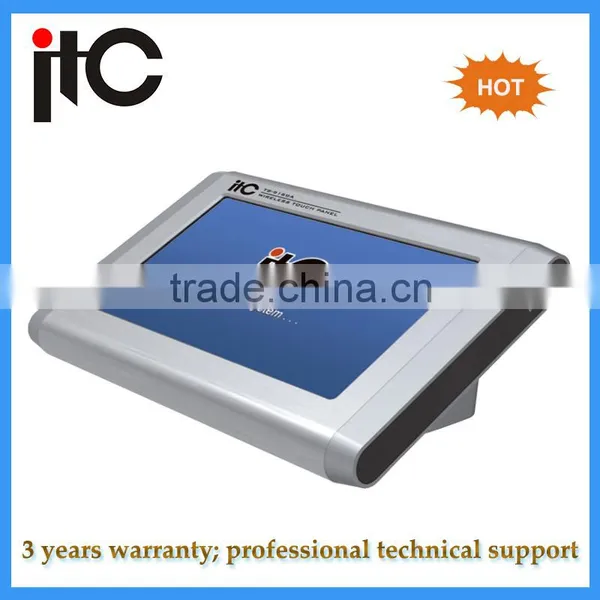

TS-9169A 8 inch Handheld Wireless Touch Screen For Multimedia Central Control System
TS-9169A 8 inch Handheld Wireless Touch Screen For Multimedia Central Control System
* The appearance is very graceful and it is durable. The LCD screen is 8-inch TFT true color, with 16:9
high resolution color (18 bit color depth) in widescreen HD display.
* It can single communicate with the programmable center controller via wireless receiver, the wireless
transmission distance is 50 meters.
* The operation interface can be customized definition. PNG and JPG are the regular image format. The
graphical interfaces supports text, 3D keys, polymorphic keys and irregular keys whose user interface
is beautiful.
* Supporting handheld used.
* It is built-in battery which could be continuous use for 8 hours.
* It adopts high sensitivity capacitor touch screen and can be operated very rapidly.
...........................................................................................................................................................................
Description
TS-9169A is an 8-inch table-top wireless full-color touch screen, which could be working with the
programmable center controllers TS-9100 or TS-9100D. The color widescreen is in high resolution 16:9.
It supports programmable image, graph, text, cartoon, 2D/3D keys, polymorphic keys, irregular keys
which are more humanized interface, and the wireless transmission distance is about 50 meters.
Model |
TS-9169A |
|
CPU |
S3C6410 |
|
Internal memory |
RAM: 256MB ROM: 1GB |
|
Display |
Display |
|
Screen kinds |
a-si TFT LCD |
|
Size |
8.0" |
|
Resolution ratio |
800X480 |
|
Aspect ratio |
16:9 |
|
Color depth |
18 bits 256K color |
|
Transparency |
8 bits alpha channel |
|
Brightness |
450 nit(cd/m2) |
|
Contrast ratio |
500:1 |
|
Backlight |
WLED |
|
Visual angle |
Level ±70° Vertical ±70° , -50° |
|
Control-touch control panel |
Control-touch control panel |
|
Touch screen |
Resistance-type touch screen |
|
On/Off |
Power self-lock switch |
|
Reset |
Reset key |
|
Indicator |
Power indicator: white Signal indicator: Saffron yellow |
|
Power interface |
DC 12V/3.3A input |
|
USB port |
Mini USB |
|
Battery |
Battery |
|
Volume |
7.4V/4200mAH |
|
Battery charging time |
5 hours |
|
Charging temperature |
0℃- 45℃ |
|
Specification |
Li-ion battery 7.4V |
|
Other specifications |
Other specifications |
|
Loud speaker |
Dual track L+R stereo output 8Ω1W |
|
Wireless RF |
433MHZ barrier free transmission distance 50M |
|
Quiescent dissipation |
0.052W(7.4V/7mA) |
|
Max power consumption |
4.28W(7.4V/578mA) |
|
Image engine |
BITBLIT and the shifted 2D image speed up the engine |
|
Size(L X W X H) |
236 x 141 x 90mm |
|
Weight |
About 1kg |
|
