* Programmable control platform , the English programmable interface for option, interactive control structure

* Using the latest 32-bit embedded processor , processing speed up to 533MHz

* Extensive use of highly integrated chip, elegant LAY OUT, system run very stably and smoothly

* Built-in 8MB RAM and 16MB FLASH memory storage

* Unique designed with power carrier wave communication ,to cover the range of 300 m to control without wiring ( optional )

* 8 independent programmable RS-232 control interface ,to send and receive RS232, RS485, RS422 format data

* 8 independent programmable IR infrared transmitter port

* 8 -channel digital I / 0 input and output port, with protection circuit

* 8 -channel low current relay control interface

* Embedded intelligent IR learning module, not necessary of professional learner

* Extensible hard IR learning function to facilitate the customer to replace the infrared device without re- programming

* Full support for remote network control ,extensible network

* With software transmission interface in front and rear panel

* The front panel has a hardware reset function

* Support dual-code control, namely one key two codes

* Adopt international popular all- SMD (SMT)technology

* All standard environmental protection power (AC110V-240V), suitable for any area

............................................................................................................................................................................

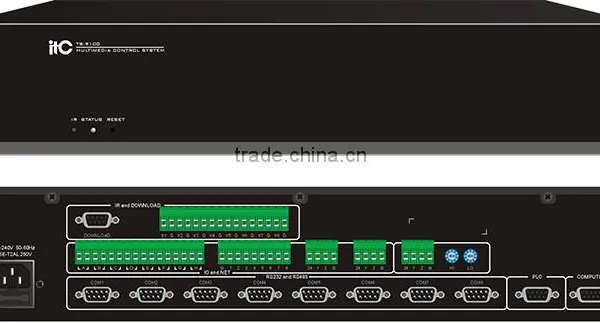

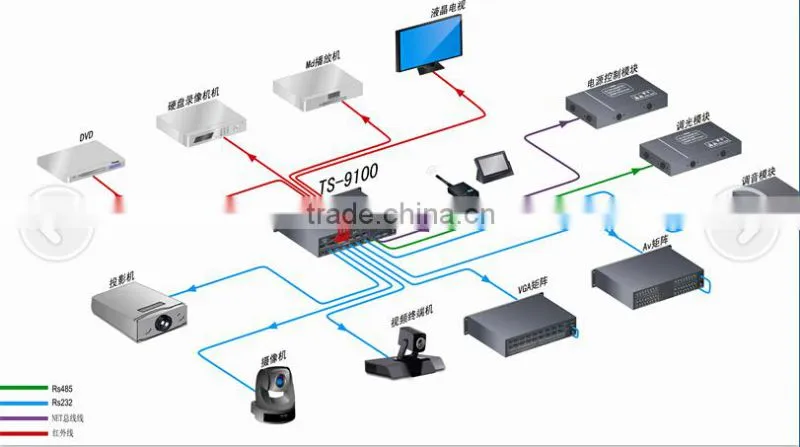

TS-9100 intelligent central controller is ITC's well-developed multimedia central control system with powerful programmable ability and communications control ability. It is configured with 32-bit embedded processor of basic frequency max 533MHz, built-in 8M memory storage and 16M FLASH storage, to be high-speed computing complex logic instructions; It provides a site-programmable configuration mode for users to customize system according to the demands. It is with highly integrated chip to support to the CPU, allowing a variety of complex arithmetic and control to run smoothly. Imitated by American power carrier wave communication solutions X10, it is unique designed with power carrier wave communication in this industry to fulfill a more fluent communication control and system extended. It is a revolution in the control mode of intelligent center control system.
