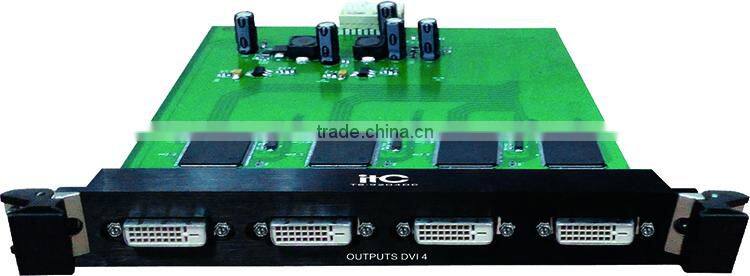

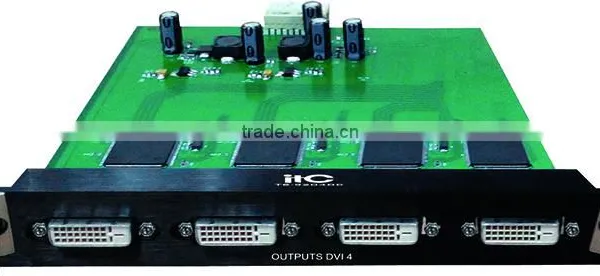

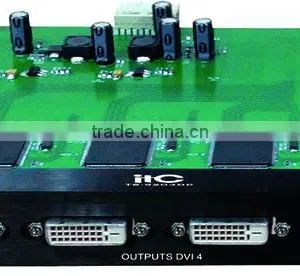

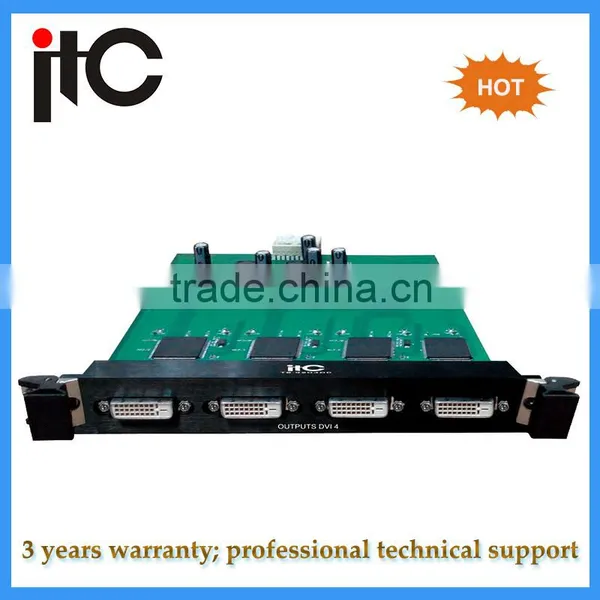

AV Equipment Solution DVI output card for Audio Video Matrix Switcher
Specifically for the intelligent HD mixed interpolation Matrix Switchers and design, support 4-Channel DVI video signal output, digital HD 1080P signal, the design type high integrated plate, can be arbitrarily selected card number, which brings great convenience for application and maintenance.
* 4-Channel DVI-D master interface output.
* The longest distance of 20m.
* Pixel bandwidth: 225MHz, full digital.
* Interface bandwidth: 3.25Gbps, full digital.
* Is compatible with the HDMI1.4 standard, HDCP1.4 protocol, DVI1.0 protocol.
* Maximum support resolution: HDPC:1920X1200P@60_24bit,
HDTV:1920x1080p@60_36bit.
* Plug and play, very convenient.
Model |
TS-9204DC |
Interface |
Supporting HDMI1.4 protocol, HDCP1.4 protocol, |
Protocol |
225MHz, full digital |
|
Normal-PC: 600x1200@60_24bit |
Pixel Bandwidth |
HDTV: 1920x1080P@60_36bit |
Interface Bandwidth |
<0.3Tbit (20%--80%) |
Max Supporting Resolution Ratio |
DVI1.0 standard DVI-D full digital T.M.D.S. |
|
T.M.D.S 2.9V/3.3V |
|
|
Clock Jitter |
6W |
Risetime |
Less than 20 meters, at 1920x1200@60 (recommend to |
Falltime |
Molex TM cable) |
Signal Type |
TS-9204DC |
Signal Strength |
Supporting HDMI1.4 protocol, HDCP1.4 protocol, |
Mini/Max Electrical Level |
225MHz, full digital |
Input EDID |
Normal-PC: 600x1200@60_24bit |
Specifications |
HDTV: 1920x1080P@60_36bit |
Max DC Bias Error |
<0.3Tbit (20%--80%) |
Max Consumption |
DVI1.0 standard DVI-D full digital T.M.D.S. |
Product Weight |
T.M.D.S 2.9V/3.3V |
Proposal Max Output Distance |
|
|
6W |
|
Less than 20 meters, at 1920x1200@60 (recommend to |
