Home > Consumer Electronics > Audio & Sets > Professional Audio > Professional av System Vga Switch Matrix With 8 Channel

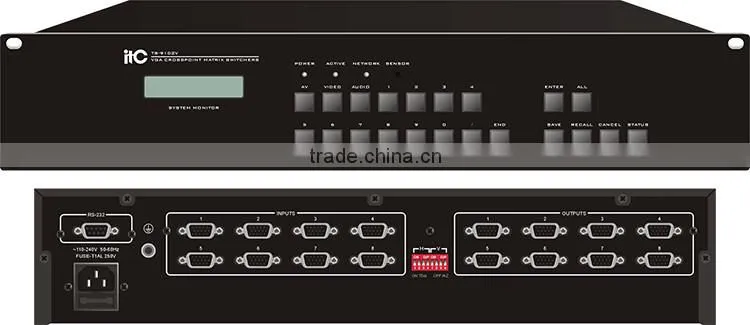

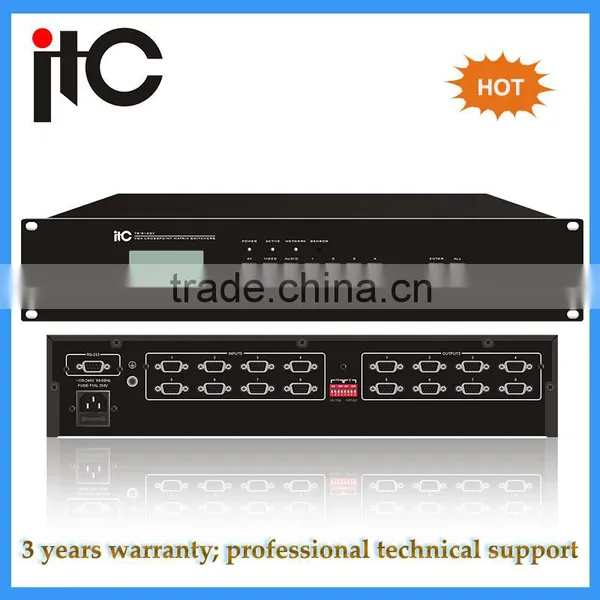

Professional av System Vga Switch Matrix With 8 Channel

US$ 500 - 1,000 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

TS-9102V

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ITC

Model Number TS-9102V

Professional av system vga switch matrix with 8 channel

Product Description

VGA Matrix Switcher is high-intelligent matrix switch device which is designed for switching and distributing the display of computer signal (RGBHV signal). It's used for switching the multiplex signal from the input channel to the output channels; the output channels are independent from each other. VGA Matrix Switcher allows synchronous or asynchronous switching between the computer signal and audio signal.

VGA Matrix Switcher adopts professional matrix chip, comes with buffered function, output is more stable, with highly definition images. VGA Matrix Switcher can realize 24-hour standby, it has the function of off-site switching and memory protection. It has RS232 serial communication interface which can connect to PC, remote control system and a variety of remote control devices. VGA Matrix Switcher is able to meet the different needs of customers, widely used in multimedia conferencing projects, radio and television projects, command and control centers and other occasion

Features

* Support 8/16 channels audio and video signal input, 2/4/8/16 channels audio and video signal output.

* Video Broadband height is 350MHz (-3dB) when fully loaded.

* Provide multiple sets of preset save option, with power-down memory function.

* LCD displays the status of the switching operation in real time, Client can check the current input output channel connectivity status with the panel keyboard.

* With infrared remote control and RS232 communication function.

* Support fast switching operation, the operation is quite simple and efficient.

* With separate VGA input and output terminals, adopt 15-PlN Hd female connector, support a variety of RGB and VGA signal source.

* Audio input and output interface adopts five bits 3.8mm Phoenix Interface.

* Support RGBHV, RGBS, RGsB, RsGsBs high-definition television (HDTV), component video, s-video and composite video (signal).

* Audio signal types are: stereo, balanced or unbalanced connection.

* Adopt programmable logic array circuit which can realize mutual interchange with each other.

* Long-distance transmission signal distortion compensation technology.

* Built-in universal power supply.

Specification

Composite video signal
Video Bandwidth	350MHz(-3dB) full load
Input Signal	RGBHV,RGBS,RGsB,RsGsBs
Input Interface	DB 15 Female connector
RGB Input Level	0.5Vp-p ~ 2.0Vp-p
RGB Input Impedance	75Ω
HV Input Level	0.5V ~ 5.0Vp-p
HV Input Impedance	510Ω
Output Signal	RGBHV,RGBS,RGsB,RsGsBs
Output Interface	DB 15 Female connector
RGB Output Level	0.5Vp-p ~ 2.0Vp-p
RGB Output Impedance	75Ω
HV Output Level	0.5V ~ 5.0Vp-p
HV Output Impedance	75Ω
Return Loss	<-30dB@5MHz
Horizontal Frequency Response	15 KHz ~ 145 KHz
Vertical Frequency Response	30 Hz ~ 170 Hz

The analog audio signal
Bandwidth	150MHz(-3dB) full loaded
Input Signal	Stereo ( balanced or unbalanced)
Input Port	5bit 3.8 interface
Input level (max)	+19.5dBu
Input Impedance	> 10KΩ
Output Signal	Stereo ( balanced or unbalanced)
Output Port	5 bit 3.8 interface
Output Level (max)	+19.5dBU
Output Impedance	>50Ω
Frequency Response	20Hz-20KHz, +0.05dB
Noise Ratio (S/N)	>90dB
Stereo Channel Isolation	>80dB @ 1 kHz
Common Mode Rejection Ratio (CMRR)	>75dB @ 20 Hz ~ 20 kHz

Equipment Specifications
Propagation Delay (MAX)	5nS ( ±1nS)
Switching Delay	200nS ( maximum time )
Average Failure	50000hours
Operating Temperature	-20℃~45℃
Operating Humidity	10%~90%
Supply Voltage	100VAC~240VAC, 50/60Hz

Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
