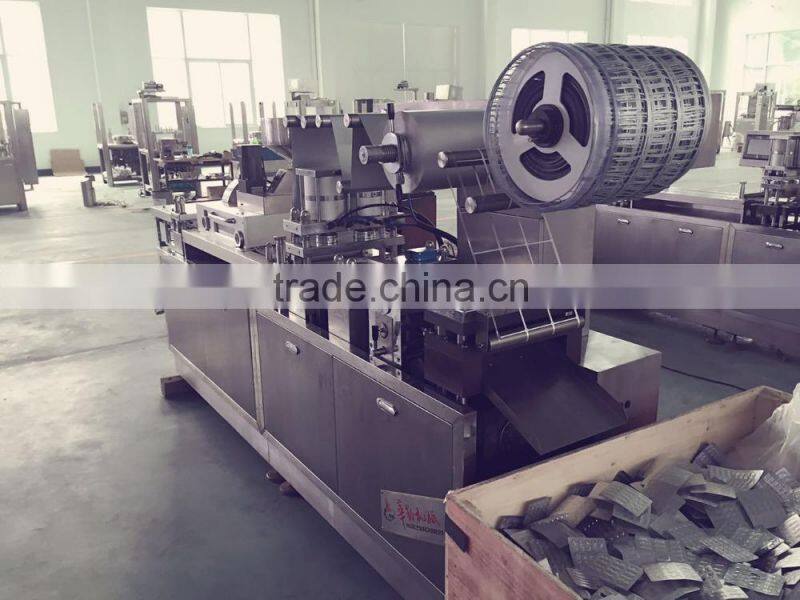

Help CenterTWO DIFFERENT COLORS MEDICINE FEEDING BLISTER PACKING MACHINE
Related Products
-
HIGH EFFICIENCY PILL PACKAGE MACHINEUS$ 1 - 100,000MOQ: 1 Set -
MUITI-FUNCTION AUTOMATIC CARTONS MACHINESUS$ 1 - 100,000MOQ: 1 Set
-
AUTOMATIC ALU ALU BLISTER CARTONS MACHINESUS$ 1 - 100,000MOQ: 1 Set
-
BLISTER PACKING MACHINEUS$ 1 - 100,000MOQ: 1 Set
-
AUTOMATIC CAPSULE FILLING EQUIPMENTUS$ 1 - 100,000MOQ: 1 Set
BLISTER PACKAGE MACHINES
(BLISTER PACKAGE)
ADVANTAGE
- Machine is small ( Machine can be disassembled into 2 parts )
- Easy operation (PLC).
- Machine operation stability.(New feeder and step motor control pulling)
- SS304/316
- Add special feeder, do the same bubble plate there are several different medical.

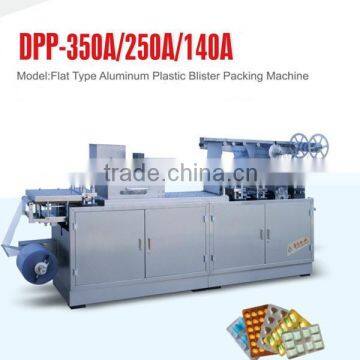

MAIN TECHNICAL PARAMETERS
Item Model |
DPP-350A |
DPP-250A |
DPP-140A |
|
|
Cutting Frequency (ideal sizes:80*57mm) |
15-45 cutting/min |
15-45 cutting/min |
15-45 cutting/min |
|
Max. Forming Area and Depth |
350×130×50 |
250×120×30 |
140×110×20 |
|
Adjustable Scope of Travel(mm) |
30-140mm |
30-130mm |
30-120mm |
|
|
Packaging material (I.D.Φ75) |
PVC/PP (mm) |
(0.15-0.6)×350×(Φ400) |
(0.15-0.4)×250×(Φ400) |
(0.15-0.4)×160×(Φ350) |
|
PTP (mm) |
(0.02-0.15)×350×(Φ400) |
(0.02-0.15)×250×(Φ400) |
(0.02-0.15)×160×(Φ350) |
|
|
Paper (mm) |
(50-100)gsm×350×(Φ400) |
(50-100)gsm×250×(Φ400) |
(50-100)gsm×160×(Φ350) |
|
Power |
380V/22V 50Hz 9.5kw |
380V/220V 50Hz 8kw |
380V/220V 50Hz 5.5k |
|
Air compression(self-prepared) |
0.6-0.8Mpa≥0.6m³/min |
0.6-0.8Mpa≥0.45m3/min |
0.6-0.8Mpa≥0.4m³/min |
|
|
Recycle water or circulating water consumption |
60-100L/h |
40-80L/h |
40-80L/h |
|
|
Overall Dimension(L*W*H) (including foundation) |
3650×850×1700 |
2900×750×1600 |
2400×650×1450 |
|
Dimension of Each Part |
1850×850×1700(front) |
1500×750×1600(front) |
1350×650×1250(front) |
|
1800×850×1650(back) |
1400×750×1450(back) |
1050×650×1450(back) |
||
Weight |
About 2000kg |
About 1200kg |
About 800kg |
|
MACHINE ADVANTAGE
1. All of the air supply and synchronization of the machine is controlled by the encoder. All synchronous data have been programmed in advance so that there is no need to adjust air supply and pulling time manually. The machine in other factory use Cam control, which means the process is mechanical. The biggest disadvantage of it is that the friction is inevitably which will lead to wear and tear. As time passes, the synchronization is not accurate. But our machines use encoder control, so that there is no need to worry about the synchronization. If the encoder is broken, you can also buy it in the local, it’s convenient.
2. Our machines have PRC (print register control) system, is the cursor version of function, because the machine is a stepper motor, so is true of PRC system forever won't generation shift. Other manufacturers may be gas clip can only be manually adjusted, a long time after the shift will occur.
3. Our machine use Stepper motor to control the pulling length. When change the model, there is no need to adjust the machine so that it’s convenient and easy operating. What I want to mention is that the machines in other factory use gas clip to control the pulling length. It has two shortcomings. First, when you change the models, you need to adjust the pulling length manually which means adjusting screw in the pulling position. If the Operating workers is unskilled, it will waste the material and time.
NEW FEEDER
- Under the control of the quantity of material, can keep the disc brushing not too full, filling the products more accurately
- Moderate material can keep PVC not deformated, make machine operate more stable
FAQ
1. Q: How about the after-sales service?
A: Our machines have one year guarantee, life-long maintenance.We have a strong team, special for after-sales service. We can arrange engineers to do service for you.
2. Q: Are you a factory or trading company?
A: We are a factory in this field nearly 15 years ( Early named Ruian Huali Pharmaceutical Machinery Factory).
3. Q:How does your factory do regarding quality control?
A:Quality is our invariable topic,is he basement of company's development.From the beginning of opening company,we especially focus on quality job.Our pharmeceutical equipment have passed the GMP certification,ISO9001 International Quality System Certification,CE certification,and gain several utility model patents and invention patents issued by State Patent Office of China.
4.Q:What information should I let you know if I want to get quotation?
A:-the size of products(Length*Width*Height)
-the material
-if it is possible,please provide us the pictures or the design drawings,our designer will analyze your samples and give you exact details.
OTHER BLISTER PACKING MACHINES
ALU-PVC BLISTER PACKING MACHINES
ALU-ALU BLISTER PACKING MACHINES
ALU-PVC-ALU BLISTER PACKING MACHINES
HING SPEED BLISTER PACKING MACHINES
AMPOULE BLISTER PACKING MACHINES
CARTONING MACHINES
OUTPUT 100BOXES PER MIN CARTONING MACHINES
OUTPUT 200BOXES PER MIN CARTONING MACHINES
