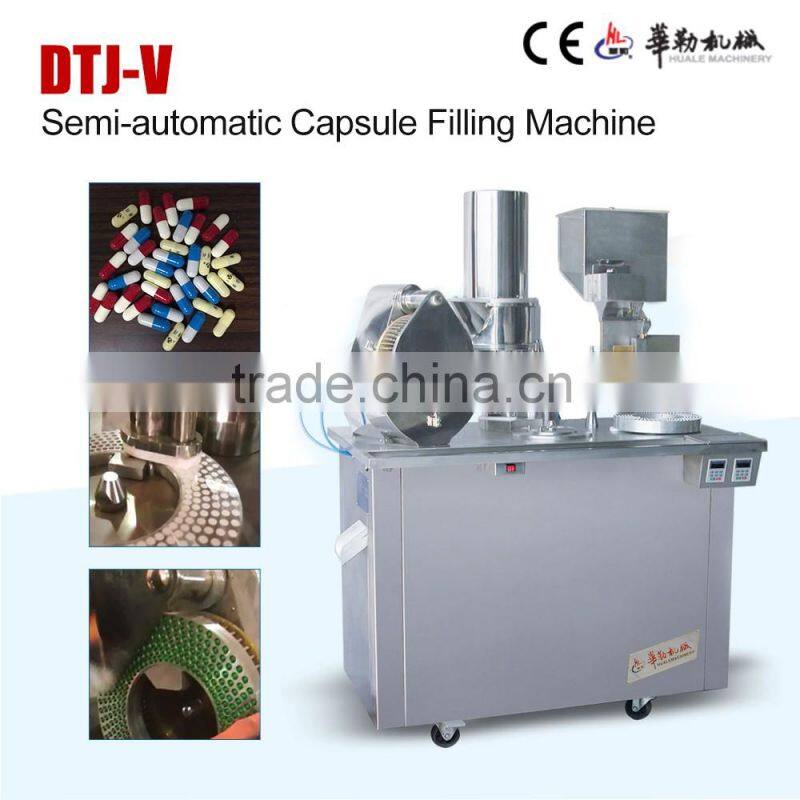

Product Name: Semi automatic capsule filling machine
Semi automatic capsule filling machine is a special machine which is suitable for the medium, small pharmaceutical factory and hospital labs. It adopts programmable control system, touch panel operation, step-less transudation speed shift, and electronic counter. The machine can complete the actions of position, separation, filling and locking. The dosage is accurage and the operation is very easy to learn. The overall machine is made of stainless steel, and it is suitable for the capsules which filled with powder and grains.
Technical Parameters:
Capsule size |
No. 000#-3# |
Capacity(capsules/h) |
10000-30000((Depending on the operation of skilled workers) |
Power supply |
380V 3Pharse 4.0kw |
Vacuum pump |
40m3/h |
Capacity of air compressor |
0.03m3/min 0.7Mpa |
Overall dimensions:(mm) |
1140×700×1630 |
Packing dimension:(mm) |
1650×800×1750 |
Net weight:(Kg) |
430 |
Gross weight:(Kg) |
500 |
- It automatically completes the action of position, separation, filling, locking etc.
- The dosage is accurate and the complete operation is convenient.

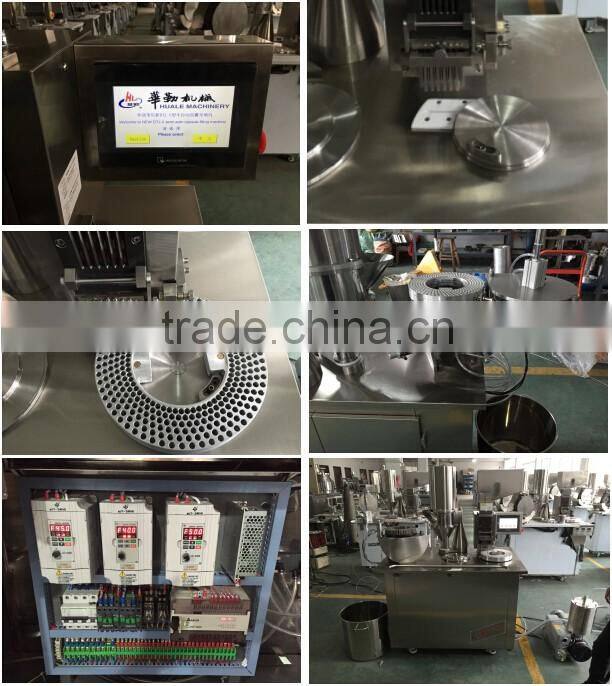

- It adopts PLC control system, touch Screen operation, step-less transducer speed-shift and electronic automatic counter.

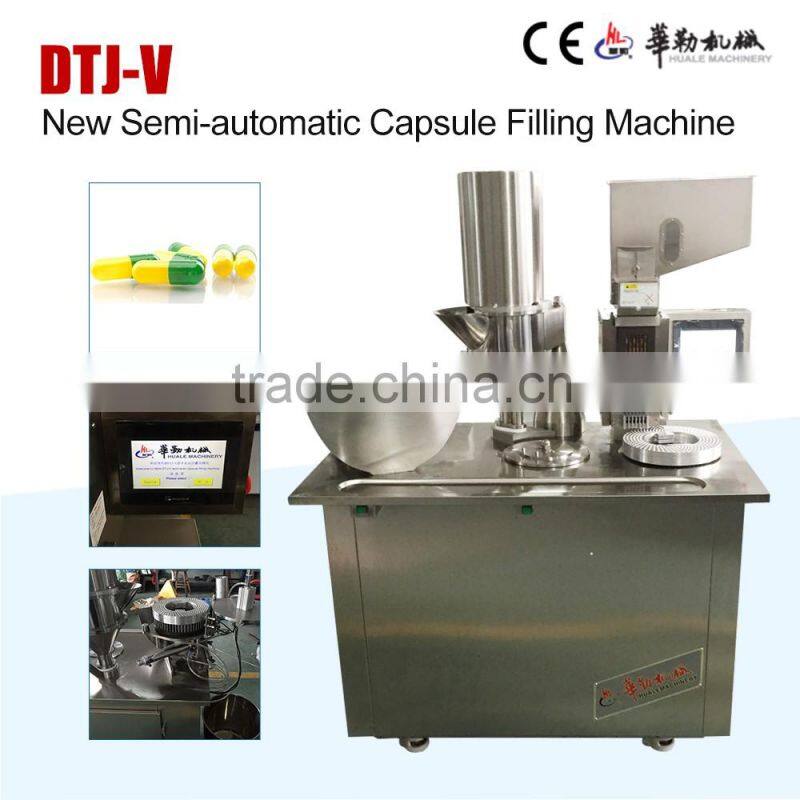

- It is much easier and more convenient to operate the new semi-auto capsule filling machine with a PLC, and it looks more high-grade.
- It uses SS304 instead of copper to make the capsule dispensing part. This change enhances the precision of capsule loading and reduces friction. Not only does it improve the producing efficiency, but also it extends the life of the machine.

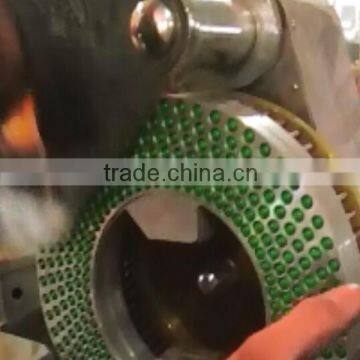

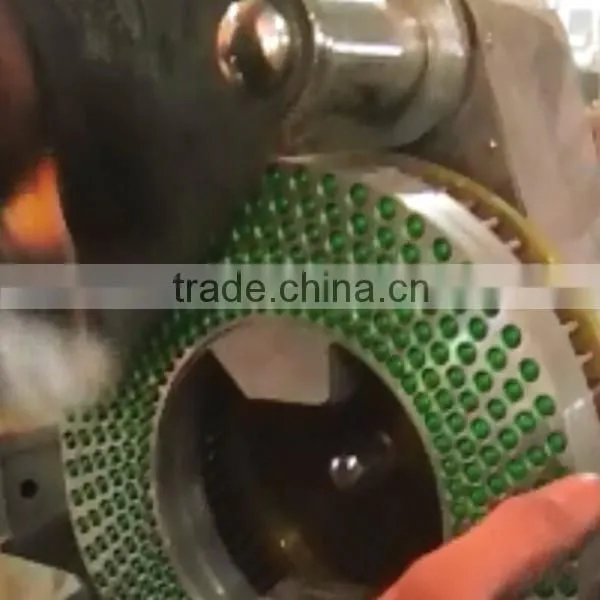

- The capsule locking parts on the new machine is horizontal, and it adopts automatic pneumatic principle. The design can prevent the powders crashing effectively to improve the capsule quality. It also reduces manpower and makes the operation more convenient.
Technical Parameters:
Capsule size |
No. 000#-5#&Security Capsule A-E |
Output(pcs/min) |
10000-25000 (Depending on the operation of skilled workers) |
Power supply |
380V/220V 50HZ 2.1KW |
Vacuum pump |
XD-040(40m3/h) |
Capacity of air compressor |
0.1 m3/min |
Noise |
<60dB(A) |
Overall dimensions:(mm) |
1200*700*1600 |
Packing dimension:(mm) |
1800*800*1800 |
Net weight:(Kg) |
330 |
Gross weight:(Kg) |
525 |
- Controlled by step-less frequency conversion and pneumatic devide, and it adopts electronic automatic counter.

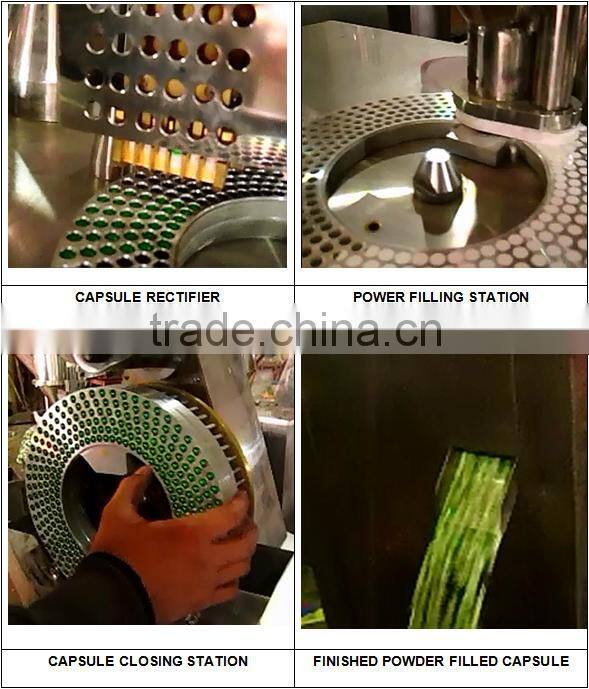

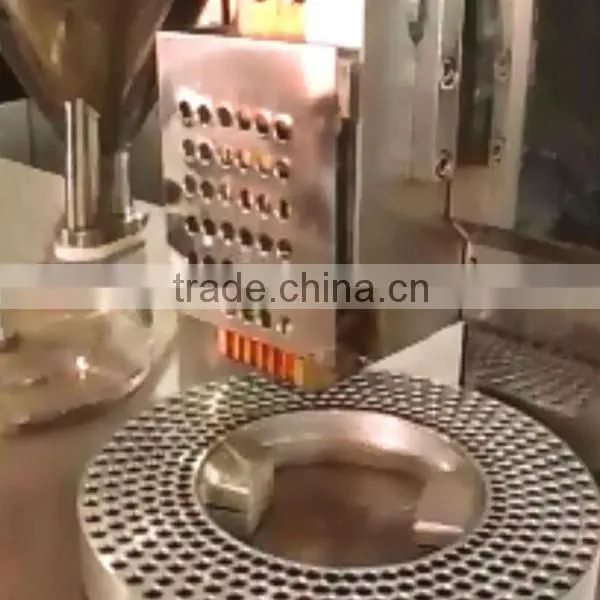

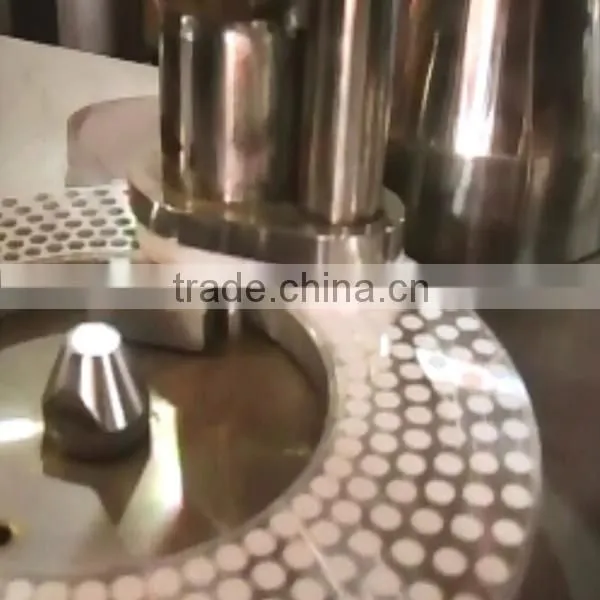

- Can finish position, separation, filling, locking of capsules.
- Filling dosage is accurate, and it can fill grains or powder.
- Modified design of drug hopper reduces time for dismantling and unloading of powder.
