AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES

AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES thumbnail-1
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES thumbnail-2
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES thumbnail-3
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES thumbnail-4
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES thumbnail-5
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES thumbnail-6
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES photo-1
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES photo-2
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES photo-3
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES photo-4
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES photo-5
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Commodity, Food, Medical
Packaging Type:
Bottles, Other, Bottles, Ointment
Contact Supplier Request Quote Chat Now
Nanjing Huale Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Commodity, Food, Medical
Packaging Type Bottles, Other, Bottles, Ointment
Packaging Material Paper
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Power 0.75 KW
Place of Origin Jiangsu, China
Brand Name HUALE MACHINERY
Model Number DXH-120WP
Weight 1600KG
Dimension(L*W*H) 4200*1200*1600mm
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas

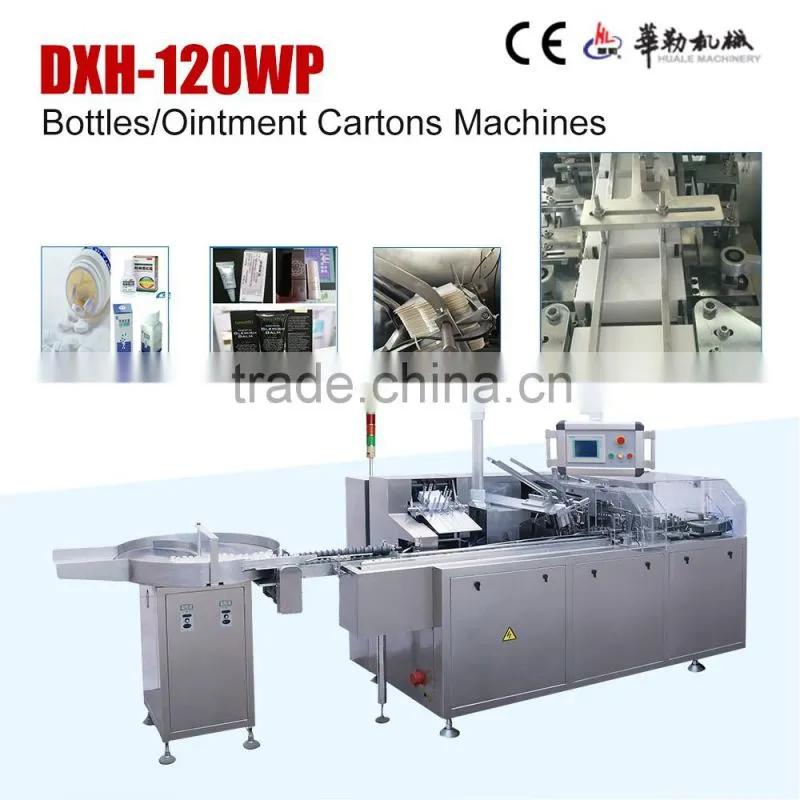

Product Name: AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES



AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINES



Bottle or Ointment Cartons Machine is suitable for packing different sizes and specifics of tubes or similar objects with automatic leaflet folding inserting, carton opening, object cartoning, batch number embossing and cartooning sealing (hot glue sealing is an optional for the machine). It adopts PLC control with touch screen operation with all working stations equipped electronic sensor for running status monitoring.



MAIN TECHNICAL PARAMETERS

Cartoning speed

50-100 Carton/min

Carton

Request

250-350g/m2(addcording to carton size)

Specification

(50-200)×(20-80)×(14-45)mm

Leaflet

Request

55-65g/m2

Folded Leaflet Specification(1-4) Fold

(80-240)×(90-190)mm (L×W)

Compressed air

Pressure

≥0.5Mpa

Consumption

120-160L/min

Motor Power

220V 50HZ 0.75kw

Dimension

4200×1200×1600mm (L×W×H)

Net weight

1600kg





MACHINE ADVANTAGE

  • It adopts PLC automatic control and touch screen operating system with speed adjusting by inverter.
  • Main transmission system gets overloading protecting device
  • Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.
  • The machine gets stable performance, easy to change different sizes of products
  • Detection and Rejection of cartons which gets no object fed or leaflet fed.
  • Rotary feeder with speed adjusting motor for feeding different sizes of tubes or bottles
