OUTPUT 7200 BOXES PER HOUR AUTOMATIC BLISTER CARTONS MACHINES
US$ 1 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Commodity, Food, Medical
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MULTIFUNCTION CARTONS MACHINESUS$ 1 - 100,000MOQ: 1 Set -
AUTOMATIC BOTTLES OR OINTMENT CARTONS MACHINESUS$ 1 - 100,000MOQ: 1 Set
-
ALU-ALU PACKAGING MACHINESUS$ 1 - 100,000MOQ: 1 Set
-
TROPICAL BLISTER PACKAGING MACHINEUS$ 1 - 100,000MOQ: 1 Set
-
HARD CAPSULE FILLING MACHINESUS$ 1 - 100,000MOQ: 1 Set
Condition
New
Application
Beverage, Commodity, Food, Medical
Packaging Type
Cartons
Packaging Material
Paper
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V/380V
Power
0.75 KW
Place of Origin
Jiangsu, China
Brand Name
HUALE MACHINERY
Model Number
DXH-120WB
Weight
1500KG
Dimension(L*W*H)
3100*1100*1600mm
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas
AUTOMATIC BLISTER CARTONS MACHINES
Main technical parameters
Cartoning speed |
50-120 Cartons/min |
|
Carton |
Request |
250-350g/m2(addcording to carton size) |
Specification |
(50-200)×(20-80)×(14-45)mm |
|
Leaflet |
Request |
55-65g/m2 |
Folded Leaflet Specification(1-4) Fold |
(80-240)×(90-190)mm (L×W) |
|
Compressed air |
Pressure |
≥0.5Mpa |
Consumption |
120-160L/min |
|
Motor Power |
220V 50HZ 0.75kw |
|
Dimension |
3100×1100×1600mm (L×W×H) |
|
Net weight |
1500kg |
|
Performance and characteristic
- It adopts PLC automatic control and touch screen operating system with speed adjusting by inverter.
- Main transmission system gets overloading protecting device
- Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.
- The machine gets stable performance, easy to change different sizes of products
- Detection and Rejection of cartons which gets no object fed or leaflet fed.
- Servo motor feeding system is apply to feed different styles of blister plate
Applications

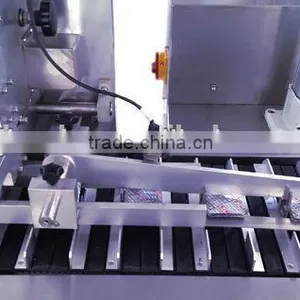

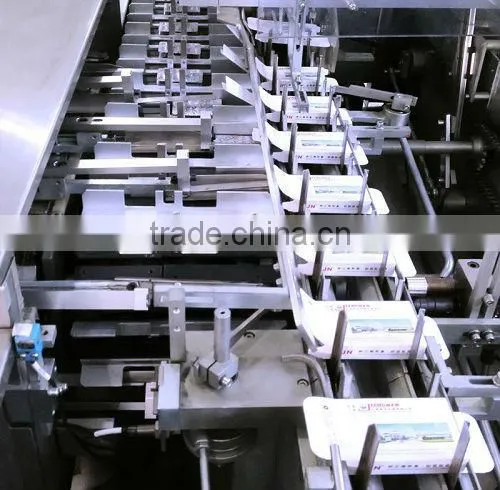

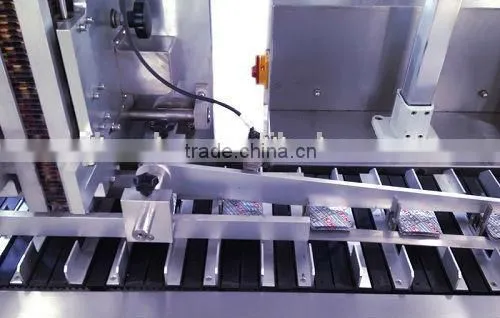

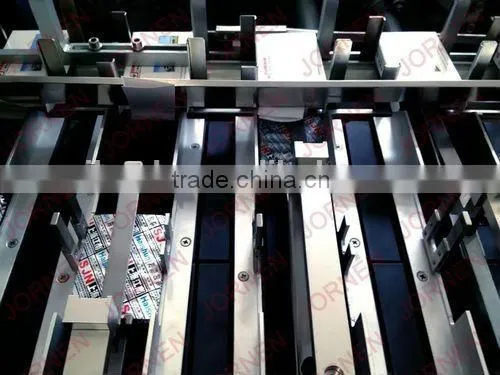

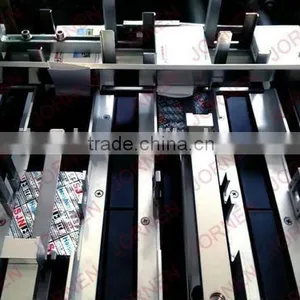

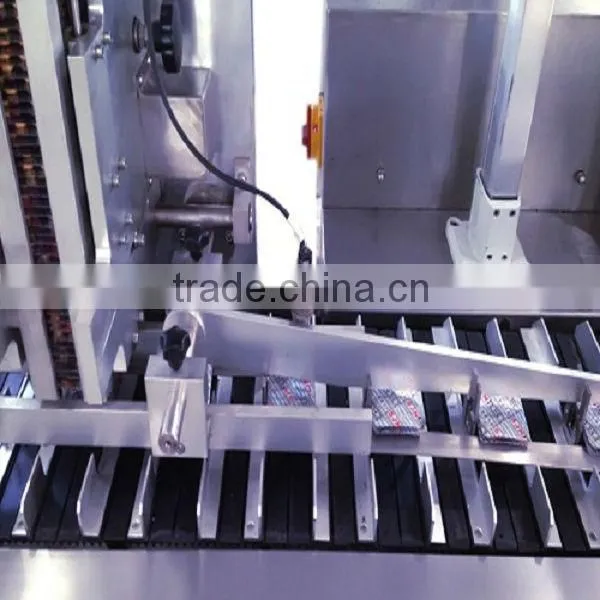

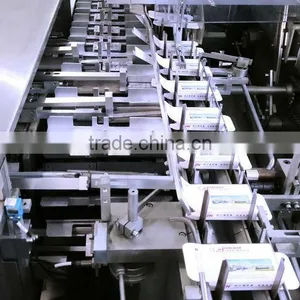

The machine is suitable for packing different sizes and specifics of blister plate or similar objects with automatic leaflet folding inserting, carton opening, object cartoning, batch number embossing and cartooning sealing (hot glue sealing is an optional for the machine). It adopts PLC control with touch screen operation with all working stations equipped electronic sensor for running status monitoring. The machine can both work isolated and connect to blister packaging machine as production line.
Work
Other machine
