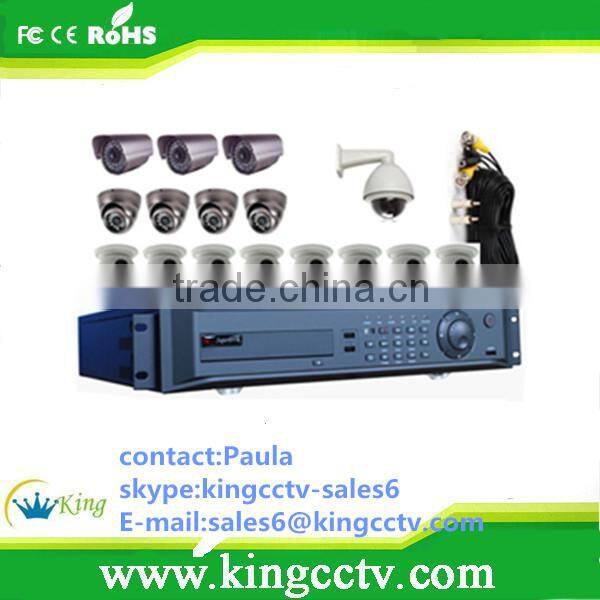

16ch 16Cam 960H CCTV DVR System cctv kit HK-S8216F-kit

Name: 16ch 16Cam 960H CCTV DVR System cctv kit HK-S8216F-kit
Brand: KingCCTV
Price: USD $1 - 9,999 / Piece

FOB Price

USD $1 - $9,999 / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shenzhen China
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

KingCCTV

Model Number:

HK-S8216F-kit

Product Description

Specifications

1 piece of 960H DVR: HK-S8216F
8 pieces of dome cameras: HK-BG312
4 pieces of IR cameras: HK-S312
3 pieces of Day/Night 50me

16ch 16Cam 960H CCTV DVR System cctv kit HK-S8216F-kit

DVR SPECIFICATIONS

Model #	HK-S8216F × 1 piece
Compression Format	H.264, supports VBR as well as CBR
Operating system	Embedded LINUX
Video Input	16CH BNC(1.0VP-P, 75Ω)
Video Output	1 BNC, 1 VGA, 1 HDMI, 1 SPOT
Audio Input	16CH BNC
Audio Output	1ch BNC
Audio Compression	G.711A
Audio Bidirectional Talk	3.5mm MIC Input Interface
Alarm Input	16CH
Alarm Output	4ch
Preview Resolution	960H: PAL(960576), NTSC(960480); FD1: PAL(704576), NTSC(704480); VGA/HDMI: 1920*1080
Preview Display	1ch/ 4ch/ 8ch/ 9ch/ 12ch/ 16ch
Preview Privacy Masking	4 zones Maximum, On DVR
Recording Resolution	16ch FD1/CIF/960H/Q960H
Record Mode	Manual, Schedule, Motion, Alarm
Record Interval	Pre-record, 5~30s; Post-record, 0~180s
Playback Channel	8ch/16ch 960H Full Channels Realtime Playback
Playback Search Mode	Time, Date, Record Mode, Smart Search, Quick Playback
Playback Privacy Masking	4 Zones Maximum, On DVR and PC
3G Network	Support 3G Modem
Remote Operation	WEB(FireFox, Chrome, Internet Exploerer, Safari)
Mobile Support	Support (IPhone, Andorid, Ipad)
Backup	USB Disk/ USB HDD/ USB CD&DVD-RW/ eSATA / Internal SATA burner/ Network Download
HDD	8 HDD(Max support 4TB each), 2 eSATA(Front 1,Back 1)
Network Interface	1 RJ-45 10/100M/1000M adaptive Ethernet Interface
USB Interface	4 Interfaces( Front 2 & Back 2)
Auxiliary Interface	1 RS-485(FDX), 1 RS232, 1 IR Extension Cord
Storage Temperature& Humidity	-20~65°C/ 10~90% RH (No Condenser)
Operation Temperature& Humidity	-10~45°C/ 15~85% RH
Power Adapter	220/110V, 50/60HZ
Power	71W
Dimension(LWH)	440 * 440 * 88mm
Weight	Gross weight, 10kg; Net weight, 7.1kg

CAMERA(HK-BG312) SPECIFICATIONS

Model #	HK-BG312 × 8pcs

Image Sensor	1/3" sony super HAD CCD
Total Pixels	NTSC: 537(H)x505(V) PAL: 537(H)x597(V)
Scanning System	NTSC: 525 lines, 60 fields/sec, PAL: 625 lines, 50 fields/sec
Sync System	Internal
Minimum illumination	0.5 Lux F1.2
Resolution	420 TVLs
White Balance	ATW / AWC switchable
Gain Control	AGC ON / OFF switchable
S/N Ratio	48dB (AGC OFF)
Electronic Shutter	NTSC: 1/60~1/120,000 sec; PAL: 1/50~1/120,000 sec
Auto Iris	VIDEO/DC
Lens Mount	C/CS
B.L.C. Function	ON/OFF switchable
Video Output	Composite 1.0V p-p at 75Ω
Gamma Correction	0.45
Operation Temperature	-10 ~ 50 °C
Operational Humidity	within 85%RH
Power Supply	DC12V/180mA
Dimension	112 * 64 * 55mm
Net weight	260g

CAMERA(HK-S312) SPECIFICATIONS

Model #	HK-S312 × 4pcs

Image Sensor	1/3" Sony Super CCD
Total Pixels	NTSC: 510(H)x 492(V), PAL: 500(H)x 582(V)
Scanning System	NTSC: 525 lines, 60 fields/sec, PAL: 625 lines, 50 fields/sec
IR Led	850nm*24PCS LEDs
IR Visible Distance	20M (Lens 8mm)
Sync System	Internal
Minimum illumination	0.5 Lux F1.2
Resolution	420 TVLs
White Balance	ATW / AWC switchable
Gain Control	AGC ON / OFF switchable
S/N Ratio	48dB (AGC OFF)
Electronic Shutter	NTSC: 1/60~1/120,000 sec; PAL: 1/50~1/120,000 sec
Auto Iris	VIDEO/DC
Lens Mount	C/CS
B.L.C. Function	ON/OFF switchable
Video Output	Composite 1.0V p-p at 75Ω
Gamma Correction	0.45
Operation Temperature	-10 ~ 50 °C
Operational Humidity	within 85%RH
Power Supply	DC12V/180mA
Net weight	385g

CAMERA(HK-H312) SPECIFICATIONS

Model #	HK-H312 × 3pcs

Image Sensor	1/3" Sony Super HAD CCD
Total Pixels	NTSC: 510(H)x 492(V), PAL: 500(H)x 582(V)
Scanning System	NTSC: 525 lines, 60 fields/sec, PAL: 625 lines, 50 fields/sec
IR Led	850nm*34PCS LEDs
IR Visible Distance	50M (Lens 8mm)
Sync System	Internal
Minimum illumination	0.5 Lux F1.2
Resolution	420 TVLs
White Balance	ATW / AWC switchable
Gain Control	AGC ON / OFF switchable
S/N Ratio	48dB (AGC OFF)
Electronic Shutter	NTSC: 1/60~1/120,000 sec; PAL: 1/50~1/120,000 sec
Auto Iris	VIDEO/DC
Lens Mount	C/CS
B.L.C. Function	ON/OFF switchable
Video Output	Composite 1.0V p-p at 75Ω
Gamma Correction	0.45
Operation Temperature	-10 ~ 50 °C
Operational Humidity	within 85%RH
Power Supply	DC12V/600mA
Dimension	122 * 85 * 75mm
Net weight	Gross weight, 0.9kg; net weight, 0.86kg

CAMERA(HK-GV8272) SPECIFICATIONS

Model No.	HK-GV8272 × 1pcs

Image Sensor	1/4" Sony Exview CCD
Total Pixels	440,000
Resolution	540TVLs
Lens	f=3.9~85.8mm
Zoom	27X Optical Zoom 10X Digital Zoom
All-in-one camera	LG or CNB
Horizontal Angle of View	54.0°(wide),2.5° (tele)
Minimum illumination	Color 0.003Lux B/W 0.0001Lux
S/N Ratio	> 50dB
Electric shutter	1/50~1/10000s
Privacy Zone	No
IR Sensitive	No
Day/Night	Yes
Black light compensation	ON/OFF
Video Connector	1.0±0.2Vp-p 75
Black light compensation	BNC
Focusing system	Auto/Manual
White Balance	Auto/Manual
Temperature Storage	-45 ~ 65 °C
Temperature Operation	-40 ~ 60 °C
Package	Box size: 34 * 36 * 41cm / 45.5 * 49 * 62cm (2pcs) / 49 * 62 * 71cm (4pcs); gross weight, 10kg/pc, 16kg(2pcs); volume weight: 10.04kg/pc
