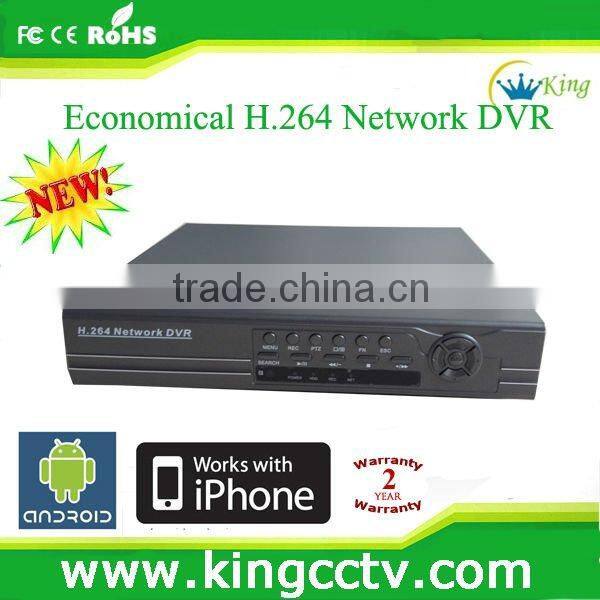

Mini Dvr Dvr Cms Free Software 3G Modem DVR HK-S2108F-S

FOB Price

US$ 63 - 65 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Hyking
Model Number	HK-S2108F-S

Product Description

Specifications

8chs mini dvr 3G Modem DVR HK-S2108F-S
-CIF,Half D1,D1 Standalone DVR
-Support 3G Mobile
-high performance DVR

h.264 Mini dvr dvr cms free software 3G Modem DVR HK-S2108F-S

Operating System: Embedded LINUX;
Network Interface :10/100M Base-T, Ethernet interface, Browse via IE
Video Input:4/8/16 pairs;
Mobile Support:3G Mobile(Symbian&Windows CE& iPhone & Google Android)
Multi-language: English,Spanish,Portuguese,Italian,
Turkish,Russian,Persian,Thai,Hebrew etc.
Compression Resolution: H.264,CIF,Half D1,D1 record support

Main Features:

8chs Video&Audio, H.264 Compression
Record: 200/240fps@CIF, 50/60fps@Half D1, 25/30FPS@D1
8 Chs Playback

Features:

(1) H.264 compression algorithm ideal for standalone DVR

(2) Support Multi-language: English,Italian,Turkish,Russian,French,Portuguese,Spanish, Polish, Hebrew, Thai,Traditional Chinese,Japanese.
(3) New standard for professional DVR with high performance and competitive price.
(4) Support 3G Mobilephone Surveillance with Symbian , Windows CE,Iphone , Google Android
(5) Realtime live display up to 4/8/16 camera with 720P high definition.
(6) 1,2,4,8,16 channel simultaneous realtime playback
(7) Support CIF realtime recording, support HD1,D1 non realtime.
(8) Dual encoding streams flexible for network transmission and mobile phone monitoring.
(9) Multiple function: Live, Recording, Playback, Backup & Remote access.
(10) Smart video detection: motion detection,camera blank, video loss.
(11) Powerful network software:built-in web server, multi-DVR client, MSS(mobile phone surveillance software) & CMS.
(12) Supports SATA HDD (maximal value of each hard disk is up to 2TB)

Specifications:

Model/Item	HK-S2108F-S
Compression Format	H.264 / G.711
Operating system	Embedded LINUX
Main Processor	High-performance embedded microcontroller
Control Mode	Front panel, USB mouse, IR remote control, Keyboard,Network
System Resources	Pentaplex function: live, recording, playback, backup & remote access
Video Input	BNC x 8 1.0VP-P,75Ω
Video Output	1 TV, BNC(1.0Vp-p, 75Ω), 1 VGA
Video Standards	PAL(100f/s) NTSC(120f/s)
Video Resolution	D1/4CIF(704576/704480),HD1(704288/640240), CIF(352288/352240)
Main Stream Record Speed	CIF:(1-25/30f/s) HD1:(1-12/15f/s) D1:(1-5f/s/ch)
Extra Stream Speed	QCIF(1~25/30fps)
Video Image Quality	Super Best, Well, Good,Medium, Normal and bad
Recording Mode	Manual / Timer / Motion
Audio Input/Output	4 audio input, 1 audio output (RCA)
Hard Disk Storage	1 SATA HDD (capacity up to 2TB)
Alarm Input/Output	4 alarm input,1alarm output
Multiplex Operation	Live display / record / playback / backup / network operations
Playback mode	Multiple slow and rapid play speeds, manual and single-frame play modes,and support positioning the time by driving the sliding bar
Backup Device	USB 2.0 flash drive / USB moving Hard disk / Network
Pre-alarm Recording	recording for 5 seconds before alarming
Network Protocol	TCP/IP, PPPOE and DDNS
Ethernet	10/100 Base-T. Supports remote control and live view via Ethernet
Web Interface	Internet Explorer (5 users access simultaneously) Operating System: Windows Vista / XP / 2000
VGA Interface	Built-in (optional)
IR Remote Control	YES (IR receiver built-in)
Video Loss Detection	YES
Video Adjustable	Hue / Saturation / Contrast / Brightness
PTZ Control	YES
USB Mouse	YES
Power Source	12V DC(¡À10%)
Key Lock (Password Protection)	YES
System Recovery	System auto recovery after power failure
Dimensions (mm)	1U,315mm(W)x52mm(H)x224mm(D)
Working Temperature	-10~+55 degree
Working Humidity	10%- 90%
Weight	Gross weight:3.0kg(without HDD)

DVS real host,super-network functions,Support IE browser centralized monitoring and CMS Software for multiple DVR from diferent place (up to 64 DVR view per screen) simultaneously, per screen can monitoring and playback from multiple DVR images, thorough solve most of the DVR can only manage a single DVR,as well as monitoring and playback can not be a problem at the same time

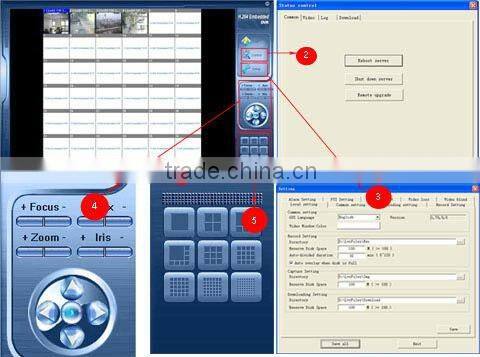

CMS Manager Software

Login
Two logging modes are provided: by IP address and by domain .

Control
COMMON: Reboot server,shutdown server,remote upgrade.
VIDEO:remotely adjust the video frequency, brightness, chromaticity, contrast and saturation degree to the best visual effect
LOG:The user can check the logs in the hard disk on the DVR
DOWNLOAD: remotely download files from the hard disk on the DVR,and save them locally for backup or play.

Setup

Common setup, coding setup, visual recording setup, alarm setting, cradle head setup, movement monitoring, video loss, and shielding alarm

PTZ Control

ZOOM,FOCUS,IRIS,PANT,TITL,ZOOM

Window browsing mode

switching: single windows, 4 windows, 6 windwos, 8 windows, 9 windows 16 windows,32 windows and 64 windows

Toolbar

Start,pause,Stop,Slow Play,Fast Play Single Frame,Screenshot,Video Recording,Playbak,Volume Control,Total time for file playing.

Software / User's Manual Download

KingCCTV HK-S2104F/S2108F Standalone DVR Manual(1,637KB)

Mobile Manual for KingCCTV HK-S2104F/S2108F Standalone DVR (957KB)

CMS Software for Standalone DVR HK-S2104F/S2108F(1,011KB)
