High Quality DVR Card High Performance Software Compression PCI DVR Video Card Real Time Dvr Board
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HK
Model Number:
HK-804S, HK-808S, HK-816S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hikvision 16 Channel PCI-E Hardware Compression CardUS$ 1 - 500MOQ: 2 Pieces -
Hikvision Hardware Compression DVR Card 16 Channel DS-4016HCI With Free SDKUS$ 400 - 500MOQ: 1 Piece
-
Video Capture Card DS-4004HCI H.264 D1 Best Quality Hardware DVR Board Hikvision DVR CardUS$ 150 - 200MOQ: 1 Piece
-
Dvr Cards With Software: DVR 8104US$ 1 - 500MOQ: 2 Sets
-
DVR Card: HK-808SUS$ 31.5 - 32.5MOQ: 2 Pieces
Place of Origin
Guangdong, China
Brand Name
HK
Model Number
HK-804S, HK-808S, HK-816S
High quality DVR Card High Performance Software Compression PCI DVR Video Card real time dvr board

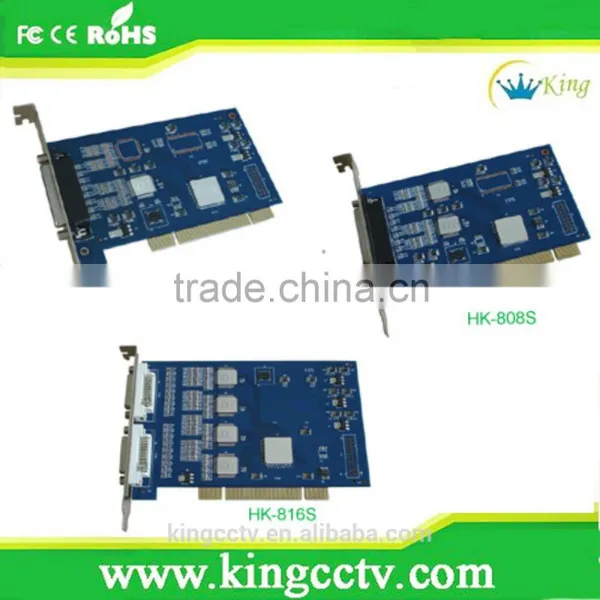

Available Models:
Cards are stackable to obtain 24 channels maximum
HK-804S: 4 channels video and audio CIF(real time)
HK-808S: 8 channels video and audio CIF(real time)
HK-816S: 16 channels video and audio CIF(real time)
Features & Functions :
- Real-time video and audio compression
- 4CIF preview resolution
- Adaptor high quality Techwell TW2815 chipset
- CIF compression Resolution: 352x240 (NTSC), 352x288 (PAL)
- Support Intel, AMD, SIS, VIA, NVidia chip Mainboard; support Intel, AMD CPU
- Support WINDOWS 2000/XP/VISTA operating system, support widescreen high resolution LCD
- Setable brightness, contrast, saturation and hue of video signal
- Record format: AVI, can be played by Windows Media Player, Storm player, Nero, KMP etc.
- Support motion detection
- Multi screen monitoring, 1,4,9,16,24 split Screen available, support rotate display
- Dual stream encode technology:Primary stream is for local store, Second stream is for narrowband networking.
- Free Software upgradeable
Specifications:
| Model No. | HK-804S | HK-808S | HK-816S |
| Video Format | PAL and NTSC | ||
| Video Input | 4chs | 8chs | 16chs |
| Audio Input | 4chs | 8chs | 16chs |
| Preview Resolution | D1: 704*576(PAL), 704*480(NTSC) | ||
| Preview Frame Rate | 100F/s(PAL), 120F/s(NTSC) | 200F/s(PAL), 240F/s(NTSC) | 400F/s(PAL), 480F/s(NTSC) |
| Video Compression | Real time H.264 | ||
| Compression Resolution | CIF:352*288(PAL), 352*240(NTSC) | ||
| Recording Frame rate | 100F/s(PAL), 120F/s(NTSC) | 200F/s(PAL), 240F/s(NTSC) | 400F/s(PAL), 480F/s(NTSC) |
| Image quality | 10 Bits ADCs super high quality | ||
| HDD | 50-500M/H/CH | ||
| Hexaplex operation | simultaneous record, live, playback, backup, control,& remote access | ||
| PTZ control | Yes | ||
| DDNS | Build-in DDNS, easy to view via Interent | ||
| Working Temperature | -10 ~ +50°C | ||
| Working Humidity | 10%- 90% | ||
| Power Consumption | Less than 1W | ||
| Operating System | Windows 2000/ XP/ VISTA | ||
| Computer Configuration (Recommend) | Mainboard: Intel, AMD, SIS, VIA Chipset; Memory: 512MB; Display Adapter: Geforce, ATI etc | ||
Business term:
- 1 year warranty
- 3-5 working days for the delivery
- FOB Shenzhen
- Payment term : T.T, Western union etc.
Warranty term:
DVR cards come with 1 year warrenty. When there is defective goods from us, customers can send the dvr cards to us for repair within warrany time and without being destroyed by rough handling from the user.
