Popular 16ch H.264 All Channel D1(4CIF) Realtime Dvr Card(VEC8016HB)

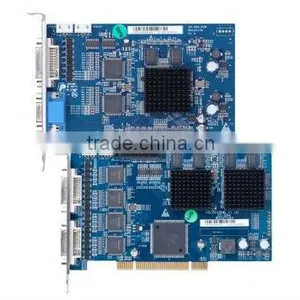

Popular 16ch H.264 All Channel D1(4CIF) Realtime Dvr Card(VEC8016HB) thumbnail-1
Popular 16ch H.264 All Channel D1(4CIF) Realtime Dvr Card(VEC8016HB) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hyking
Model Number:
VEC8016HB
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hyking
Model Number VEC8016HB

Specifications

16ch DVR Cards
1)8/16ch video & audio
2)H.264 Dual-stream encoding
3)All channel D1(4CIF) realtime
4)1/2ch TV Matrix

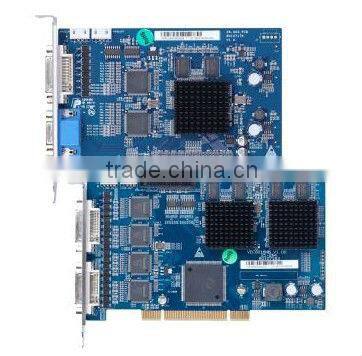

Dahua 16ch Full D1 H.264 Realtime CCTV DVR Cards: VEC8016HB   popular 16ch h.264 All channel D1(4CIF) realtime dvr card(VEC8016HB)



Overview:



• 8/16ch video & audio
• H.264 & Dual-stream encoding
• All channel@D1(4CIF) realtime recording
• 1/2ch TV Matrix output
• Windows/Linux, PCI



Features:

> Audio and video hardware compression card, using advanced standard H.264 video compression algorithm to achieve excellent image quality and high compression ratio
> Support up to full D1 realtime live view
> 8/16 channel full D1 video realtime compression, support dual-stream
> 8/16 channel G.711 audio compression
> Support motion detection, video loss and camera masking function; support OSD, logo overlay, video frame rate, frame rate dynamic setup and etc
> Support RAW video and JPG snapshot function
> Support TV or VGA output with multi split and tour display
> Standard PCI port, compatible with all Dahua’s compression cards
> SDK in Windows OS or Linux OS compatible with the previous released version, fluent data interfaces and suitable for the 2nd development



Technical Specifications:

Model DH-VEC8008HB DH-VEC8016HB
General
Encoder SoC
PCI Standard PCI 2.2
Video
Input 8 channel, BNC(1.0Vp-p, 75) 16 channel, BNC(1.0Vp-p, 75)
Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Preview Resolution 4CIF(D1)/CIF/QCIF, Realtime
Compression H.264
Encoding Resolution 4CIF/D1(704×576/704×480), Half-D1(352×576/352×480), 2CIF(704×288/704×240), CIF(352×288/352×240), QCIF(176×144/176×120)
Encoding Speed Main Stream: 4CIF(D1)/Half-D1/2CIF/CIF/QCIF with 25/30fps
Extra Stream: CIF/QCIF with 25/30 fps
Bit Rate 32Kbps~4Mbps
RAW Stream Support, Full-channels at 4CIF(D1)/CIF/QCIF
Output 1 channel TV(BNC)/1 channel VGA 2 channel TV(BNC)
1/4/8/9 display split, Support Tour function 1/4/8/9/16 display split, Support Tour function
Audio
Input 8 channel, BNC(2.0Vp-p 1000) 16 channel, BNC(2.0Vp-p 1000)
Compression PCM(G.711)
Sampling Rate 16bit/8KHz
Bit Rate 64Kbps
System Requirement
Operating System Windows 2000/XP/2003/Vista/7, Linux
CPU Intel or AMD
Motherboard Based on Intel or AMD chipset, PCI slot
Memory 1GB or above
Graphics AMD, NVIDIA, Intel graphics cards, memory 256MB or above
Environmental
Working Environment -10~+55°C / 10~90%RH / 86~106kpa
Power Requirement 5V±10%, 3.3V±10%
Power Consumption 8W 12W
Dimension 145mm x 93mm 175mm x 106.6mm

 popular 16ch h.264 All channel D1(4CIF) realtime dvr card(VEC8016HB)
