Centrifuge Machine for Ink Separation
US$ 8,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Centrifuge
Place of Origin:
Liaoning, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oil Solids CentrifugeUS$ 4,000 - 8,000MOQ: 1 Set -
GQ105 High Speed Tubular CentrifugeUS$ 5,000 - 10,000MOQ: 1 Set
-
High Efficiency Tubular CentrifugeUS$ 5,000 - 10,000MOQ: 1 Set
-
GF105 High Speed Tubular CentrifugeUS$ 5,000 - 10,000MOQ: 1 Set
-
Centrifugal Machine for Liquid-liquid SeparationUS$ 5,000 - 10,000MOQ: 1 Set
Condition
New
Type
Centrifuge
Place of Origin
Liaoning, China
Brand Name
HJ
Model Number
GF150
Voltage
110-480v
Power(W)
3.0
Weight
510
Dimension(L*W*H)
600*1000*1600
Certification
ISO/SGS
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
|

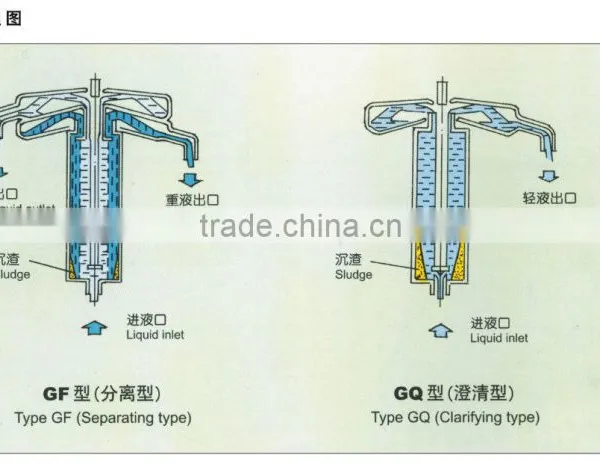

Operation of Tubular Centrifuge
The Tubular Centrifuge comprises of bowl, specially designed slow acceleration motor & starter. The bowl rotates at 15000 r.m.p. generating a centrifugal force of 16000 times the gravitational force.
The liquid mixture to be separated enters the nozzle of the centrifuge placed at the bottom of the base. The centrifugal force acts on the liquid entering and separates the two liquids according to their
specific gravities. The lighter liquid forms the inside layer and heavier liquid forms the outer layer.

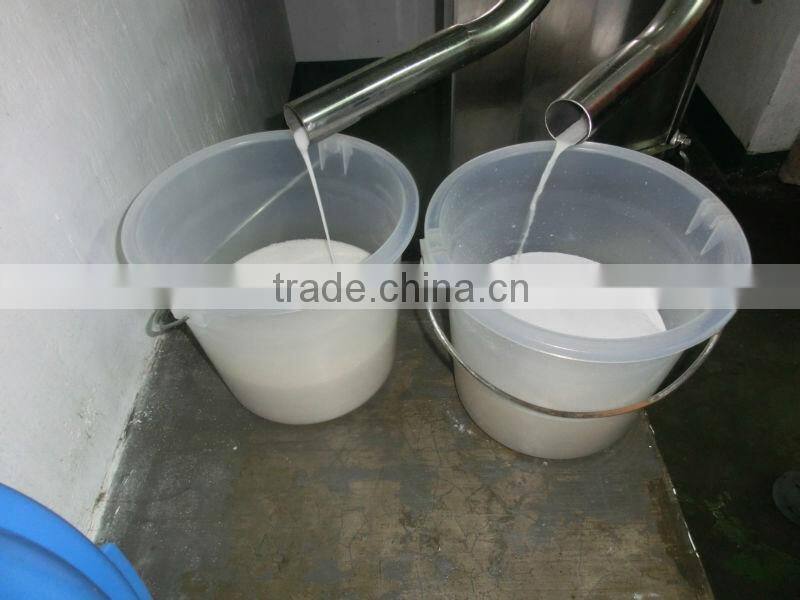

Since the mixture is entering continuously in the bowl, two phases are discharged continuously from two separate outlets provided on the top portion of the machine. During clarification job, one discharge

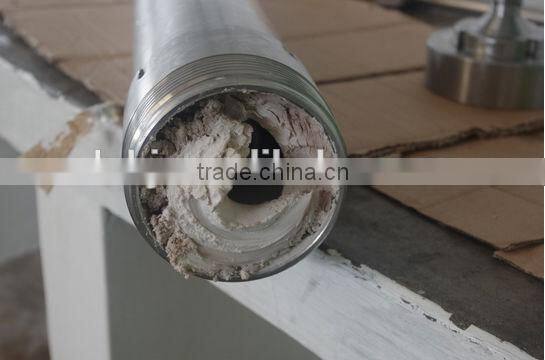

of clarified liquid is possible. Solids accumulated inside the bowl can be removed manually after stopping
the machine.
Machine Assembly Components: The bowl which is rotating at a speed of 15000 r.p.m is made out of centrifugal castings and consists of the top cover, the bottom cover, three wings assembly and the main motor.
Applications:
|
| Type | GF/GQ150 |
| Inner diameter(mm) | 150 |
| Height of the drum(mm) | 730 |
| Sedimentation volume(L) | 10 |
| Max speed(r/min) | 16000 |
| Maximum separation factor | 21000 |
| Inlet nozzle | Φ6/8/10/12 |
| material inlet pressure(Mpa) | ≥0.05Mpa |
| Capacity(L/H) | 3200 |
| Motor model | 3 phase two pole motor |
| power | 3.0Kw |
| Dimension of the machine | 600*1000*1600mm |
| Machine weight | 510kg |
