Intelligent temperature controller with timer
1. What input signal does Intelligent temperature controller with timer support ?
AN808P temperature controller with timer support universal Tc, Rtd, linear signals ect.
2. Can the temperature controller work for ramp / soak steps control ?
Yes, the digital temperature controller can be set 50 programs segments at most. It can realize the ramps control. For example, it can used to control the temperature as below: Rise the temperature to 200℃ in 2 minutes , then rise the temperature to 500℃ in 30minutes , then keep the temperature at 500℃ for 60minutes , then lower the temperature to 80℃, then rise the temperature to 400℃ in 5 minutes ect. It can continue the cycle.
3. What output signal does the Intelligent temperature controller with timer have ?
It has relay , ssr , 4-20mA , 0-10V DC , SCR ect. Please inform us the output signal when placing order.
4. What is the power supply of ramp soak temperature controller ?
Our standard product is 100-240VAC/DC power supply , 24V AC/DC can be ordered.
5. Does the temperature indicator have RS485 commnication or 4-20mA transmition output ?
Yes , RS485 communication is available , also 4-20mA transmition output can be ordered
Technical parameter
| Power supply | 100~240VAC/DC or 24V DC |
| Control mode | ON/OFF control,PID heating control,PID cooling control,PID heating&cooling control |
| Communication | RS485 communication interface MODBUS protocol |
| Input Signal |
TC: K, J, R, S, B, T, N, E RTD: Cu50, Pt100,Cu100, Pt100 Linear voltage: 0~10V, 0~50mV Linear current: 4~20mA Linear resistance: 0~400Ω |
| Accuracy | 0.3%F.S |
| Panel protection level | IP65 |
| Working temperature | -20~50℃ |
| Humidity | 45~85%RH |
| Dielectric strength | Among power supply terminals,relay output terminals&signal terminals ≥2000VDC, between the reciprocally isolated weak signal terminals ≥600VDC |
| Weight | 0.5kg |

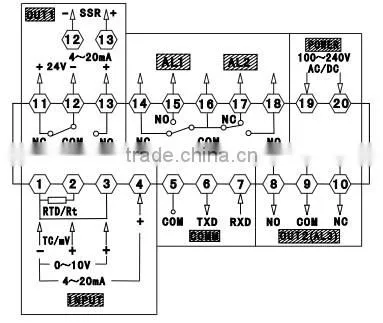

Wire Connection:
1. We offer 3 years warrany period for the AN808P ramp soak temperature controller .
2. We offer free pre-sales and after-sales service , please call to our technical support line :400-8866-986 or 86-760-88722603 if have any quesiton.
3. We offer OEM and ODM service for you , also offer design and reasearch new product for you .
4. We offer price , promotion and technical support , if you want to be our distributor in your country or region
