AN808P Digital programmable ramp soak temperature controller
1. What input signal does the Digital programmable temperature controller ?
AN808P temperature controller support universal Tc, Rtd, linear signals ect.
2. Can the temperature controller work for ramp / soak steps control ?
Yes, the digital temperature controller can be set 50 programs segments at most. It can realize the ramps control. For example, it can used to control the temperature as below: Rise the temperature to 200℃ in 2 minutes , then rise the temperature to 500℃ in 30minutes , then keep the temperature at 500℃ for 60minutes , then lower the temperature to 80℃, then rise the temperature to 400℃ in 5 minutes ect. It can continue the cycle.
3. Does the temperature controller support Pid cooling function ?
Yes. AN808P temperature instruments can work as Pid heating , pid cooling , pid heating and cooling , on-off control ect.
4. What output signal does the temperature indicator have ?
It has relay , ssr , 4-20mA , 0-10V DC , SCR ect. Please inform us the output signal when placing order.
5. What is the power supply of ramp soak temperature controller ?
Our standard product is 100-240VAC/DC power supply , 24V AC/DC can be ordered.
6. Does the temperature indicator have RS485 commnication or 4-20mA transmition output ?
Yes , RS485 communication is available , also 4-20mA transmition output can be ordered.
Please click here to view more products.
| Parameter | Specification |
| Power supply | 100-240V AC/DC or 24VAC/DC |
| Accuracy | 0.2%FS |
| Resolution | TC: 1℃, RTD: 0. 1℃ |
| Insulation impedance | 100MΩ |
| Total current | <30mA (220V AC) |
| Response time | ≤0.3S |
| Sampling cycle | 250ms |
| Power consumption | 5W |
| Withstand voltage | Power VS Relay contact VS Signal input terminal ≥2000VDC |
| Temperature excursion | ≤0.01%FS/℃ |
| Output specification |
Relay output: capacity 3A/250VAC 24V DC/5A Voltage output: 24VDC/30mA For driving SSR: 4-20mA Current output: drive load ≤600Ω |
| Input signal |
TC: K, J, R, S, B, T, N, E RTD: Cu50, Pt100,Cu100, Pt100 Linear voltage: 0~10V, 0~50mV Linear current: 4~20mA Linear resistance: 0~400Ω |
| Dielectric strength | 1500VAC 1 minute |
| Communication function | RS485 communication interface, Modbus-RTU protocol |
| Panel protection level | IP65 |
| Working ambient | -10~55℃ 30~85%RH |
| weight |
0.4kg |

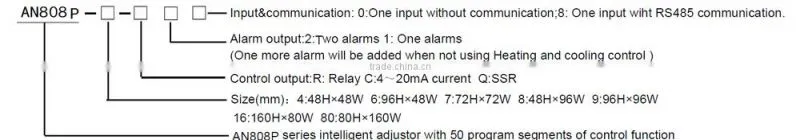

Model Illustration
Connection Drawing
1. We offer 3 years warrany period for the AN808P ramp soak temperature controller .
2. We offer free pre-sales and after-sales service , please call to our technical support line :400-8866-986 or 86-760-88722603 if have any quesiton.
3. We offer OEM and ODM service for you , also offer design and reasearch new product for you .
4. We offer price , promotion and technical support , if you want to be our distributor in your country or region .
Shipping by FedEx, DHL, TNT, UPS, EMS etc, by air, by sea... any way you prefer.
Sommy Automation Group Shares Co., Ltd is a professional manufacturer of various electrical and industrial instruments since 1988, which located in both Hongkong and mainland of China. SOMMY have six automatic production line with 15,000 square meters manufacture center. It integrates research and development, production and sales into a whole system. SOMMY enjoy good reputation both in domestic and foreigh automation and electric field for many years.
Sommy products mainly include: electricity transmitter, power recorder, flow totalizer, temperature controller, digital counter and timer, frequency/RPM meter, solid state relay and various sensors etc.
With principle of " Quality fist, technology guidance", we have made great success in designing various new products. We focus on quality and after-sales service of our products all the time.
Welcome enquiry and cooperation ! We will be always at your service!
