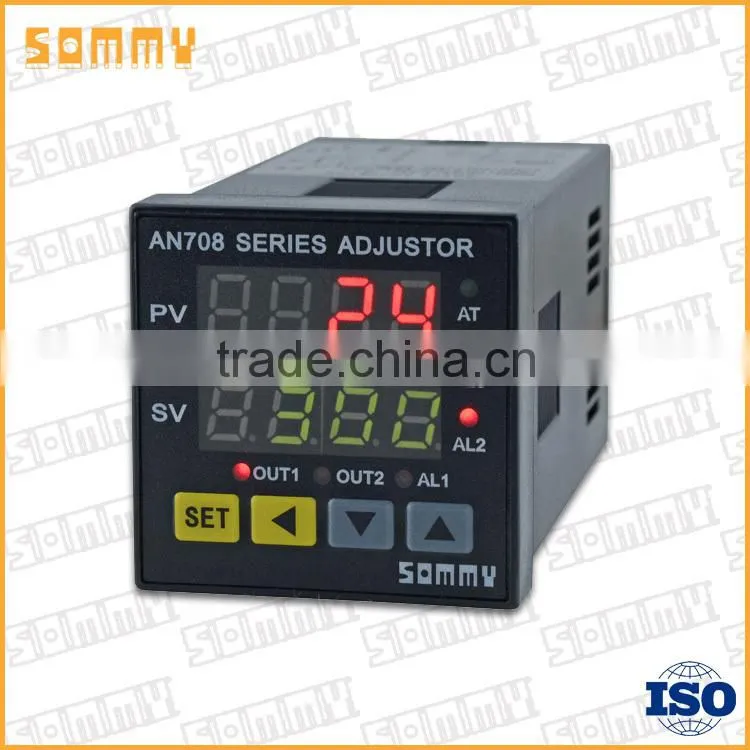

Intelligent Multi Output Pid Controller With RS485 Modbus-RTU

Name: Intelligent Multi Output Pid Controller With RS485 Modbus-RTU
Brand: SOMMY
SKU: 127940743

US$ 25 - 30 MOQ: 2 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SOMMY

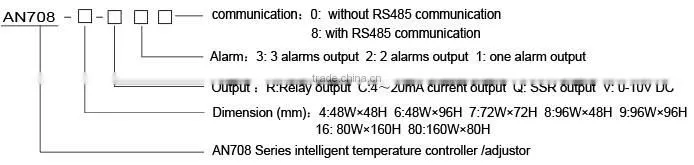

Model Number:

AN708-4-R/Q/C20

Zhongshan Sommy Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan/ShenZhen/GuangZhou/Hongkong/ShangHai/NingBo/QingDao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SOMMY

Model Number AN708-4-R/Q/C20

Usage Industrial

Theory Temperature Controller

Accuracy 2%FS

Temperature Range -199~1800℃

Intelligent multi output Pid controller with RS485 Modbus-RTU

Product Description

1.Universal signal input : thermcouple , Rtd , linear signals ect

2. With 4 digit Led display , control and multi alarms function

3. Control mode : Pid heating , pid cooling, pid heating and cooling , on-off control

4. Modularization output design , easy to change different output modules

5. RS485 Communication function, Modbus Protocol

6. Panel size: 48HX48W , 48WX96H, 72HX72W, 48HX96W, 96WX96H, 160WX80H (mm)

Technical Datasheet

Parameter	Specification
Power supply	100-240V AC/DC
Accuracy	±0.3%FS
Resolution	TC: 1℃, RTD: 0. 1℃
Insulation impedance	100MΩ
Total current	<30mA (220V AC)
Response time	≤0.3S
Power consumption	5W
Withstand voltage	Power VS Relay contact VS Signal input terminal ≥2000VDC
Temperature excursion	≤0.01%FS/℃

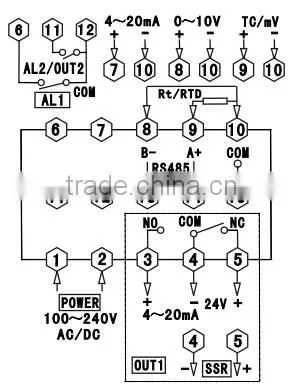

Output specification	Relay output: capacity 3A/250VAC 24V DC/5A Voltage output: 24VDC/30mA For driving SSR: 4-20mA Current output: drive load ≤600Ω
Input signal	TC: K, J, R, S, B, T, N, E, P RTD: Cu50, Pt100,Cu100, Pt100 Linear voltage: 0~10V, 0~50mV Linear current: 4~20mA Linear resistance: 0~400Ω
Dielectric strength	Between the connectors of power supply to relay output, power supply to signal input, relay output to signal input ≥2000VDC; Between the low voltage signal isolated with each other≥600VDC
Control mode	ON-OFF control, PID heating control, PID cooling control, PID heating&cooling control
Communication function	RS485 communication interface, Modbus-RTU protocol
Panel protection level	IP65
Working ambient	-10~55℃ 35~85%RH
Storing ambient	-20~60℃ 25~85% RH
