Panel Mounting Intelligent Pid Temperature Controller With RS485 Modbus
1. What is the input signal of the panel mounting intelligent Pid temperature controller ?
Universal TC and RTD input : ( K , J , E , T , S, PT100, CU100 , CU50 ) , 0-50mV , 0-400Ω .
please note that 0-10V DC , 4-20mA DC input signal can be ordered.
2. What is the output of the pid temperature controller? Advantage of the pid temperature controller ?
It has relay , ssr , 4-20mA , SCR output . One temperature controller has output , it can save stock and money
for you if you are a distributor or wholesaler.
For example: we have relay +ssr output , relay+4-20mA output , ssr+4-20mA output
3. Does the pid controller has programable alarm output ?
Yes , it has 2 alarm relay output . You can choose 1 alarm output or 2 alarms output.
4. What is the power supply of the pid controller ?
Our standard temperature controller is 100-240V AC/DC voltage supply , 24V DC is also available.
5. What is your warranty period for the temperature controller ?
We offer 3 years warranty period and lifetime maintainace .
6. What sizes do you have for TF series thermostat controller ?
Panel sizes: 36H*72Wmm , 48H*48Wmm , 48H*96Wmm , 96H*48Wmm,72H*72Wmm, 96H*96Wmm, 80H*160Wmm
7. Do you offer OEM or ODM service ?
Yes , we offer OEM and ODM service based on your requirement.
Model Illustration
Features
1. Universal input signal and multi output control mode.
2. With functions of measurement display, main control output, alarm relay control output.
3. Optional 4-20mA transmition output
4. Optional RS485 communication , Modbus-RTU
5. Diffferent types of PID arithmetic and with auto-tuning function
6. Economical and easy operation
Technical Parameters
| Input Signal | K , J , E , T , S, PT100, CU100 , CU50, 0-50mV , 0-400Ω,0-10V , 4-20mA |
| Relay capacity | AC 250V /3A Life of rated load>100,000 times |
| Power supply | AC/DC 100~240V (85-265V) or 24VDC |
| Power consumption | < 6VA |
| Work environment | Temperature:-10~50℃ ,Humidity:<85%RH |
| SSR output | DC 24V pulse voltage,load<30mA |
| Current output | DC 4~20mA load<500Ω |
| Communication port | RS485 port Modbus-RTU procotol |
| Insulation impedance | Input, output, power VS meter cover >20MΩ |
| Total weight | about 500g |

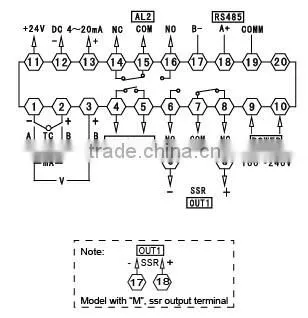

Wire Connection Drawing
