AN708-7 Series Intelligent PID Digital Temperature Controller

Name: AN708-7 Series Intelligent PID Digital Temperature Controller
Brand: SOMMY
SKU: 127941233
Availability: InStock

US$ 20 - 35 MOQ: 2 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SOMMY

Model Number:

AN708

Zhongshan Sommy Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SOMMY

Model Number AN708

Usage Industrial

Theory Temperature Controller

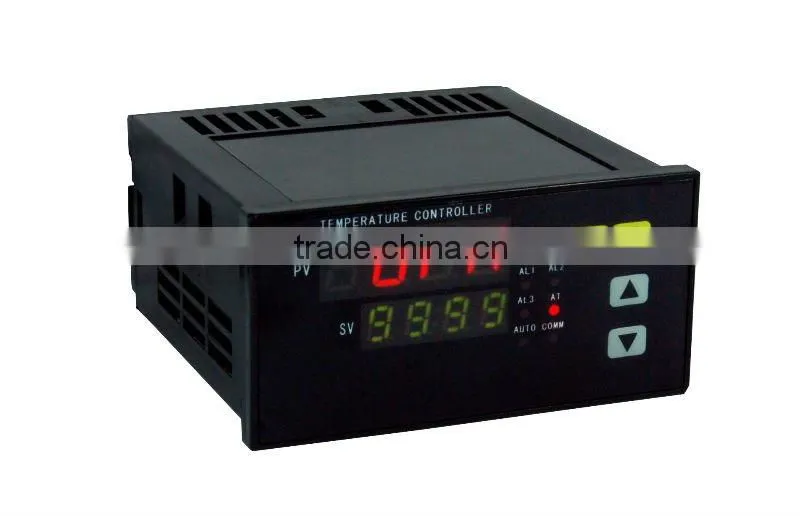

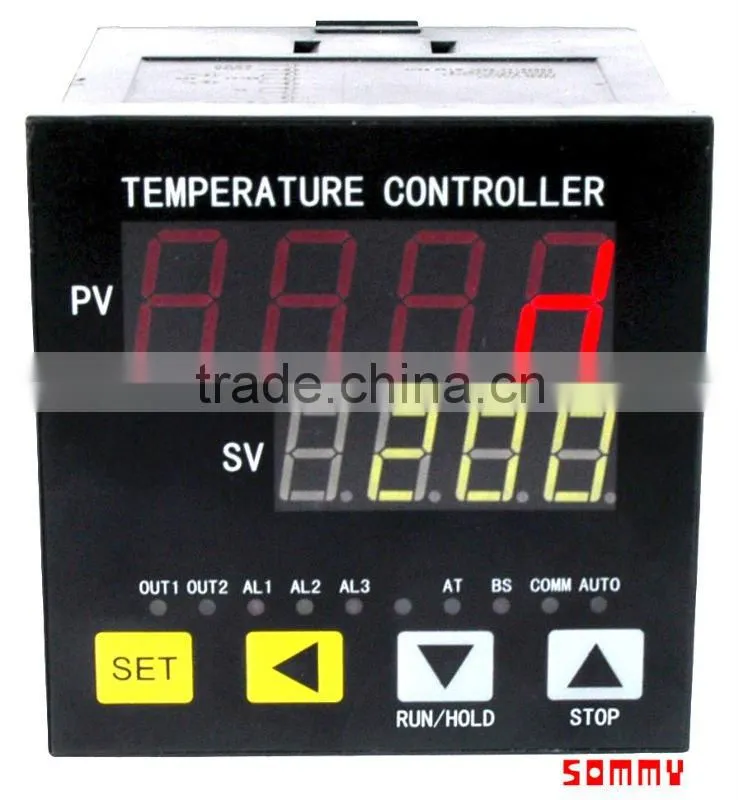

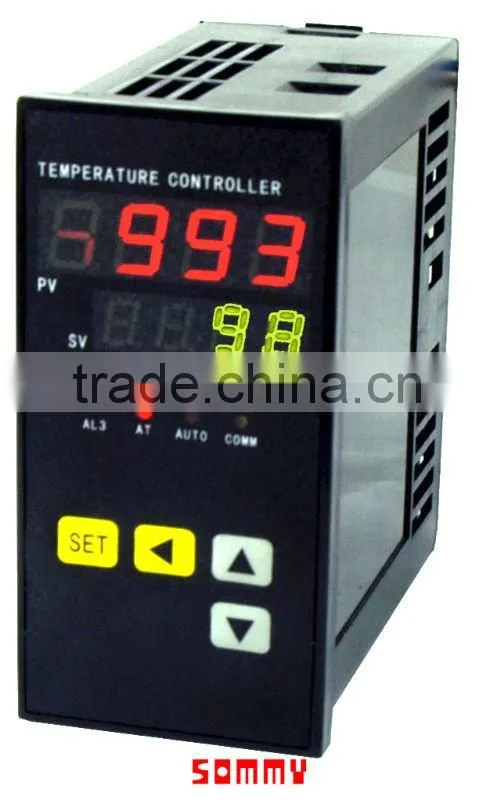

AN708 series intelligent PID digital temperature controller
Features:

*Universal signal input,suitable for most sensors.

*With digital LED display,control & multi alarms function

*Two freedom degree PID

* RS485 Communication function, Modbus Protocol

*Modularization output design, easy to change

* Panel size: 4: 48HX48W 6:48WX96H 7: 72HX72W 8:48HX96W 9:96WX96H 12:120WX120H (to be ordered 16: 160WX80H(to be ordered)

Ordering Code

Note: For 48Hx48W panel size, it is 2 alarms without communication only. Please consult with us before order.

Technical Specification

Power Supply	AC/DC 100-240VAC	Power consumption	5W
Accuracy	±0.3%FS3	Sampling cycle	250ms
Ambient Temperature	0~50°C≤85%RH	Response time	≤0.3s
Insulation Impedance	100MΩ	Dielectric strength	1500V AC 1 minute
Power interference	Anti burst of pulses electromagnetism interference, for power supply input connector,≥2KV	Measured&display resolution	RTD0.1°C, TC 1°C, FOR other input, it is selectable
Output specification	Relay capacity 250V AC/3A 24V DC/5A Voltage output:24VDC/30mA. For driving SSR 420mA current ouptu: drive load≤600Ω	Input signal	TC:K, S, R, J, E, T, B, N,JP100,PT100, CU50, CU100 Linear voltage:0-10V, 0-50mV Linear curret:4-20Ma Linear resistance:0-400Ω
