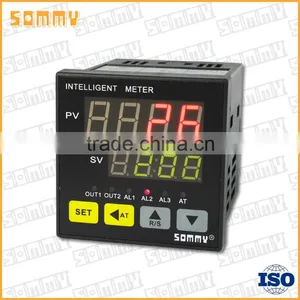

Low Price Digital Temperature Controller With RS485
1. What is the input signal of the Low Price Digital Temperature Controller With RS485 ?
Universal TC and RTD input : ( K , J , E , T , S, PT100, CU100 , CU50 ) , 0-50mV , 0-400Ω .
please note that 0-10V DC , 4-20mA DC input signal can be ordered.
2. What is the output of the digital temperature controller? Advantage of the temperature controller ?
It has relay , ssr , 4-20mA , SCR output . One temperature controller has output , it can save stock and money
for you if you are a distributor or wholesaler.
For example: we have relay +ssr output , relay+4-20mA output , ssr+4-20mA output
3. Does the temperature controller has programable alarm output ?
Yes , it has 2 alarm relay output . You can choose 1 alarm output or 2 alarms output.
4. What is the power supply of the pid controller ?
Our standard temperature controller is 100-240V AC/DC voltage supply , 24V DC is also available.
5. What is your warranty period for the temperature controller ?
We offer 3 years warranty period and lifetime maintainace .
6. What sizes do you have for TF series thermostat controller ?
Panel sizes: 36H*72Wmm , 48H*48Wmm , 48H*96Wmm , 96H*48Wmm,72H*72Wmm, 96H*96Wmm, 80H*160Wmm
7. Do you offer OEM or ODM service ?
Yes , we offer OEM and ODM service based on your requirement.
Features
1. Universal input signal and multi output mode
2. With functions of measurement display, control output, alarm output
3. Optional 4-20mA transmition output , and RS485 communication , Modbus-RTU
4. Diffferent types of PID arithmetic and with auto-tuning function
5. Economical and easy operation

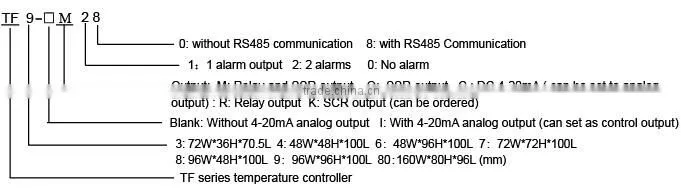

Model Illustrations
Technical Specifications
| Input Signal | K , J , E , T , S, PT100, CU100 , CU50, 0-50mV , 0-400Ω,0-10V , 4-20mA |
| Relay capacity | AC 250V /3A Life of rated load>100,000 times |
| Power supply | AC/DC 100~240V (85-265V) or 24VDC |
| Power consumption | < 6VA |
| Work environment | Temperature:-10~50℃ ,Humidity:<85%RH |
| SSR output | DC 24V pulse voltage,load<30mA |
| Current output | DC 4~20mA load<500Ω |
| Communication port | RS485 port Modbus-RTU procotol |
| Insulation impedance | Input, output, power VS meter cover >20MΩ |
| Total weight | about 500g |

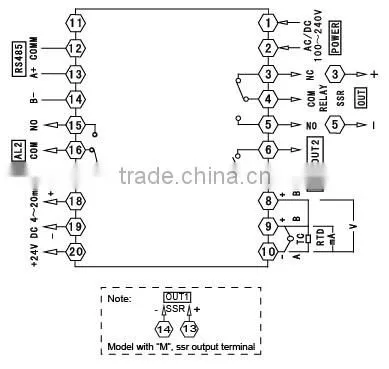

Wire Connection Drawing
