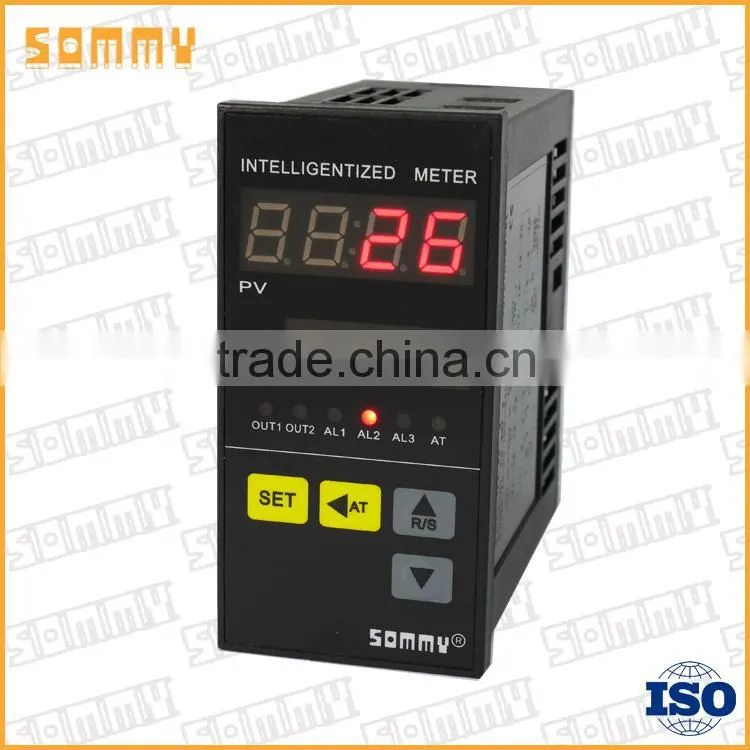

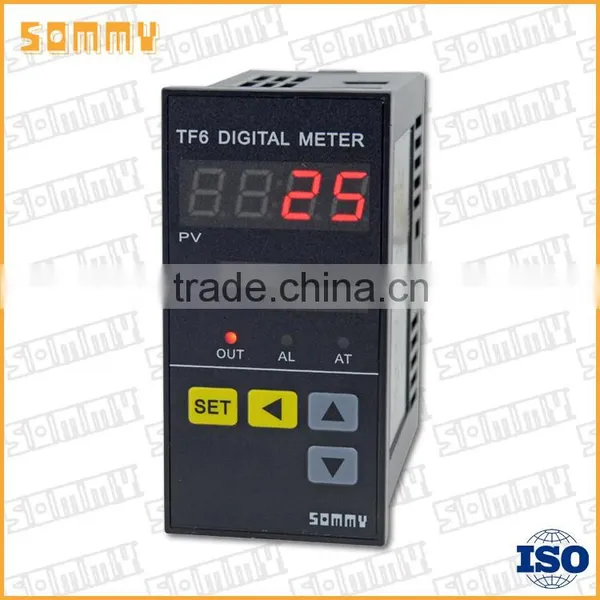

Help CenterTF6 Industrial Digital Temperature Thermometer
Related Products
-
TF7 Series Panel Intelligent PID Temperature ControllerUS$ 10 - 20MOQ: 6 Pieces -
Panel Mounting Intelligent Pid Temperature Controller With RS485 ModbusUS$ 12 - 18MOQ: 2 Pieces
-
Low Price Digital Temperature Controller With RS485US$ 10 - 20MOQ: 2 Pieces
-
TF80 Series Panel Intelligent PID Temperature ControllerUS$ 10 - 20MOQ: 6 Pieces
-
AN708-6 Series Intelligent PID Digital Temperature ControllerUS$ 20 - 35MOQ: 2 Pieces
PID Temperature Controller
TF series intelligent PID temperature controller are widely used in variety of PID or ON/OFF heating industries, such as injection mold machine/packaging machine/food machine/printing machine/glass machine . It displays with 4 digit digital LED. The greatest advantage of TF series is SSR & Relay could be output at the same time which helps customer saving stock. Multifunction of control output is for selection. What's more, it could be used with various of temperature sensor.
Sommy's Digital(PID) temperature controllers, offer quick setup and provide precise temperature management and control for a variety of applications, They will be the definite choice for your successful control in any temperature control applications.
Features
01. Optional input signal types and models
02. With many functions of measured display ,control output, alarm output, analog output, RS485 communication, etc
03. Optional many types of PID arithmetic and with auto-tuning function
04. Using for industrial machinery, machine tools , measuring instruments
05. Economical and easy operation

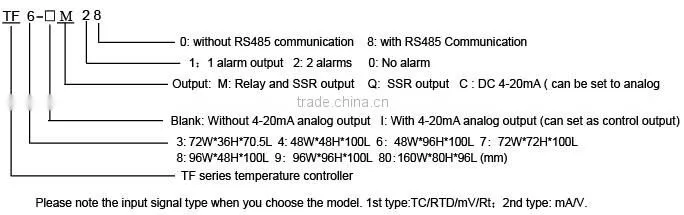

Model Illustration
Electrical Parameters
| Sample rate | 3 times/second |
| Relay capacity | AC 250V/3A Life of rated load > 100000 times |
| Powr supply | AC/DC 100~240V (85~265V) |
| Power consumption | <6VA |
| Environment | Temperature of indoor:-20~55'C no condensation, Humidity <85%RH, atifude <2000m |
| Storage enviroment | -20~60'C, no condensation |
| SSR output | DC 24V pulse level,load<30mA |
| Current output | DC 4~20mA load <500 Ω, temperature drift 250PPM |
| Communication port | RS485 port Modbus-RTU procotol, max input 30 units |
| Insulationo impedance | Input,outupt, power cabinet >20M Ω |
| ESD | IEC/EN6100-4-2 Contact +/- 4KV/Air+/- 8KV perf.Criteria B |
| Pulse traip anti-interference | IEC/EN6100-4-4 +/-2KV perf.Criteria B |
| Lightning surge | IEC/EN6100-4-5 +/-2KV perf.Criteria B |
| Frequency drop | IEC/EN6100-4-29 0%~70% |
| Dielectric strength | Signal input&output & power 1500VAC 1min, below 60V Low voltage circuit between DC500V, 1min |
| Total Weight | About 400g |
| Shell material | The shell and panel frame PC/ABS (Flame Class UL94V-0) |
| Panel material | PET(F150/F200) |
| Power-off data protection | 10 years, times of writing: 100w times |
| Protection level of panel | IP65 (IEC60529) |
| Safety Standard | IEC61010-1 Overvoltage category II |

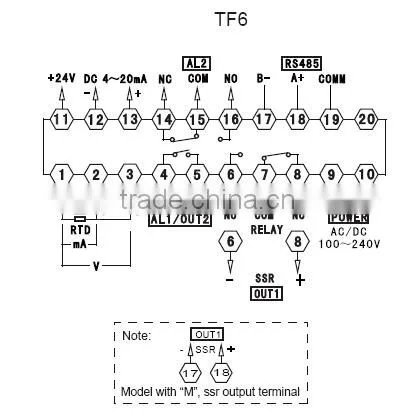

Wire Connection Drawing
1. We offer 3 years warranty period for the products.
2. We offer free pre-sale and after-sale service. Any question, just feel free to call us at any time . Service hotline: 86-760-88722603 or 86-13925367182
3. We offer OEM and ODM service based on your requirement.
4. We offer technical , price , advertisement to support you , if you want to distribute our products in your market.
