TC Industrial digital control thermostat is economic industrial automation control meter. Universal TC , RTD , linear signals input , and relay , ssr , 4-20mA, SCR output .These instruments are widely used in industrial automation system control field.
1. What is the input signal of the TC9 industrial digital control thermostat ?
Universal TC and RTD input signal: K , J , E , T , PT100, CU100 , CU50 , 0-50mV , 0-400 Ω
Linear signal input: DC 0-10V , 4-20mA
2. What is the output signal of the industrial digital control thermostat ?
The thermostat has relay , ssr , 4-20mA output , and 0-10VDC , SCR output can be ordered.
It can combine two output together in one product . If you are distributor , it can save stock for you.
3. Does the digital control thermostat has programable alarm output ?
Yes , you can choose 1 alarm or 2 larms .
4. What is the power supply of the thermostat ?
Our standard temperature controller is 100-240V AC/DC voltage supply , 24V DC is also available.
5. What is your warranty period for the industrial control thermostat ?
We offer 3 years warranty period and lifetime maintainace .
6. Do you offer OEM or ODM service ?
Yes , we offer OEM and ODM service based on your requirement.
Technical Specification
| Input signal | K , J, E , T , PT100 , CU50 , CU100, 0-10V , 4-20mA, 0-50mV , 0-400Ω |
| Accuracy | 0.5%F.S |
| Resolution | 1℃ |
| Temperature drift | ≤ 0.02FS/℃ |
| Output | Relay output: capacity 3A/250VAC |
|
SSR Output: 24V pulse voltage ,loading 30mA 4-20mA output: load ≤500Ω | |
| Alarm output | Relay output capacity 1A/250VAC |
| Working voltage | 100-240V AC/DC or 24V DC |
| Working ambient | -10~55℃ 45~80%RH |

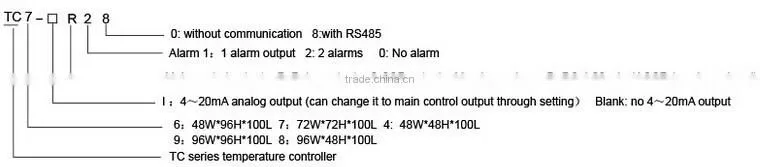

Model Illustration

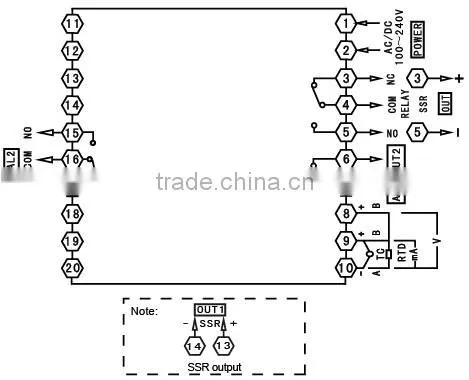

Wire Connections
