Temperature Controller Price
Product Features
1. With display , control and alarm function.
2. Temperature control accuracy : 0.5%F.S
3. With both Relay and SSR output , optional 4-20mA , 0-10V DC output
4. Input signal : universal TC /RTD signal input
5. Control mode: PID heating , PID cooling , PID heating and cooling , ON-OFF control
Technical Specification
| Sample rate | 3 times/second |
| Relay capacity | AC 250V/3A Life of rated load > 100000 times |
| Powr supply | AC/DC 100~240V (85~265V) |
| Power consumption | <6VA |
| Environment | Temperature of indoor:-20~55'C no condensation, Humidity <85%RH, atifude <2000m |
| Storage enviroment | -20~60'C, no condensation |
| SSR output | DC 24V pulse level,load<30mA |
| Current output | DC 4~20mA load <500 Ω, temperature drift 250PPM |
| Communication port | RS485 port Modbus-RTU procotol, max input 30 units |
| Insulationo impedance | Input,outupt, power cabinet >20M Ω |
| ESD | IEC/EN6100-4-2 Contact +/- 4KV/Air+/- 8KV perf.Criteria B |
| Pulse traip anti-interference | IEC/EN6100-4-4 +/-2KV perf.Criteria B |
| Lightning surge | IEC/EN6100-4-5 +/-2KV perf.Criteria B |
| Frequency drop | IEC/EN6100-4-29 0%~70% |
| Dielectric strength | Signal input&output & power 1500VAC 1min, below 60V Low voltage circuit between DC500V, 1min |
| Total Weight | About 400g |
| Shell material | The shell and panel frame PC/ABS (Flame Class UL94V-0) |
| Panel material | PET(F150/F200) |
| Power-off data protection | 10 years, times of writing: 100w times |
| Protection level of panel | IP65 (IEC60529) |
| Safety Standard | IEC61010-1 Overvoltage category II |

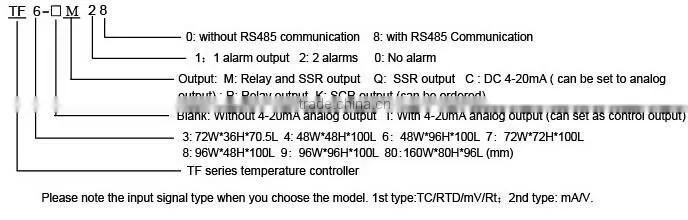

Model Illustration
Wire Connection
1. We offer 3 years warrany period for our products.
2. We offer free pre-sales and after-sales service , please call to our technical support line :400-8866-986 or 86-760-88722603 if have any quesiton.
3. We offer OEM and ODM service for you , also offer design and reasearch new product for you .
4. We offer price , promotion and technical support , if you want to be our distributor in your country or region .
