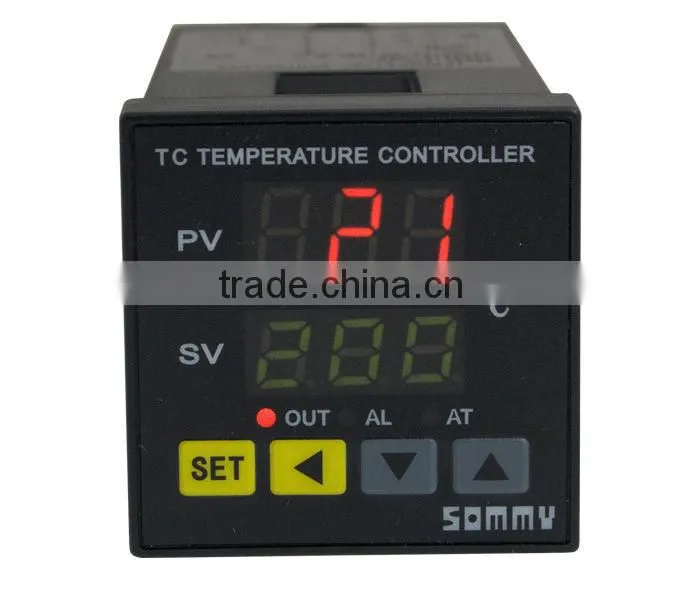

TC Series Heating &cooling Programmable Digital Temperature ControllerUS$ 8.3 - 20MOQ: 2 Pieces
-

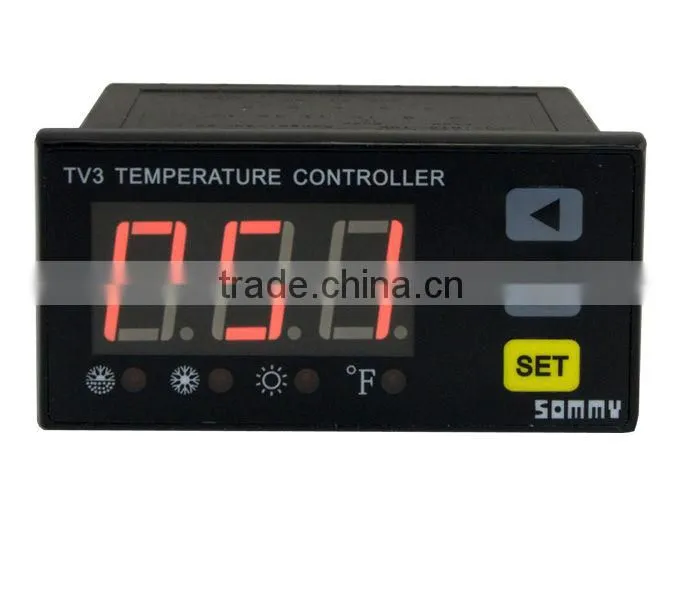

TV3 Series Digital Refrigerator PID Temperature ControllerUS$ 11.7 - 16MOQ: 1 Piece
-
Low Pirce Industrial Digital ThermostatUS$ 9 - 14MOQ: 2 Pieces
-
TC8 Series Wholesale PID Heating&Cooling Temperature ControllerUS$ 9 - 15MOQ: 5 Pieces
AN808 Series Advanced Universal PID Programmable Temperature Controller & adjustor Features:
* 240X160 dot matrix display
* Two freedom degree PID arithmetic
* RS485 Communication function, Modbus Protocol
* Modularization output design, easy to change,Multi alarm output
* With program segment control function
* Multiple input
Model |
Alarm |
Control Output |
Communication |
Input |
AN808P-♦-Q2 |
2 alarm 1 cooling control |
SSR |
NO |
K, J, E, T, R, S, B, N, CU50, CU100, PT100,0-10V, 4-20mA, 0-50mV, 0-400Ω |
AN808P-♦-R2 |
Relay |
|||
AN808P-♦-C2 |
4-20mA Current |
|||
AN808P-♦-Q28 |
2 alarm 1 cooling control |
SSR |
Yes |
|
AN808P-♦-R28 |
Relay |
|||
AN808P-♦-C28 |
4-20mA Current |
Technical parameter
Power supply |
AC/DC:100~240V 50/60HZ |
Power consumption |
5W |
Accuracy |
±0.3%FS |
Sampling cycle |
250ms |
Environment |
0~50°C≤85%RH |
Response time |
≤0.3s |
Insulation impedance |
100m Ω |
Dielectric strength |
1500V AC 1 minute |
Power interference |
Anti-bust of pulses electromagnetism interference, for poer supply input connector,≥2KV |
Measured & display resolution |
RTD 0.1°C, TC 1°C, for other input, it is selectrable |
Output specification |
Relay capacity 250V AC /3A, 24VDC/30mA(For driing SSR) 4-20mA current output: drive load≤600Ω |
Input signal |
TC:K, J, E, T, R, S, B, N RTD: Cu50, Cu100, PT100,JPT100 Linear voltage:0-10V, 0~50mV Linear current: 4-20mA, Linear resistance: 0-400Ω |
