Single Phase Smart Din Rail Digital Electricity Meter With RS485 and Tranmition Output
US$ 23 - 33
/ Piece
2 Pieces(Min. Order)
- Zhongshan /Guangzhou /Shenzhen/Hongkong/Ningbo/Shanghai/Qingdao
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Hong Kong, China | Brand Name | SOMMY | |
| Model Number | KE2L-HZ-4MA20/RS4 | Display Type | Digital Only | |
| Phase | Single Phase | Measuring Energy Range | 0-9999 | |
| Accuracy Class | 0.5% | Output Voltage | AC150~250V | |
| Operating Temperature | -20~55℃ | Dimensions | 24W*70.5L*100Hmm |
Product Description
Product Description
Feature:
1.Measure and transmit single phase voltage/current/power factor/active power/reactive power/apparent power/Kwh etc.
2. Input range:5-450V AC, 0.015-5A, current larger than 5A, please input with CT
3. With RS485 communication port and 4-20mA transmition output
4. Optional 2 alarms relay output
5. Small size , saving installation place and easy to mount
Technical Specification
| Power supply | 24V DC, 100-240V AC/DC | Maximum rated voltage | 450V |
| Voltage overload | continuous:1.2 times,instaneous:2 times/10s | Voltage consumption | <1VA |
| Accuracy | +-0.5% F.S | Voltage imdepance | >300kΩ |
| Current consumption | <0.4VA | Maximum rated current | 5A |
| Current imdepance | <20mΩ | Transmition output | 4-20mA programable transmition output |
| Currenr overload | Continuous:1.2 times,instaneous:10 times/10s | ||
| Measure/transmition parameters | single phase voltage , current , power factor ,active power, reactive power , apparent power, Kwh | ||

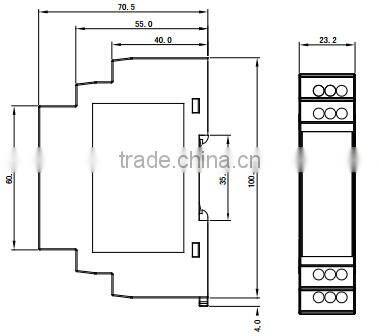

Dimensions (mm)

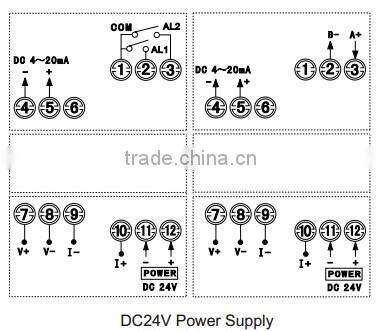

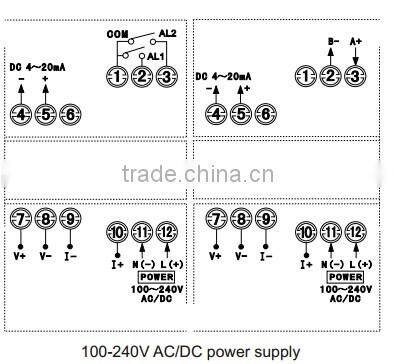

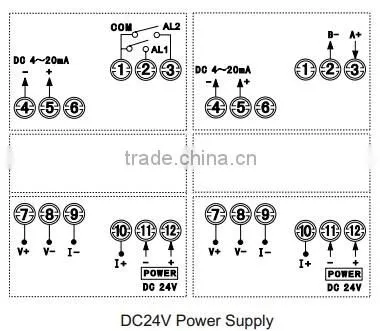

Wire Connection
