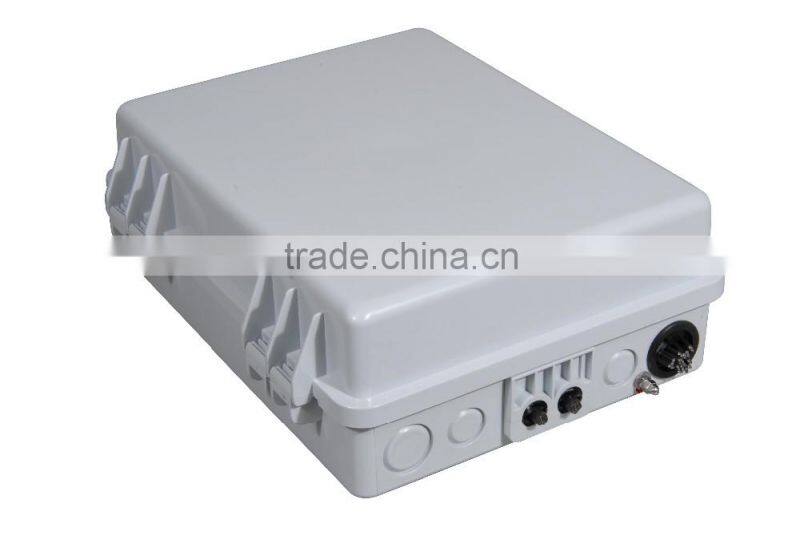

FTTH 24 Cores IP55 Indoor or Outdoor Wall Mounted Fiber Box
Negotiable
/ Piece
200 Pieces(Min. Order)
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
New Product 2016 Optical Distribution Point ODP Pedestal
-
HOT SALL Fiber Distribution Box Protection Box Ptotection Cover HOT SALL
-
1*8 Drawer PLC Wall or Pole Mounting IP65 Supporting Uncut Fiber Box
-
FTTH 16 Cores IP65 2pc1*8 Drawer PLC or 1pc 1*16 Drawer Wall Mounting Fiber Box
-
IP65 Fiber Box Supporting Uncut 8 Coresbox Can be Installed 1/8 Insertion Box Outdoor Fiber Optic Distribution Box
-
FIber Optical Terminal Box Splitter Box Wall Mounted Box 4pc 1*8 Drawer Plc or 2pc 1*16 Drawer PLC
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | GFS-24B-1 |
Product Description
Product Description
1、Description：
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
2、 Features：
1.Total enclosed structure.
2.Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP55。
3.Clamping for feeder cable and drop cable, fiber splitting, splicing, fixation, storage, distribution...etc all in one.
4. Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.
6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
3、Specification：
1、Environmental requirement
Working temperature：-40℃～+60℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2、Main technical datasheet
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
3、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2 MΩ/500V（DC）；
IR≥2 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover
；U≥3000V

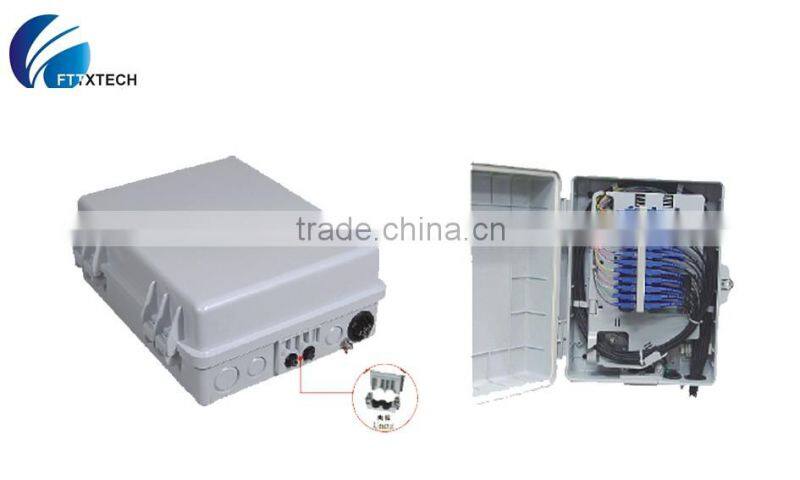

Detailed Images
Packing & Delivery
10PCS/ CARTON
G.W.:15.7kg
N.W.:12.8kg
Meas:550*335*670MM
Delivery will be in 20days as usual
