Home > Products > 10. Accessories parts > FTTH 16 Cores IP65 2pc1*8 Drawer PLC or 1pc 1*16 Drawer Wall Mounting Fiber Box
FTTH 16 Cores IP65 2pc1*8 Drawer PLC or 1pc 1*16 Drawer Wall Mounting Fiber Box
Negotiable
1 (Min. Order)
- Ningbo/Shanghai
- T/T Money Gram Credit Card
You May Like
-
IP65 Fiber Box Supporting Uncut 8 Coresbox Can be Installed 1/8 Insertion Box Outdoor Fiber Optic Distribution Box
-
FIber Optical Terminal Box Splitter Box Wall Mounted Box 4pc 1*8 Drawer Plc or 2pc 1*16 Drawer PLC
-
FTTH SC 24 Cores IP65 Wall or Pole Fiber Optical Equipment
-
FTTH 24 Cores IP55 Wall or Pole Mounted Fiber Box
-
FTTH SC16 CORES PRE-CONNECTION SUPPORTING Uncut With Branch Holes Wall or Pole Mounted IP66 Fiber Box
-
FTTH 16 Cores IP66 Fiber Optical Terminal Box
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |

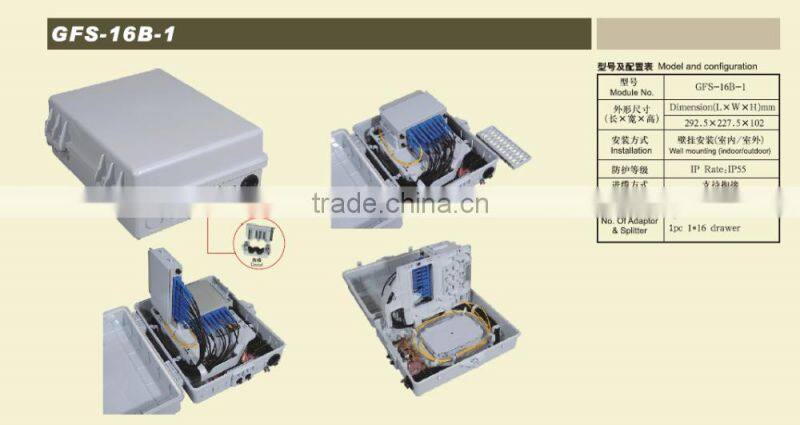

| Model Number | GFS-16B-1 |
Product Description
Product Description
1、Description：
The equipment is widely used as a termination point for the feeder cable to connect with drop cable in FTTH network, telecommunication network, CATV network, data network and local area network etc..
2、Features：
1、 Total enclosed structure.
2、 Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP55。
3、 The two-layer structure design, optical splitter is in the upper and fiber splicing is in the lower.
4、 The optical module uses drawer modular design, be in strong interchangeability and versatility.
5、 Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6、 Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
3、Specification：
1、Environmental requirement
Working temperature：-40℃～+60℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2、Main technical datasheet
Quantity of cable entry: 1X2 (Both can go inside up and down)
Quantity of drop cable entry: 1X2 (Both can go inside up and down)
Door opening angle: 180 °
Adapter can choose SC FC LC
3、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2 MΩ/500V（DC）；IR≥2 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V

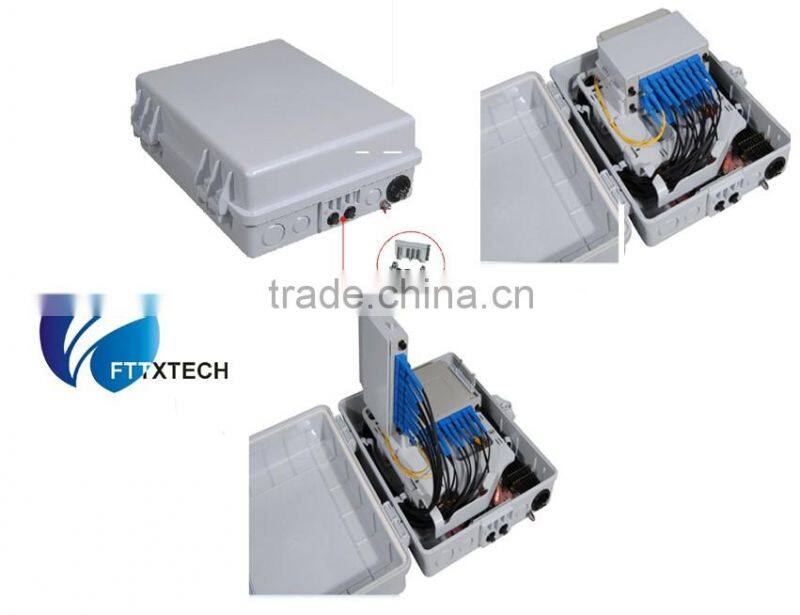

Detailed Images
Packing & Delivery
10PCS/CARTON
G.W.:15.3KG
N.W.:12.4KG
Meas:550*335*670MM
In 15-20days for delivery as usual
Contact Us
- Cixi Feitian Electronic Factory
- Contact nameKelly Tong Chat Now
- Phone86-0574-63592872
- AddressNo. 88, Weisi Road, West Industrial Development Area, Xinpu Town
