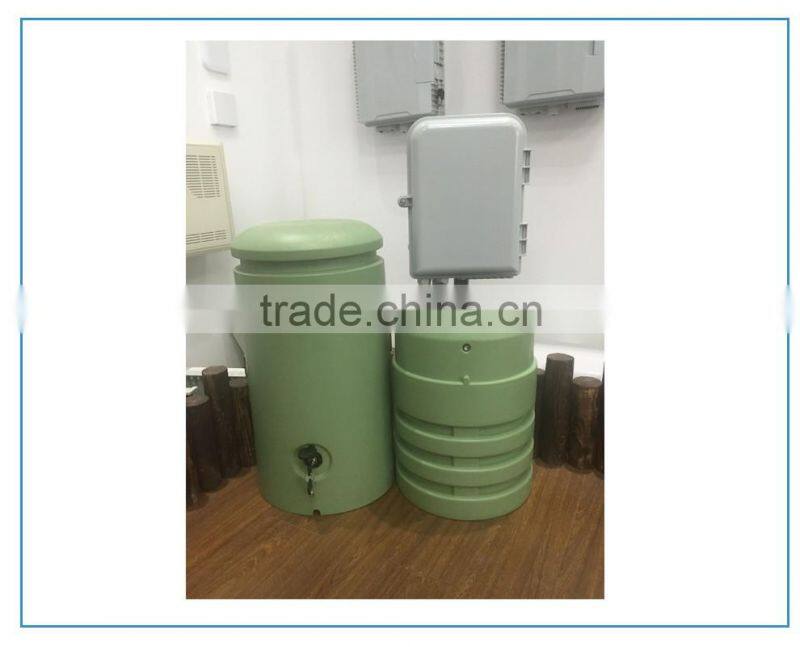

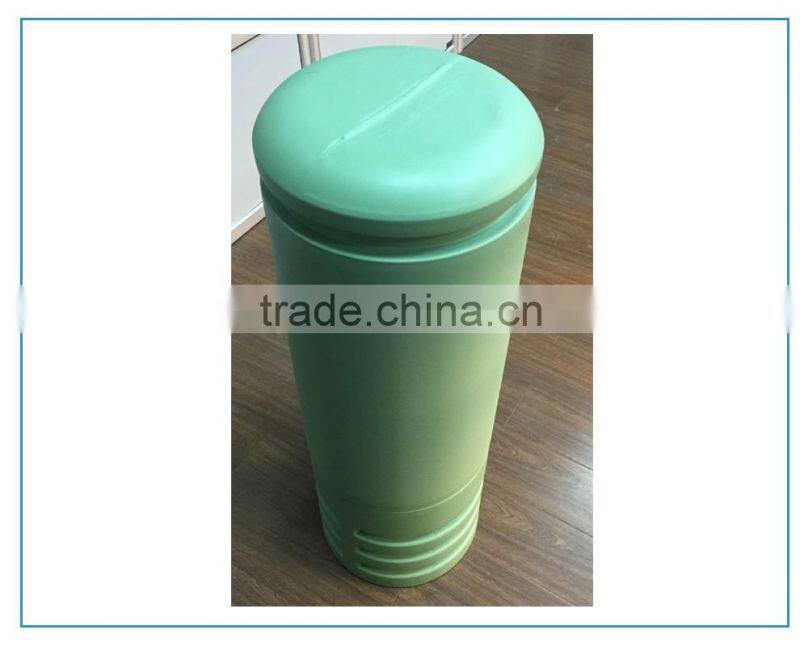

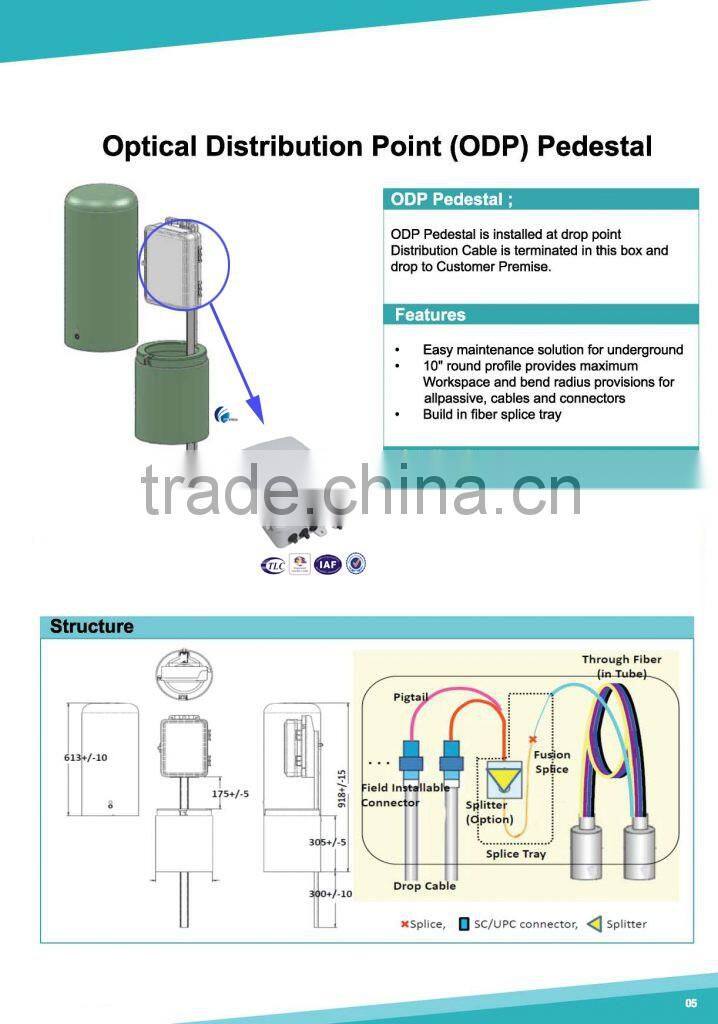

New Product 2016 Optical Distribution Point ODP Pedestal

Features:

l Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive.

l made of material with good capability of outdoor environment resistance and high durability

l Having reliable cable fixing and grounding facilities.

l Using self-adhesive isolative tape and glue belt to seal.

l To use rotating method to connect fiber organizer cassette result in easy installation.

l Mechanical design suitable for installing, fiber splicing storage and cable connection

l Compact and tight.

Main Technical Parameters

l Applicable environment temperatures: -10°C~+70°C

l Air pressure: 70~106Kpa

l Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m

l Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 30N.m (±90°)

l Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours

l Insulation resistance≥2×10⁴MΩ,resistance to 1.5KV/min without break down

l Life expectancy: 30 years

      Cixi Feitian Technology Factorywas established in 1993. It is a high-tech enterprise which professionally specialize in R&D manufacture and sales for fttx integrated solutions, Ftth optical cords,Odf optical cord brackets , MDF main cable brackets and equipments etc. With international advanced 6S management, Feitian Technology sincerely provide the best performance and high quality communication products for equipment manufacuers and operaters both at home and abroad.
