Home > Products > 2. Optical distribution box > FTTH 12 CORES PRE-CONNECTION IP66 Indoor or Outdoor Wall or Pole Mounted Fiber Optical Terminal Box

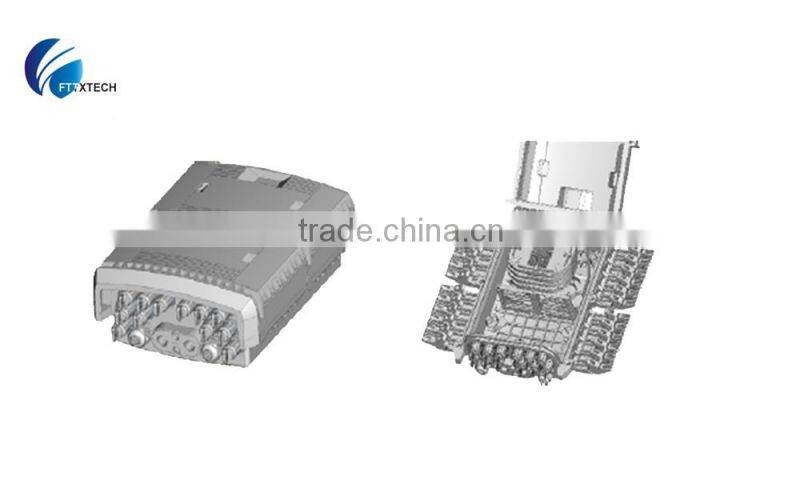

FTTH 12 CORES PRE-CONNECTION IP66 Indoor or Outdoor Wall or Pole Mounted Fiber Optical Terminal Box
Negotiable
/ Piece
200 Pieces(Min. Order)
- NINGBO/SHANGHAI
- T/T Money Gram Credit Card
You May Like
-
FTTH 8 Cores Fiber Distribution Box With Pre-connection and Branch Holes Supporting Uncut Fiber Termination Box
-
FTTH 8 CORES Indoor or Outdoor FIber Optic Box
-
FTTH SC 12 CORES DUPLEX LC12 CORES PLC1*8 Wall or Pole Mounted Supporting Uncut IP 65 FIBER BOX
-
24pc SC Adapter or 24pc Double LC and 1pc 1X16 Blockless PLC or 2pc 1X8 Blockless PLC Wall or Pole Mounted IP65 Fiber Box
-
For Cable IP68 SC 24 CORES PLC1/8*3 Supporting Uncut Fiber Box
-
FTTH SC 12 CORES DUPLEX LC12 CORES PLC1*8 Wall or Pole Mounting IP65 Supporting Uncut With Branch Holes Fiber Box
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | GFS-12F |
Product Description
Product Description
1、Description：
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
2、 Features：
1.Total enclosed structure.
2.Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65。
3.Clamping for feeder cable and drop cable, fiber splitting, splicing, fixation, storage, distribution...etc all in one.
4. There is turned fiber storage wheel located on the base, it can keep dia. 3.00 drop cable in 30M.
5. Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
6. Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.
7. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
3、Specification：
1、Environmental requirement
Working temperature：-40℃～+60℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2、Main technical datasheet
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
3、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2 MΩ/500V（DC）；
IR≥2 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover
；U≥3000V
Detailed Images
Packing & Delivery
Our usual Packing
In 15-20 days for delivery as usual
Contact Us
- Cixi Feitian Electronic Factory
- Contact nameKelly Tong Chat Now
- Phone86-0574-63592872
- AddressNo. 88, Weisi Road, West Industrial Development Area, Xinpu Town
