FTTH 16 Cores 2pc1*8 Drawer PLC or 1pc 1*16 Drawer IP55 Fiber Optical Terminal Box

1,Description:

The equipment is widely used as a termination point for the feeder cable to connect with drop cable in FTTH network, telecommunication network, CATV network, data network and local area network etc..

2,Features:

1,Total enclosed structure, be in nice shape.

2,Material is PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP55.

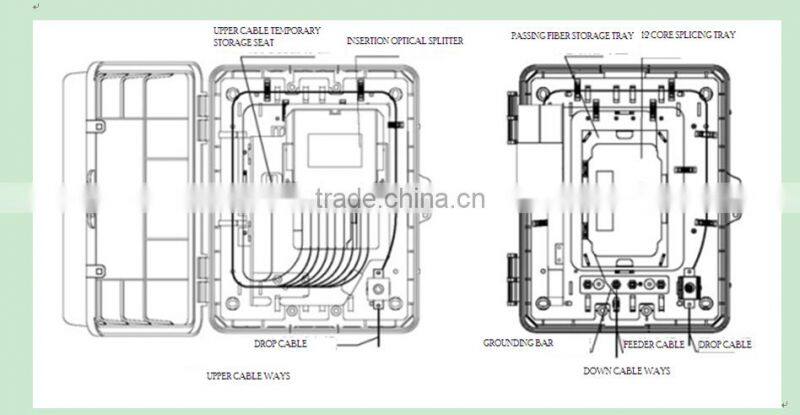

3,The two-layer structure design, optical splitter is in the upper and fiber splicing is in the lower.

4,The optical module uses drawer modular design, be in strong interchangeability and versatility.

5,Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

6,Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

3,Specification:

1,Environmental requirement

Working temperature:-40℃~+60℃

Relative humidity:≤85%(+30℃)

 Atmospheric pressure:70KPa~106Kpa

2,Main technical datasheet

Quantity of cable entry: 1X2 (Both can go inside up and down)

Quantity of drop cable entry: 1X2 (Both can go inside up and down)

Door opening angle: 180 °

Adapter can choose SC FC LC

3,Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2000MΩ/500V(DC);IR≥20000MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V

4,Configuration table

5. Installation:

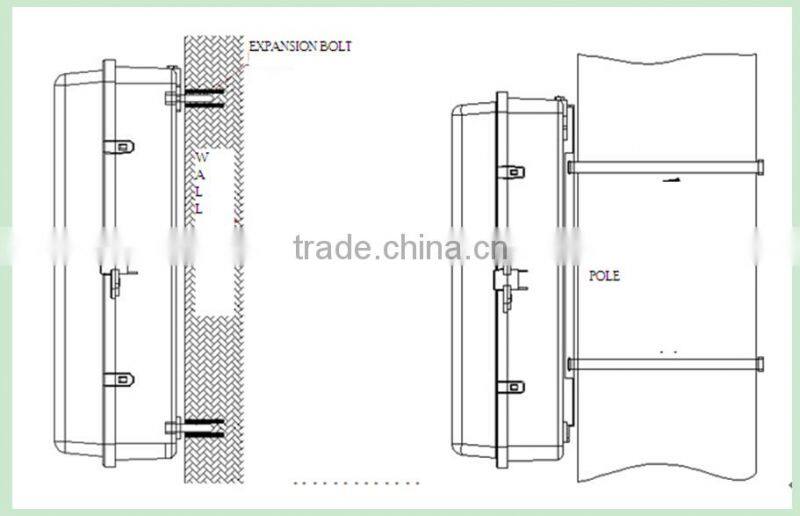

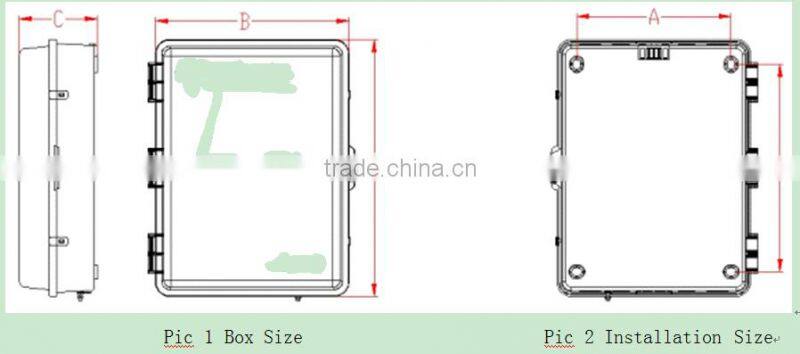

1.Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

2.Pole-mounted installation

 Fix 1 set of the easy pole ring to the telecom pole.
