FTTH SC 12 CORES DUPLEX LC12 CORES PLC1*8 Wall or Pole Mounting IP65 Supporting Uncut With Branch Holes Fiber Box

FOB Price

Negotiable / Piece

200 Pieces(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	OEM
Model Number	GFS-12E-3

Product Description

1、Description：

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2、Features：

1、 Total enclosed structure.

2、 Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65。

3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4、 Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

6、 Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

3、Specification：

1、Environmental requirement

Working temperature：-40℃～+85℃

Relative humidity：≤85%（+30℃）

Atmospheric pressure：70KPa～106Kpa

2、Main technical datasheet

Insertion loss：≤0.2dB

UPC return loss：≥50dB

APC return loss：≥60dB

Life of insertion and extraction：＞1000 times

3、Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2 MΩ/500V（DC）；

IR≥2 MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V

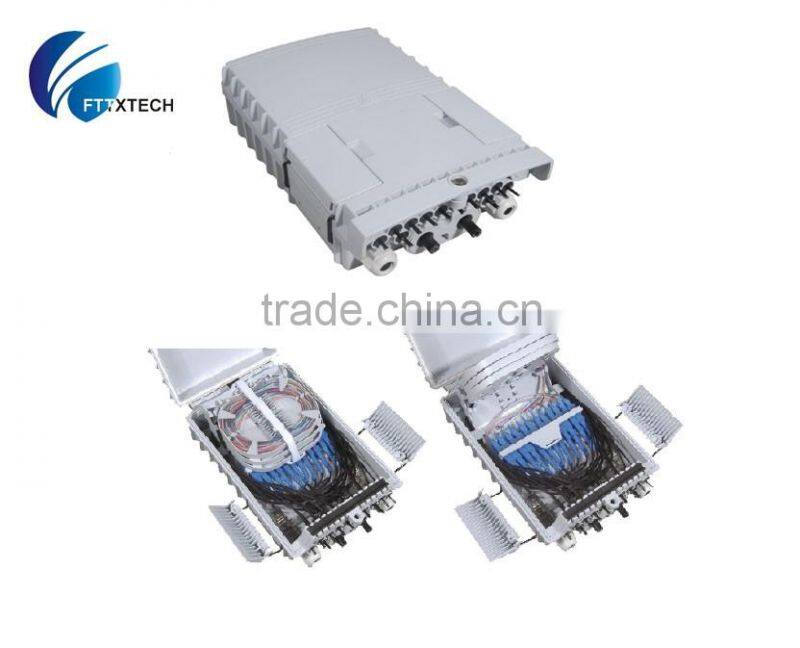

Detailed Images

Packing & Delivery

10 PCS / CARTON

G.W:12.70KG

N.W.:10.7KG

MEAS:410*320*570MM

In 15-20days for delivery as usual
