interlocking soil and paving brick making masonry machine

Specifications

1.Manufacturer
2.Factory(in Shanghai China)
3.masonry machine
4.road brick machinery

 interlocking soil and paving brick making masonry machine

Main Technical Specifications of QT 4-15 Block Making Machine
Production per Mould:	4pcs/mould (Standard Block: 400x200x200mm)
	26pcs/mould (Solid Block: 240x115x53mm)
	14pcs/mould (Porous: 240x115x90mm)
	16pcs/mould (Holland Brick: 200x100x60-80mm)
Cycle Time:	15-17 seconds
Production per Shift             (8 Working Hours):	Hollow Block (400x200x200mm):     6752-7680pcs
	Solid Block (240x115x53mm):        43888-49920pcs
	Porous (240x115x90mm):           23632-26880pcs
	Holland Brick (200x100x60-80mm):   20864-23040pcs
Max. Vibrating Frequency:	3000-4500rolls/minute
Vibrating Force:	80-100 KN
Motors Power:	35KW
Machine Dimensions:	4950X3500X2580mm (excluding electrical control box)
Pallet Size:	850X540X17mm
Gross Weight:	about 5.5T
Raw Materials:	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products:	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:	widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.





 Main Features of Block Making Machine

1) Uses Japan Mitsubishi PLC control system and Delta Touch Screen. A. Visualization screen with easy operation; B. Is able to set up, update and amend the production perimeters, to maximize the production output; C. Dynamic display of the system’s status, automatic trouble shooting and warning notice; D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;

2)Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated highpressure and soft oil pipes, with easy installation;

3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;

4) Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;

5) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;

6)Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.

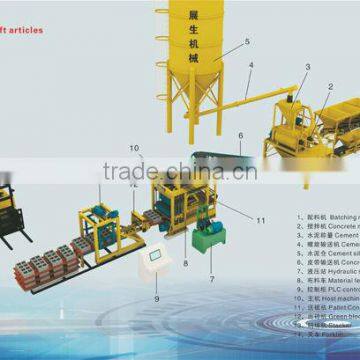

                                               Block Making Machine Process





                The Service about Block Making Machine

Sale-in Service

1. Supervise the construction of foundation which includes electricity, water and other related amenities; 2. Our engineer will help to train the managers and technicians. Course including: factory management, equipment maintenance, quality control, stocking, marketing etc; 3. On-Site Service Engineers for machines installation On-Site training service for production personnel. After-sales Service

After-sales Service

1. Set up individual client's archives with all their needs and detailed to be attended; 2. 24 hours technical advices; 3. Frequent and scheduled engineers visiting; 4. Prompt spare parts support from our major cities distribution network.

Extended Service

1. Free Control System Upgrade. 2. Constant equipment and moulds improvement. 3. Newsletter:onalert to the latest industry trends and application. 4. Always advise new technology and craftsmanship application.





Professional term introduce:







1.Table vibration:



Block Machine Energy from the vibration table through the pallet to the mixture, make the mixture density.







2.Pressure vibrating:



Pressure head of mould down to the top surface of concrete, at the same time vibration start. The Block Machine work with pressure and vibrating.







3.Feed vibrating:



The Block Machine operates with small vibrating when the material feeding car at the top of the mould frame, let the concrete easy to fall down to the mould frame.







4.Green block:



Block just forming by the Block Machine, without curing.







5.Demoulding:



Separate the finished block produced by Block Machine from the mould.







Five advantages of Automatic Block Machine:



Our Block Machine, with harmonic cooperation between electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products.







1. The Block Machine use Japan Mitsubishi PLC control system and Delta Touch



A. Screen, use Schneider and Omron relays and contactors:



Mitsubishi PLC, with great adaptability, guarantees the stability and reliability of the Block Machine;



B. Deltan touch screen, with easy operation;



C. High-quality electrical components from Schneider and Omron;







2. The Block Machine use Frequency Conversional Control Technology, which controls the Block Machine:



A. Frequency Conversion Control: Our Block Machine guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;



B. Frequency controlled vibration: controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;



C. Our Block Machine Power saving: 30%;







3. The Block Machine use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure



A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;



B. Guarantee production stability;







4. The Block Machine 360° Multi-Shaft Rotating and Compulsory Feeding:



A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed;



B. This uniform feeding is applicable for different kinds of raw materials and moulds;







5. The Block Machine use heat treatment on moulds and main parts of the Block Machine:



A. Heavy duty machine structure and wear resistant moulds;



B. The hardness reaches up to HRC 52;



C. Greatly improves the using lifetime of the Block Machine by 50%.









                                                                 Block Making Machine





              Block Making Machine Production Line



                  Actual Block Making Machine Line







                                       Workshop





                                    Our Block Making Machine Customers





The Production and raw materials of Block Making Machine













   Dear customer, if you are interested in our Block Making Machines, please kindly tell me the size of the block/brick/pavers you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
