hollow block machineQT9-15
- 100 Set / Sets per Month
- shanghai
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete | Processing: | Brick Production Line |
Method: | Hydraulic Pressure | Automatic: | Yes | Capacity: | 85sey/year |
Place of Origin: | Shanghai, China | Brand Name: | ZHANSHENG | Model Number: | ZS-QT9-15 |
Power: | 54kw |
Product Description

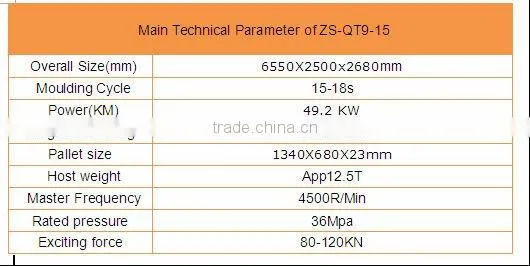

Specifications
hollow block machine1.Mitsubishi PLC
2.ISO9001/TS16949Certificate
3.Multifunction, power saving

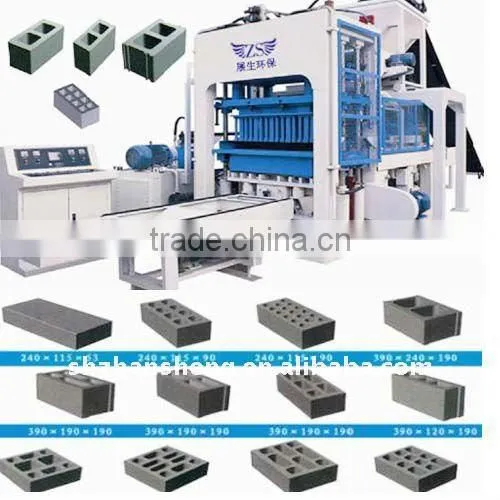

Brick making machine QT9-15
Product Description
1) Uses Mitsubishi PLC control system and Touch Screen.
A. Visualization screen with easy operation;
B. Is able to set up, update and amend the production perimeters, to maximize the production output;
C. Dynamic display of the system’s status, automatic trouble shooting and warning notice;
D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;
E. Is able to troubleshoot the machinery via teleservice.
2) Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated high-pressure and soft oil pipes, with easy installation;
3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;
4) Integrated structure of vibrating and molding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;
5) Uses one single motor to drive the vibrator via transmission shaft, avoiding the inconsistency of double motors, so as to save the power;
6) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;
7) Maintenance-free hinge bearings on the hydraulic cylinders and driving rods, screw able straps on lever arms for easy exchange of blots, extension of guide bearings for absolutely parallel and tilt lift movement of mould and tamper head;
8) Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.
Update Date:2011-11-14 19:47:53
