Help CenterBlock Making Machine (QT8-15)
Related Products
-
QT8-15 Interlock Block Paving MachineUS$ 12,000 - 55,000MOQ: 1 Set -
Automatic Cement Concrete Brick Making MachineUS$ 18,000 - 55,000MOQ: 1 Set
-
Cement Block Machine QT8-15! PLC Control System!US$ 12,000 - 55,000MOQ: 1 Set
-
Hydraform Brick Making MachineUS$ 15,000 - 55,000MOQ: 1 Set
-
China Brick Making Machine Produce Different Types of Bricks ZS-QT10-15US$ 12,000 - 55,000MOQ: 1 Set
Specifications
1 PLC control system2high-dynamic proportional valves
3Integrated structure of vibrating and molding platforms
4less invest
Main Technical Parameter |
||||||
Overall Size (mm) |
3250x2690x2720mm |
|||||
Molding Cycle |
15-18s |
|||||
Power(KM) |
46KW |
|||||
Pallet size |
1100x680x25mm |
|||||
Host weight |
App.10T |
|||||
Master Frequency |
3000-4500 R/Min |
|||||
Rated pressure |
32Mpa |
|||||
Exciting force |
70-80KN |
|||||
|
List of Theoretical Production Capacity |
||||||
Products |
Specifications |
Pc/Mould |
Pc/Day |
Pc/Year |
||
Standard Brick |
240x115x53mm |
40 |
76,800 |
23,040,000 |
||

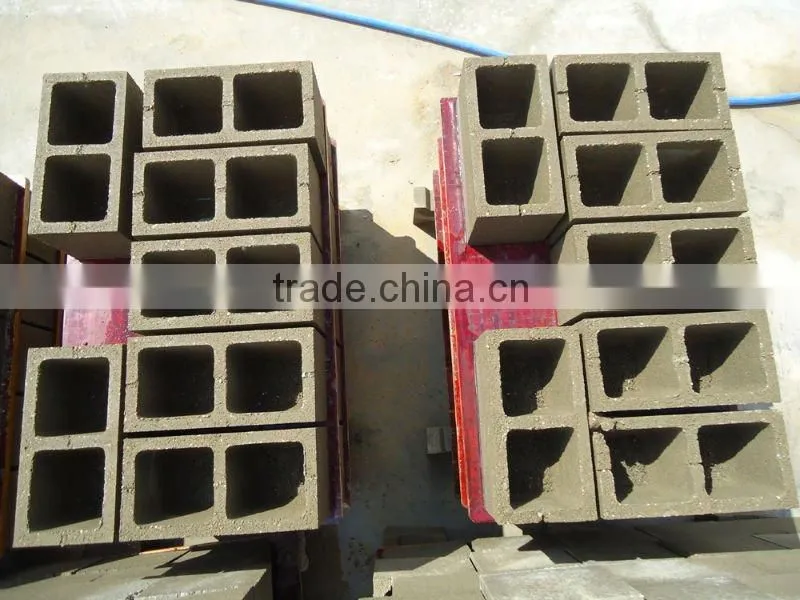

Hollow Block |
390x190x190mm |
8 |
15,360 |
4,608,000 |
||
Multi-hole Brick |
240x115x90mm |
20 |
38,400 |
11,520,000 |
||
Pathway Brick |
200x100x60mm |
26 |
34,112 |
10,233,600 |
||
Product Description
1) Uses SCHNEDER PLC control system and Touch Screen.
A. Visualization screen with easy operation;
B. Is able to set up, update and amend the production perimeters, to maximize the production output;
C. Dynamic display of the system’s status, automatic trouble shooting and warning notice;
D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;
E. Is able to troubleshoot the machinery via teleservice.
2) Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated high-pressure and soft oil pipes, with easy installation;
3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;
4) Integrated structure of vibrating and molding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;
5) Uses one single motor to drive the vibrator via transmission shaft, avoiding the inconsistency of double motors, so as to save the power;
6) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;
7) Maintenance-free hinge bearings on the hydraulic cylinders and driving rods, screw able straps on lever arms for easy exchange of blots, extension of guide bearings for absolutely parallel and tilt lift movement of mould and tamper head;
8) Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.
Dear customer, if you are interested in our block making machines, please kindly tell me the size of the block/brick/pavers you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
Update Date:2011-11-14 20:30:33
