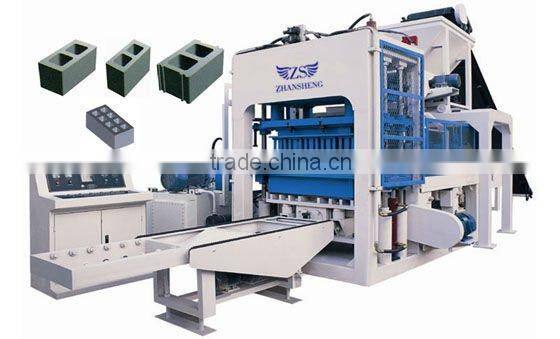

hydraform brick making machine
- 100 Set / Sets per Month
- shanghai port
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Type: | Hollow Block Making Machine | Brick Raw Material: | Cement | Processing: | Brick Production Line |
Method: | Hydraulic Pressure | Automatic: | Yes | Capacity: | 120SET/YEAR |
Place of Origin: | Shanghai, China | Brand Name: | ZHANSHENG | Model Number: | ZS-QT6-15 |
Power: | 4309KW |
Product Description
Specifications
Concrete block machine1, Multifunction, power saving
2, Huge output, small invest
3, Long operating life, no pollutio
Main Technical Parameter of ZS-QT6-15 Concrete Hollow Block Machine | |||||
Overall Size(mm) | 3100*2100*2700mm | ||||
Moulding Cycle | 15-18s | ||||
Power(KM) | 40.5KW | ||||
Area of molding | 900*800mm | ||||
Height of molding | 40-230mm | ||||
Pallet size | 850*680*25mm | ||||
Host weight | 8.5T | ||||
Master Frequency | 4500R/Min | ||||
Rated pressure | 32Mpa | ||||
Exciting force | 70-80KN | ||||
List of Theoretical Production Capacity | |||||
Proudcts | Specifications | Pc/Mould | Pc/Day | Pc/Year | |
Standard Brik | 240*115*53mm | 30 | 57,600 | 17,280,000 | |
Hollow Block | 390*190*190mm | 6 | 11,520 | 3,456,000 | |
Multi-hole Brick | 240*115*90mm | 15 | 28,800 | 8,640,000 | |
Pathway Brick | 200*100*60mm | 21 | 27,552 | 8,265,600 |
Multi-usage. Can produce concrete masonry blocks, bricks, pavers, slabs stones, curbstones, retaining walls, plant able blocks, interlocking types etc. By just changing the various designs of moulds.
Adopt international standard mode, long life, excellent weather endurance, low wastage. Import a great deal of apparatus is another guarantee for our quality.
Molding cycle is 10-15 seconds. The average output of one hour is about 74m
Divide the excess oil of pressure into vibration force, reduce energy wastage. The oscillating is drove by hydraulic pressure, controlled by computer, which bring resonance and finally gain the aim of adding material with low frequency and molding with high frequency, causes the concretes full liquefaction, exhaust, achieves the high density and the high strength of the blocks. More safety and long life than vibration by electric motor.
Imported PLC control system and hydraulic components make that the control and hydraulic systems achieve the trouble-free operation basically. Actualize the man-machine dialog, easy to use, safe and reliable.
The whole machine adopts durable design, applies special jointing to make it become more strong and durable.
Storing and dividing material device is computerized material supplying, avoided outside effects to material, ensured material supply with well-proportioned, to cut down the finished products tolerance.
Combination type system of second fabric is combined in accordance with production needs.
Transmission system is adopted computer control and frequency conversion technology, which is stable, exact, efficient and reliable.

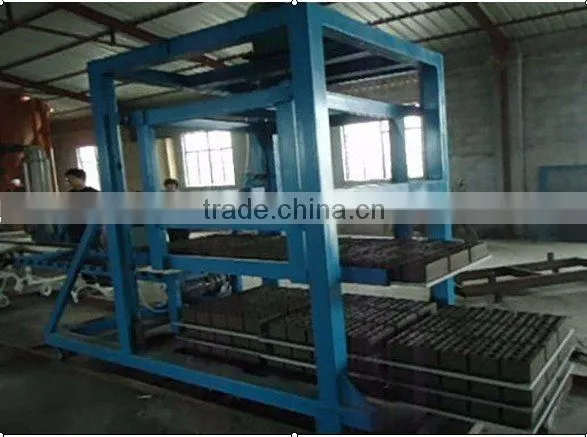

Stacking system is adopted simulative computer control, it stacks fast and credibly.
Dear customer, if you are interested in our block making machines, please kindly tell me the size of the block/brick/pavers you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
Update Date:2011-11-14 20:48:45
