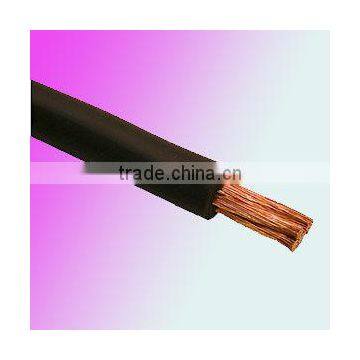

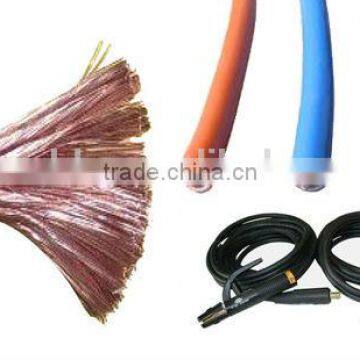

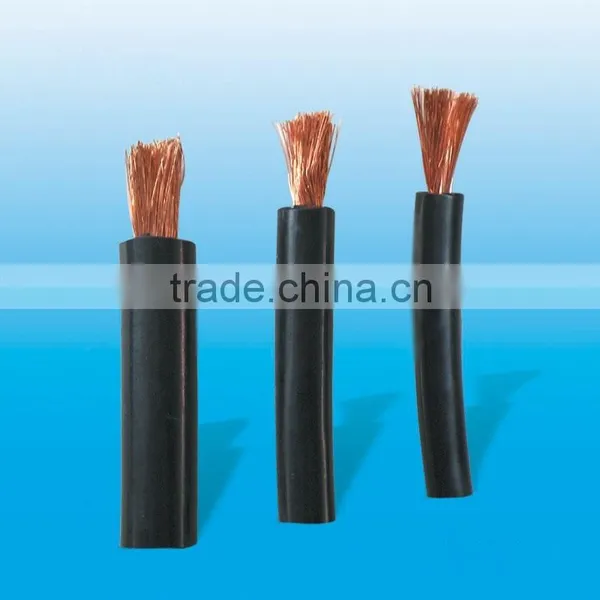

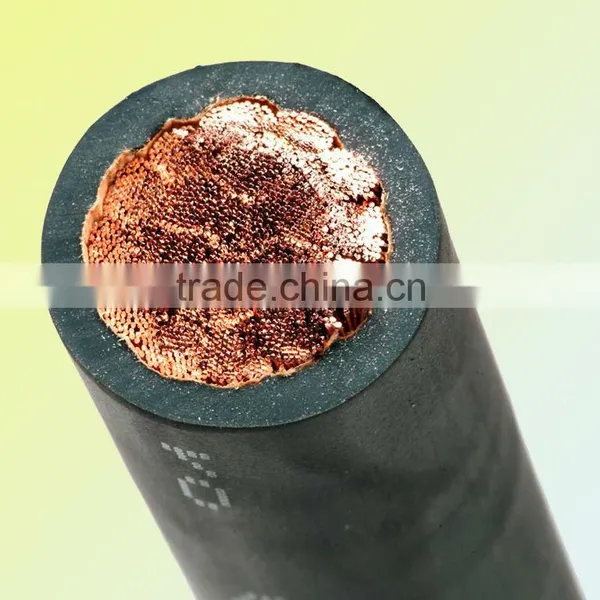

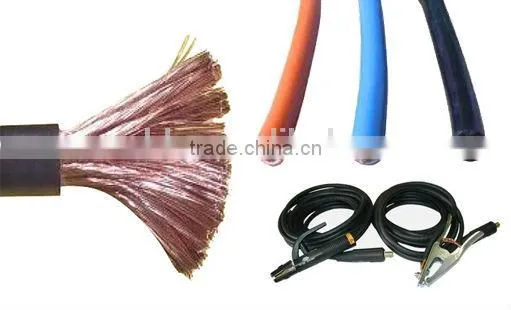

Copper Conductor Rubber Sheathed 450/750V Welding Cables

Name: Copper Conductor Rubber Sheathed 450/750V Welding Cables
Brand: sanhe
SKU: 127860091
Availability: InStock

Zhengzhou Sanhe Cable Co., Ltd.

US$ 199 - 3,000 MOQ: 2 Kilometers

Key Specifications

Place of Origin:

Henan, China

Brand Name:

sanhe

Model Number:

60245IEC81(YH),60245IEC82(YHF)

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name sanhe

Model Number 60245IEC81(YH),60245IEC82(YHF)

Conductor Material Copper

Insulation Material Rubber

Jacket Rubber

Number of Conductors single

Application welding machine

copper conductor rubber sheathed Welding Cables

1th. Service Condition

This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.

2th. Model, Names Main applications and Work In the Temperature

Model	Name	Main applications	Working temperature of core ≤⁰C
YH	Natural Rubber Sheath for Welding Cable	Always used indoor	65
YHF	Neoprene Rubber Sheath Welding Cable	Always used outdoor	65
YHF	Synthetic elastomer Sheath Welding Cable	Always used outdoor	65

3th. Standards: IEC60245

4th. Specifications, Size, Weight and Technical Data

Conductor Nominal Section (mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm2)		20oC Conductor Resistance≤(Ω/km)	Reference Weight(kg/km)
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Min	Max	20oC Conductor Resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.129	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74
